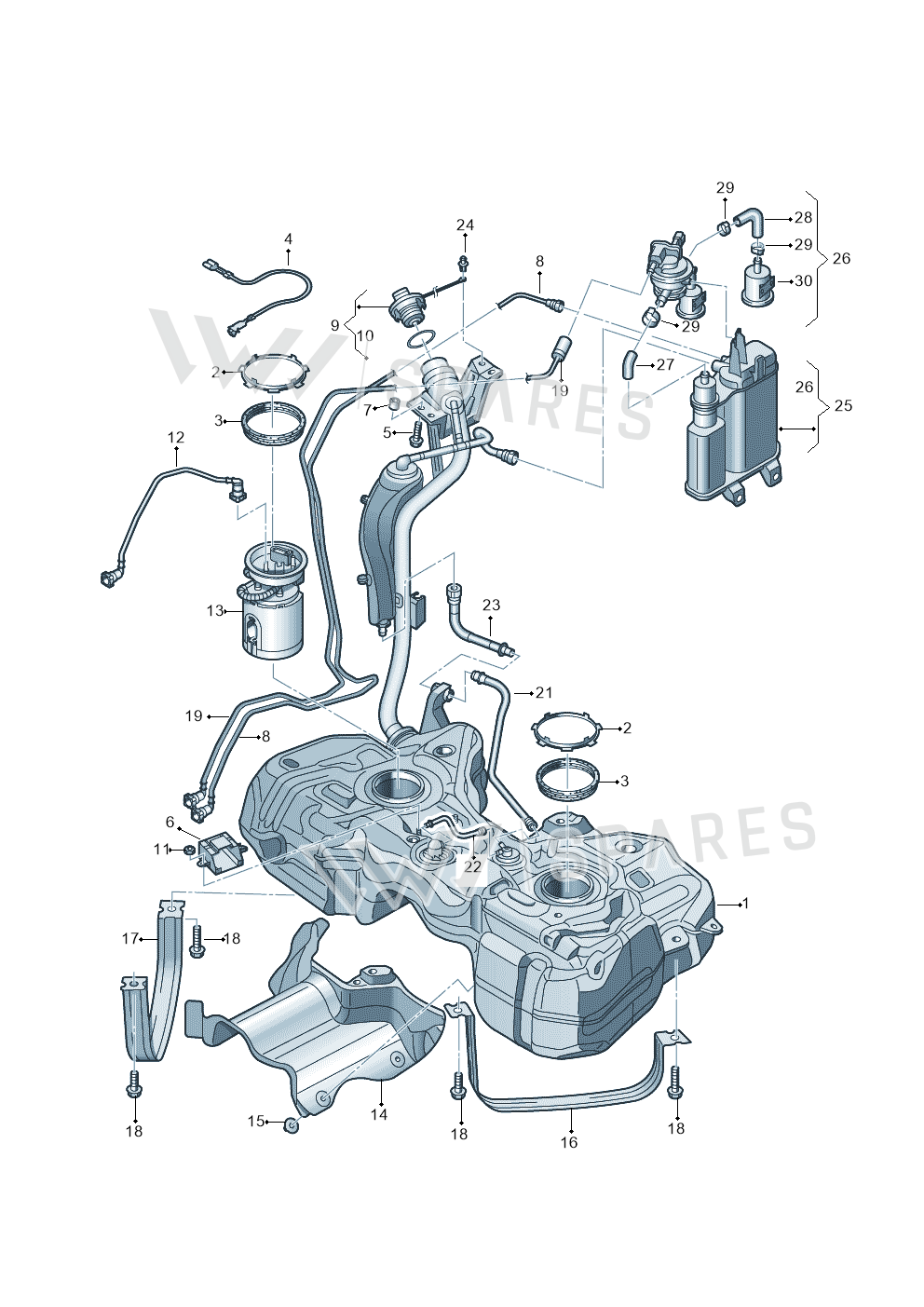

Fuel Tank exploded parts diagram — TIGUAN 08> · 2007-, position 1 — TIGUAN 08> · 2007- · position 1Full diagram ↓

5N0201060AR

5N0201060AR Fuel Tank

Name: 5N0201060AR Fuel Tank
Brand: Volkswagen
SKU: 5N0201060AR
Price: 1089.52 GBP
Availability: Discontinued

£1,089.52

£900.43 excl. VAT

Supersession road5 numbers since 2008

5N0201060AJ
Not stocked Apr 2008
5N0201060AR
Not stocked Feb 2018
You are here
5N0201060AT
Not stocked Feb 2011
5N0201060BA
Not stocked Jun 2014
5N0201060BF
Current number

5N0201060AJNot stocked
Apr 2008
5N0201060ARThis pageNot stocked
Feb 2018
5N0201060ATNot stocked
Feb 2011
5N0201060BANot stocked
Jun 2014
5N0201060BFCurrent number

Current part number5N0201060BFWhat the manufacturer supplies todayOrder

Availability: No longer supplied under this number

Quantity:

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Shipping details

Shipping weight: 11.18 kg
Shipping size (L × W × H): 127 × 107 × 57 cm
Customs (HS) code: 87089997

Parts diagram & fitment

1 vehicle

Fuel Tank — locate Fuel Tank in the official exploded view and explore the surrounding assembly.

Parts in this assembly25

Vehicle fitment table1

Europe (1)

Vehicle	Years	Pos.	Qty
TIGUAN 08>	2007-	1	1
