5N0201607A Extraction Unit With Metering Pump
- 5N0201607AThis pageNot stocked
Mar 2016 - 5N0201607GCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

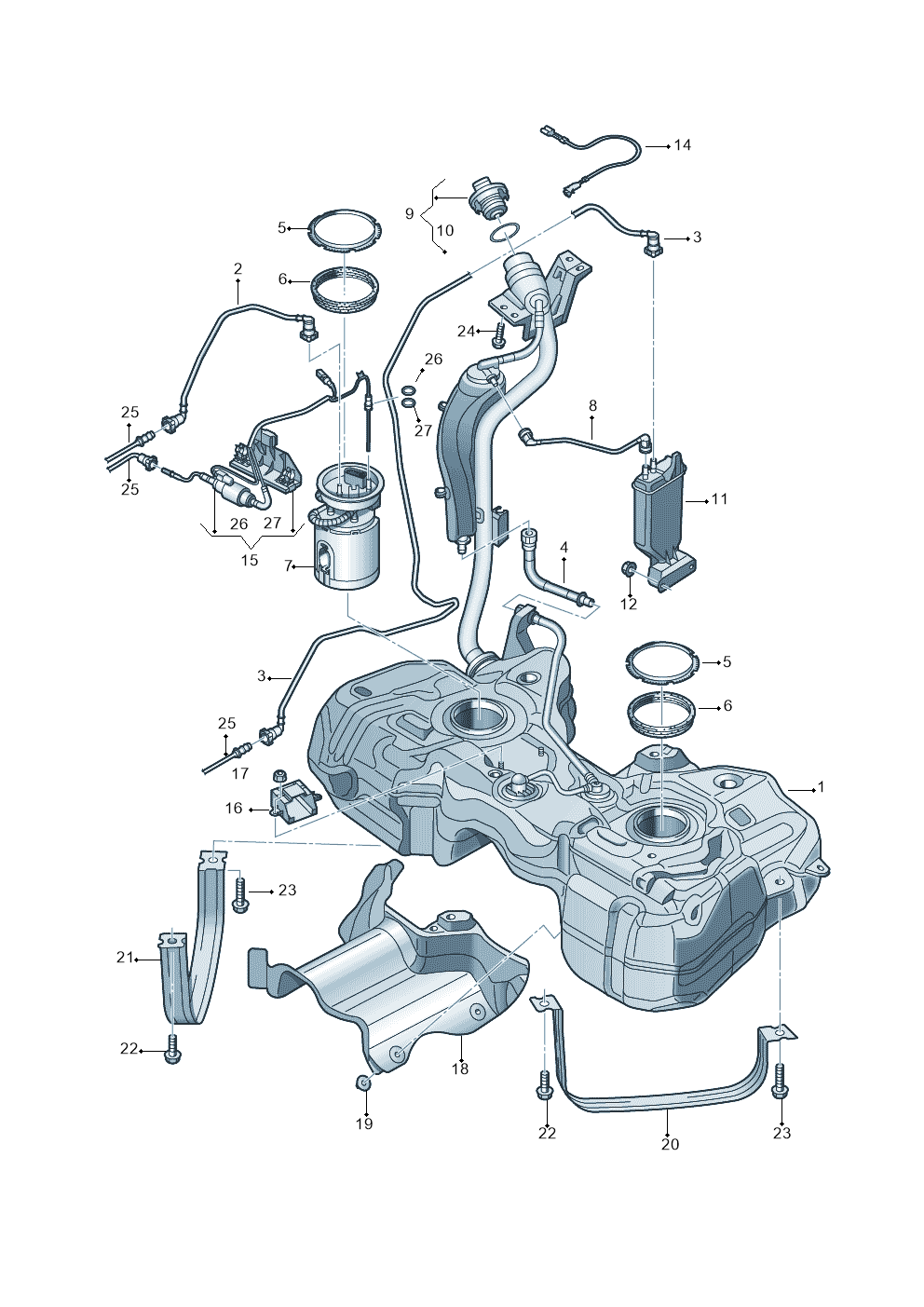

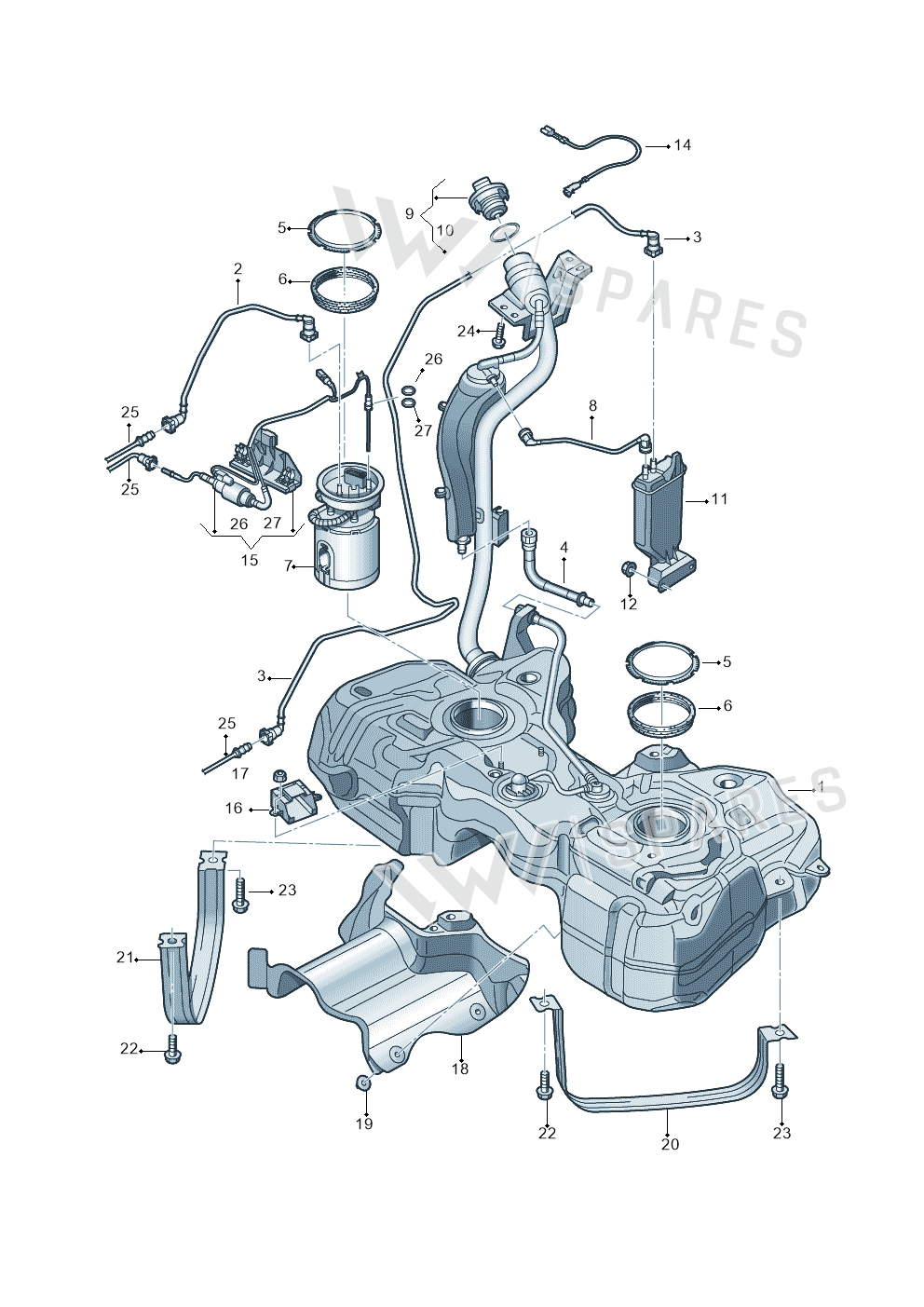

2 vehiclesExtraction Unit With Metering Pump — locate Extraction Unit With Metering Pump in the official exploded view and explore the surrounding assembly.
Parts in this assembly24
- 1Fuel Tank 5N0201060BG
- 2Fuel Line 5N0201293N
- 3Line 5N0201160K
- 4Line 5N0201993S
- 5Part 1K0201375
- 6Seal Ring 1K0919133D
- 8Pipe 5N0201931E
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 5N0201550C
- 10Seal Ring 1K0201557A
- 11Container 3C0201801E
- 12Collar Nut N01508210
- 14Line 1J0201142A
- 15Part 5N0201607G
- 16Retainer 5N0201292B
- 17Part N90947201
- 18Heat Sh 5N0201307F
- 19Part N91068501
- 20StrapLeft5N0201655A
- 21StrapRight5N0201656A
- 22Bolt N0195307
- 23Bolt N10240003
- 24Bolt N90693804
- 26Clamp N10203501
- 27Clamp N10198301
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. |
|---|---|---|
| Tiguan 4Motion | 2011-2018 | 15 |
| TIGUAN 08> | 2007- | 31, 5 |
Diagrams & fitment data powered by oemdiagrams.com
Extraction Unit With Metering Pump is fitted on: Tiguan 4Motion 2011-2018; TIGUAN 08> 2007-.
