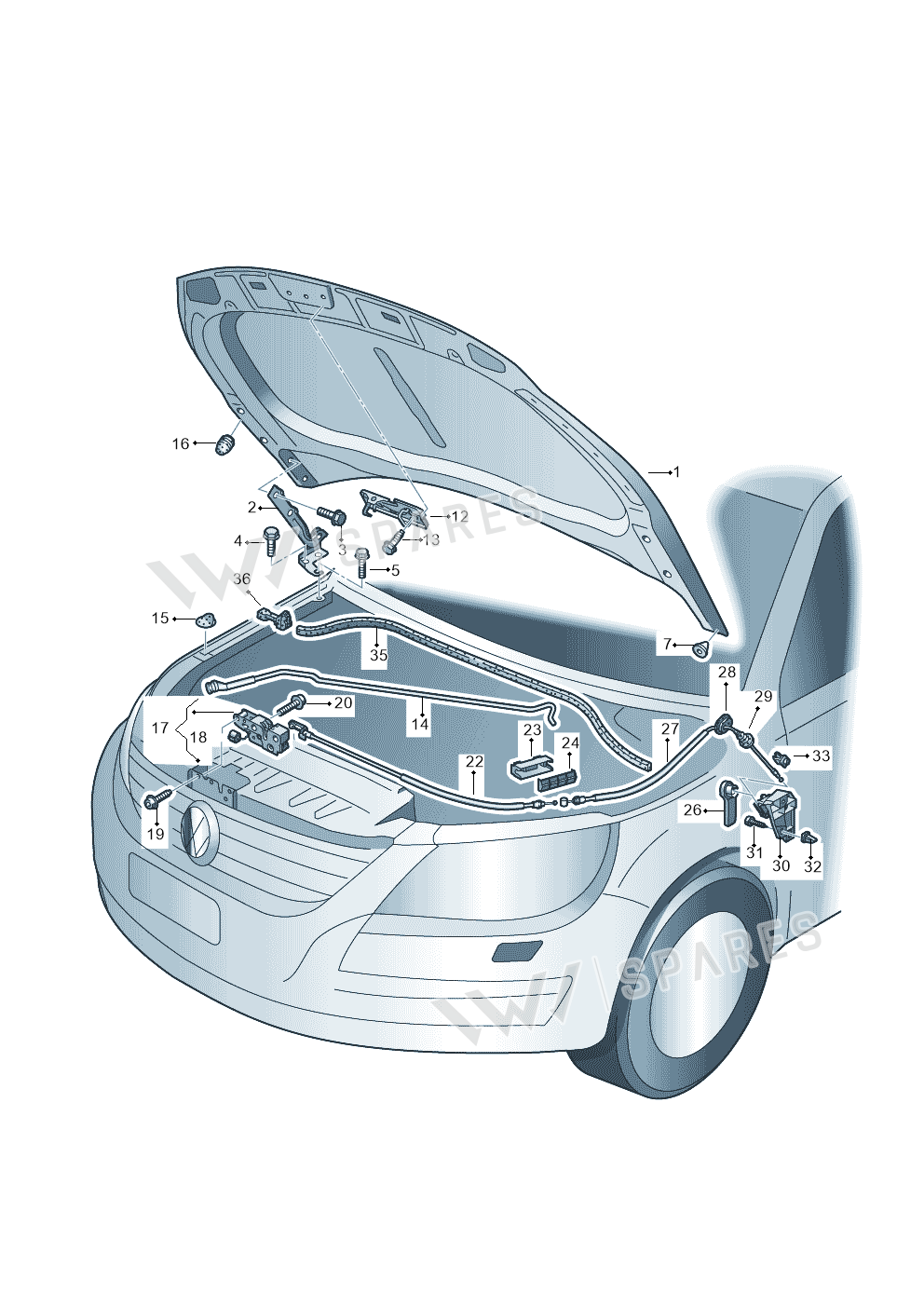

Bonnet Lock-Lower Part exploded parts diagram — TIGUAN 08> · 2007-, position 17 — TIGUAN 08> · 2007- · position 17Full diagram ↓

5N0823509A

5N0823509A Bonnet Lock-Lower Part

Name: 5N0823509A Bonnet Lock-Lower Part
Brand: Volkswagen
SKU: 5N0823509A
Price: 64.02 GBP
Availability: Discontinued

£64.02

£52.91 excl. VAT

Supersession roadoldest to newest

5N0823509A
Not stocked Nov 2012
You are here
5N0823509B
Not stocked Dec 2016
5N0823509C
Current number

5N0823509AThis pageNot stocked
Nov 2012
5N0823509BNot stocked
Dec 2016
5N0823509CCurrent number

Current part number5N0823509CWhat the manufacturer supplies todayOrder

Availability: No longer supplied under this number

Quantity:

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

1 vehicle

Bonnet Lock-lower Part — locate Bonnet Lock-Lower Part in the official exploded view and explore the surrounding assembly.

Parts in this assembly25

Vehicle fitment table1

Europe (1)

Vehicle	Years	Pos.	Qty
TIGUAN 08>	2007-	17	1
