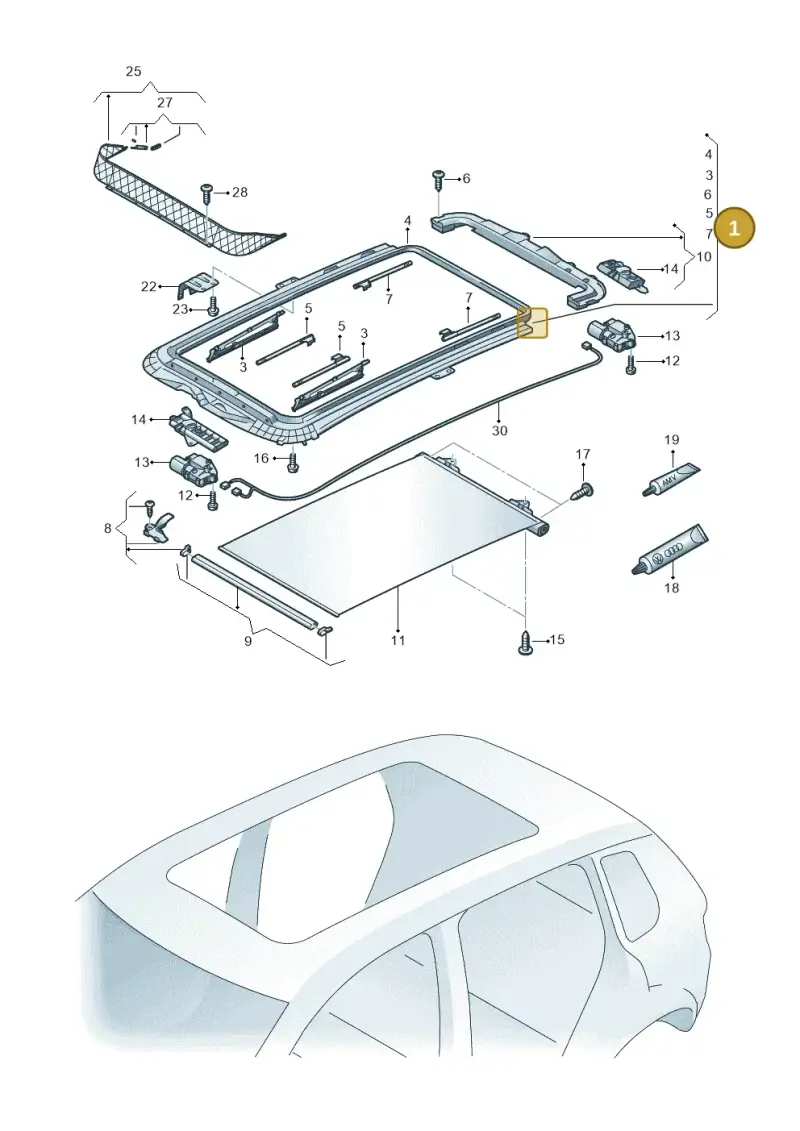

Number 1 marks the part’s position in this exploded view (SEAT Leon ST (2016-2020)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Volkswagen Frame with Sliding Tilt Actuator, part number 5N0877049E. Fits SEAT Leon ST (2016-2020), Volkswagen Tiguan (2011-2018). Shown as position 1 in the body diagram 634877100.
Catalogue entry: FRAME; ROOF.
Technical details
- Category
- Doors & Windows
- Diagram sheet
- SEAT 634877100, position 1
- ETKA group
- 8 / 77 (877)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesFrame With Sliding Tilt Actuator — locate 5N0877049E Volkswagen Frame with Sliding Tilt Actuator in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Part 5N0877049B
- 3Slide Mechanism 1K9898738B
- 3Slide Mechanism 1K9898738A
- 5Cables 1K9898870
- 6Bolts 8R0898057
- 7Cables 1K9898870A
- 8Glidepiece 1K9898912A
- 8Glidepiece 1K9898912B
- 9Part 1K9898921A
- 10Repair Kit 5N0898259A
- 11Blind 1K9877307B
- 11Blind 1K9877307C
- 11Blind 1K9877307D
- 12Bolt N90884801
- 13Engine 7N0959591B
- 13Engine 8R0959591A
- 14Fixing Set 1K9898302
- 14Repair KitLeft5N0898307
- 14Repair KitRight5N0898308
- 16Bolt N91166401
- 181c Adhesiv D172090A2
- 19Paste G060751A2
- 22ConsoleLeft5N0817215A
- 22ConsoleRight5N0817216A
- 23Bolt N90958902
- 25Deflector 1K9877651
- 25Deflector 7N0877651A
- 27Bearing 1T0898671
- 27Clip 4L0898671A
- 27Bearing 4L0898671B
- 28Screw N90963202
- 30Wiring Set 3AF971648
Compatible / alternative parts(12)
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. |
|---|---|---|
| Leon ST Stylance | 2016-2020 | 1 |
| Tiguan 4Motion | 2011-2018 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
5N0877049E Volkswagen Frame with Sliding Tilt Actuator is fitted on: Leon ST Stylance 2016-2020; Tiguan 4Motion 2011-2018.
