5N0885141L Seat And Backrest Frame
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 33 kg
- Shipping size (L × W × H)
- 72 × 66 × 30 cm
- Customs (HS) code
- 94019990
Parts diagram & fitment

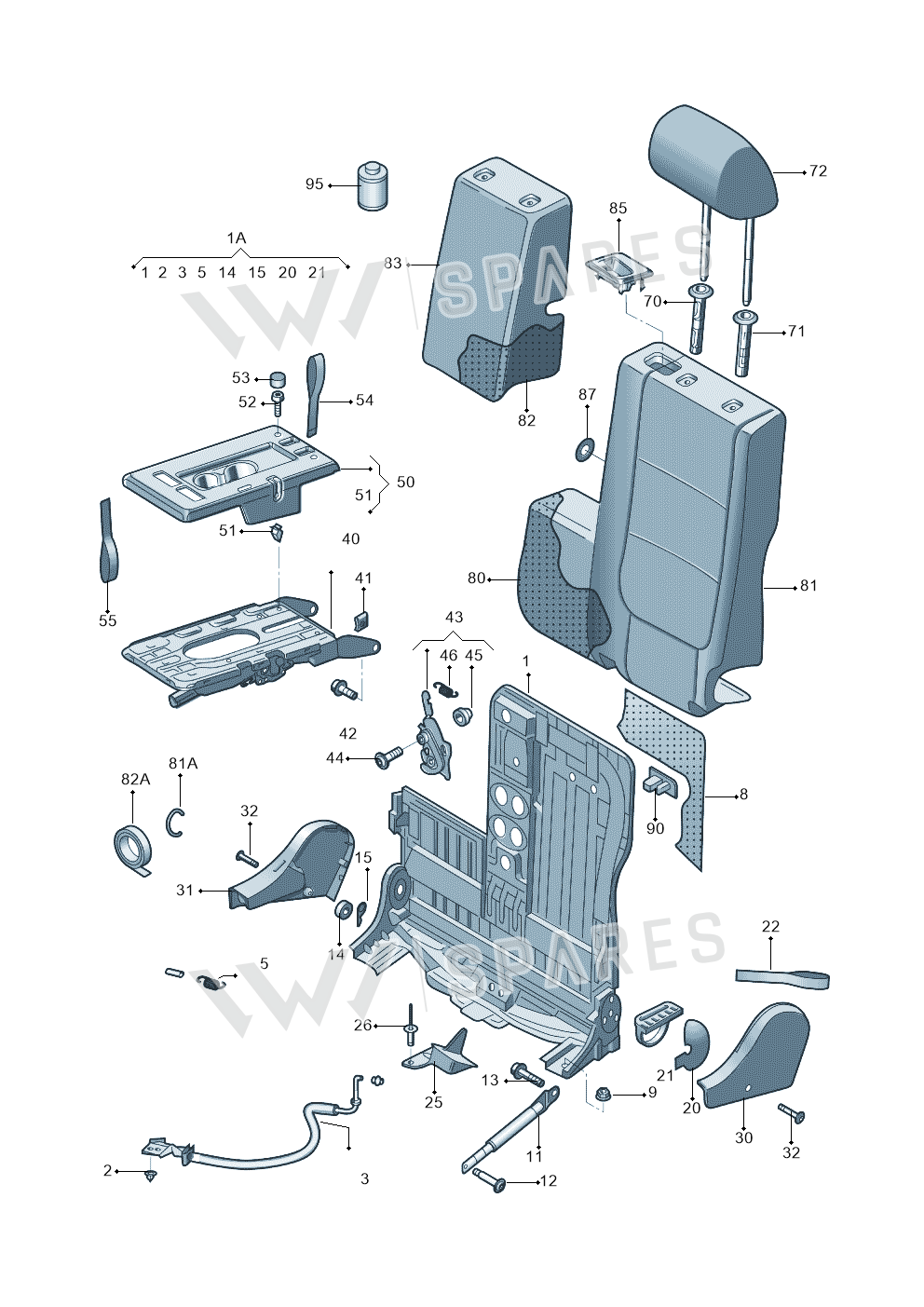

1 vehicleSeat And Backrest Frame — locate Seat And Backrest Frame in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly48
- 1Frame-backLeft5N0885501F
- 1ASeat Frame 5ND885141C
- 2Pop Rivet 1K0885667D
- 3Cable 1K0885343H
- 5Spring 1K0886259A
- 8TrimLeft5M0885753
- 8TrimLeft5N0885753
- 9Collar Nut WHT000741
- 11Pull RodLeft1K0886683C
- 12Bolt N90842903
- 13Screw N10622501
- 14Roller 1K0886311B
- 15Clip 1K0885767B
- 20PartLeft1K0885561H
- 21Guide 1K0885969A
- 22Loop 5M0885093F
- 30PartLeft5M0885739
- 31Part 5M0885934A
- 32Bolt N10686101
- 40Backrest 1K0885209K
- 40Backrest 1K0885209J
- 41Clip 1K0885767
- 42Bolt N91057901
- 43Lock 1K0885297E
- 44Bolt N10451405
- 45Buffer 1K0885872D
- 46Spring 1K0886259
- 50Stow Comp 5M0885977E
- 50Stow Comp 5ND885977A
- 50Stow Comp 5ND885977B
- 50Stow Comp 5M0885977C
- 51Clip 4A0867276
- 52Bolt N10604602
- 53Bungs 5M0885397
- 54Loop 5M0885093E
- 55Loop 5M0885093B
- 70Guide 5ND881920
- 70Guide 5ND881920B
- 70Guide 1KD881920
- 71Guide 5ND881920A
- 71Guide 1KD881920A
- 72Headrest 5ND885901A
- 72Headrest 5ND885901C
- 72Headrest 5ND885901E
- 72Headrest 5ND885902
- 72Headrest 5ND885902A
- 72Headrest 5ND885902C
- 72Headrest 5ND885902E
Vehicle fitment table1
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Tiguan | 2009-2019 | 1A | 1 | 5KN |
Diagrams & fitment data powered by oemdiagrams.com
Seat And Backrest Frame is fitted on: Tiguan 2009-2019.
