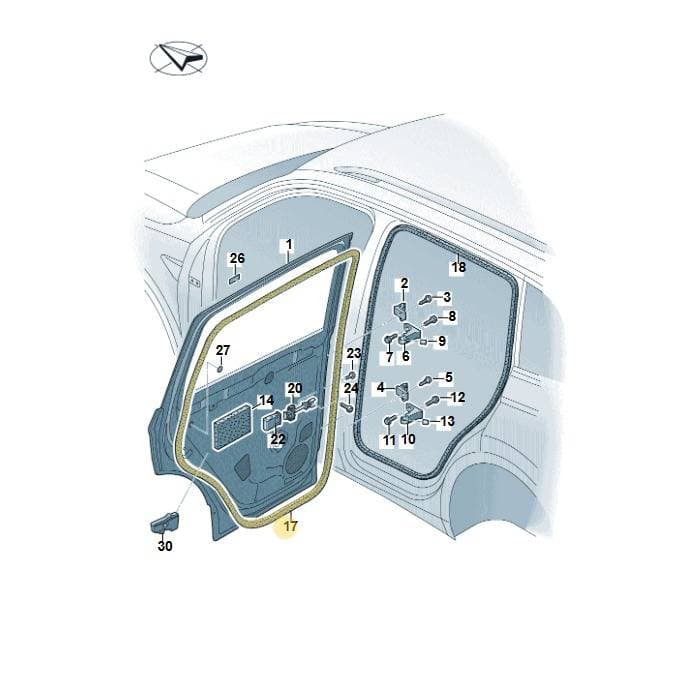

Number 17 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Door Seal, part number 5NA839701A5AP. This seal is located on the rear door assembly, providing weatherproofing and noise reduction. It is finished in black with the 5AP color code. Genuine OEM seals are manufactured with precise dimensions and material properties to maintain factory-level weather protection and durability.
Technical details
- Category
- Doors & Windows
- Country of origin
- Germany
- Customs (HS) code
- 40169300
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 48 × 47 × 6 cm
- Shipping weight
- 0.41 kg
Parts diagram & fitment
1 vehicleBlack — locate 5NA839701A5AP Volkswagen Door Seal | Black in the official exploded view and explore the surrounding assembly.
Parts in this assembly(19)
- 1PartRight5NA833056J
- 1PartLeft5NA833055J
- 2HingeRight8X4833408B
- 2HingeLeft8X4833407B
- 3Screw N91203801
- 4HingeRight8X4833406B
- 4HingeLeft8X4833405B
- 6HingeRight8V5833404B
- 6HingeLeft8V5833403B
- 7Bolt N91205602
- 9Part 8T0837947
- 17Door SealRight5NA839702A
- 17Door SealLeft5NA839701A
- 18Door SealRight5NA867914C
- 18Door SealLeft5NA867913C
- 20Door Catch 5NA839249
- 22Cover 5NA839267A
- 23Bolt WHT002109
- 24Bolt N90365913
Diagrams & fitment data powered by oemdiagrams.com
5NA839701A5AP Volkswagen Door Seal | Black is fitted on: Tiguan 2.0 4Motion 2016-2022.
