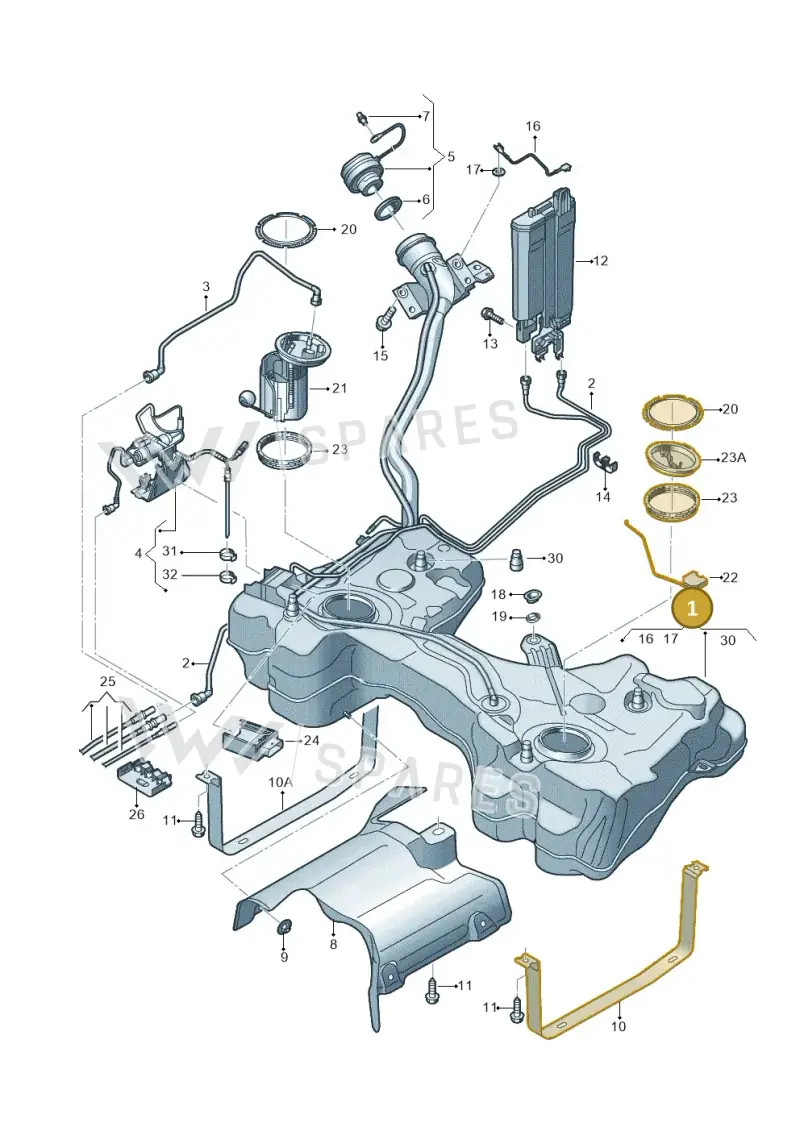

Number 1 marks the part’s position in the exploded view.
Product overview
5Q0201055BE Genuine OEM Volkswagen Fuel Lines Set, part number 5Q0200059LL. This set transports fuel from the tank to the engine, ensuring consistent and reliable fuel supply. It is positioned as part 1 in the diagram. Genuine OEM fuel lines are manufactured to exact specifications, ensuring proper flow rates and preventing leaks, which is critical for engine performance and safety.
Technical details
- Category
- Fuel System
- Country of origin
- Spain
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 125 × 80 × 106 cm
- Shipping weight
- 9.56 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
6 vehiclesFuel Tank — locate 5Q0201055BE 5Q0200059LL Volkswagen Fuel Lines Set | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 5Q0201055BG — the later replacement part.
This part is marked discontinued by the manufacturer (since 2017-05-01); contact us to check current availability.
Parts in this assembly46
- 1Container 5Q0201055AC
- 1Container 5Q0201055AQ
- 1Container 5Q0201055CN
- 1Container 5Q0201055DE
- 2Module 5Q0919087AH
- 3Sender 5Q0919673AK
- 3Sender 5Q0919673F
- 4Sender 5Q0919673AC
- 4Sender 5Q0919673H
- 5Seal Ring 1J0919133B
- 5Seal Ring 1K0919133D
- 6Part 1K0201375
- 7Flange 5Q0919679
- 8Line 5Q0201931AB
- 8Line 5Q0201931G
- 8Line 5Q0201931R
- 8Line 5Q0201931N
- 10Fuel Line 5Q0201293AN
- 10Fuel Line 5Q0201293E
- 11Heat Sh 5Q0201307S
- 12Part N91068501
- 13Metering 5Q0201607L
- 14Strap 5Q0201653A
- 15Strap 5Q0201654A
- 16Bush 5Q0201693
- 17Bolt N0195308
- 18Control Unit 5Q0906093
- 19Rubber Bush 5Q0201840
- 22Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550N
- 22Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550H
- 24Bolt N90693804
- 25Clip 1H0201449C
- 27Prot Plate 5Q0201974E
- 28Bracket 5Q0201519
- 30Control Unit 8K0906651C
- 31Support 5Q0201898
- 32Bolt N10471803
- 33Clip 5Q0201250K
- 40Wiring Set 5Q0971106D
- 40Wiring Set 5Q0971106
- 41Part 4F0973705
- 42Part 6N0973805
- 50Loom 5Q0971727D
- 51Part 6Q0973853
- 52Part 1J0973752
- 53Part 6N0973755
Compatible / alternative parts(3)
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A3 Sportback | 2016-2020 | 1 | 1 | 1E1 | |
| Golf Estate | 2013-2017 | 1 | 1 | ||
| Golf 1.4 BlueMotion | 2012-2017 | 1 | 1 | ||
| Octavia | 2012-2017 | 1 | 1 | ||
| Audi A3 Sportback | 2012-2016 | 1 | |||
| Leon ST Stylance | 2012-2016 | 1 | 1 |
