5Q0201060BH Fuel Tank
- 5Q0201060BHThis pageNot stocked
Sep 2019 - 5Q0201060CRCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

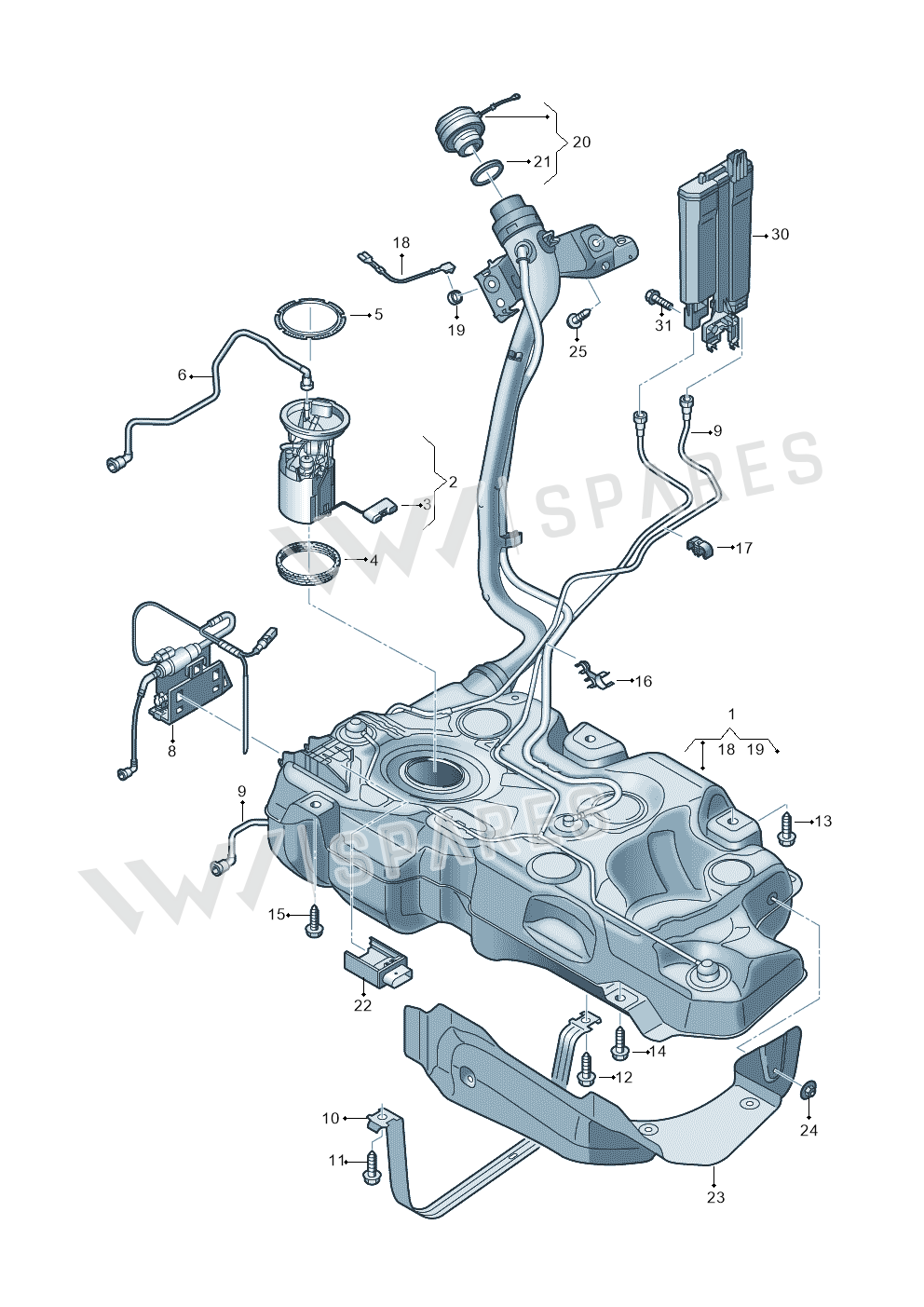

4 vehiclesFuel Tank — locate Fuel Tank in the official exploded view and explore the surrounding assembly.
Parts in this assembly37
- 1Fuel Tank 5Q0201060CR
- 1Fuel Tank 5Q0201060AT
- 1Fuel Tank 5Q0201060CH
- 1Fuel Tank 5Q0201060GE
- 1Fuel Tank 5Q0201060HD
- 2Deliv Unit 5Q0919051BN
- 2Deliv Unit 5Q0919051BH
- 2Deliv Unit 5WA919051A
- 2Deliv Unit 5WA919051B
- 2Deliv Unit 5Q0919051BF
- 3Sender 5Q0919673AJ
- 3Sender 5Q0919673C
- 3Sender 5WA919673
- 3Sender 5WA919673B
- 4Seal Ring 1J0919133B
- 4Seal Ring 1K0919133D
- 5Part 1K0201375
- 6Fuel Line 5Q0201293AG
- 6Fuel Line 5Q0201293R
- 8Metering 5Q0201607J
- 9Line 5Q0201160F
- 9Line 5Q0201160P
- 9Line 5Q0201160BC
- 10Strap 5Q0201656F
- 11Bolt N91229601
- 16Clip 5Q0201250G
- 16Clip 5Q0201250B
- 17Clip 5Q0201449A
- 17Clip 1H0201449C
- 20Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550H
- 21Seal Ring 1K0201557A
- 22Control Unit 5Q0906093
- 23Heat Sh 5Q0201307P
- 23Heat Sh 5Q0201307N
- 23Heat Sh 5Q0201307AE
- 24Part N91068501
- 25Bolt N90693804
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A3 Sportback | 2016-2020 | 1 | 1 | ||
| Golf 1.4 BlueMotion | 2012-2017 | 1 | 1 | D | |
| Octavia | 2012-2017 | 1 | 1 | D | |
| Leon ST Stylance | 2012-2016 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Fuel Tank is fitted on: Audi A3 Sportback 2016-2020; Golf 1.4 BlueMotion 2012-2017; Octavia 2012-2017; Leon ST Stylance 2012-2016.
