5Q0201307D Heat Sh
- 5Q0201307DThis pageNot stocked
Feb 2015 - 5Q0201307SCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

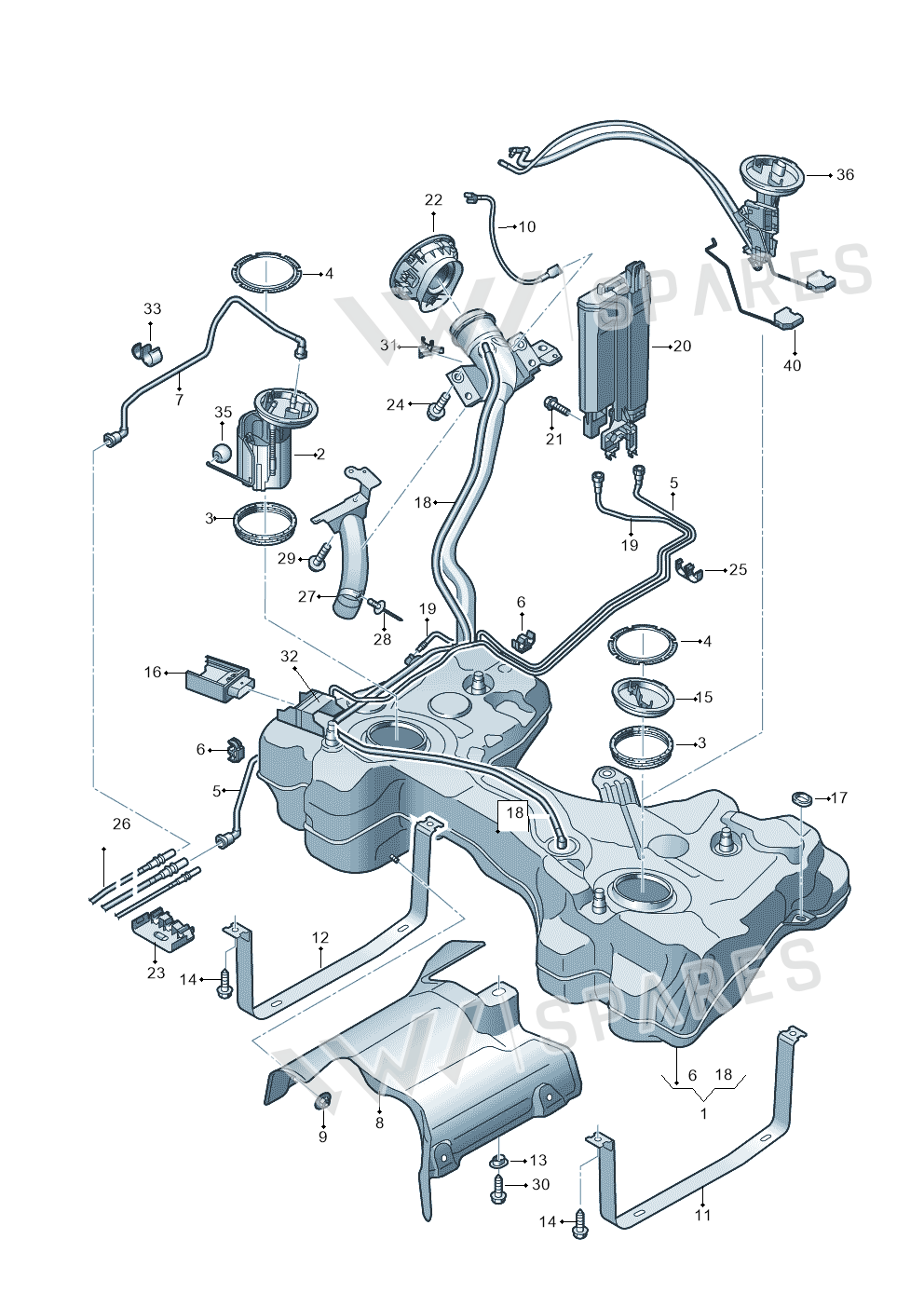

7 vehiclesHeat Sh — locate Heat Sh in the official exploded view and explore the surrounding assembly.
Parts in this assembly35
- 1Container 8S0201060AE
- 1Container 8S0201060H
- 1Container 8S0201060S
- 1Container 8S0201060B
- 2Module 5Q0919087AH
- 2Module 5Q0919087AQ
- 3Seal Ring 1K0919133D
- 4Part 1K0201375
- 4Prot Plate 8S0201974
- 5Line 8S0201931
- 7Fuel Line 5Q0201293E
- 7Lead 5WA201293E
- 8Heat Sh 5Q0201307S
- 8Heat Sh 5WA201307B
- 9Part N91068501
- 10Line 1J0201142A
- 11StrapLeft8S0201653
- 12StrapRight8S0201654
- 13Bush 5Q0201693
- 14Bolt N91229601
- 15Flange 5Q0919679
- 16Control Unit 5Q0906093
- 16Control Unit 5Q0906093C
- 17Rubber Bush 5Q0201840
- 21Bolt N10240003
- 23Clip 5Q0201449E
- 24Bolt N90693804
- 25Clip 1H0201449C
- 28Pop Rivet N90994201
- 29Bolt N10471801
- 30Bolt N0195308
- 31Bracket 5Q0201519
- 35SenderRight5Q0919673AK
- 40SenderLeft5Q0919673AC
- 40SenderLeft5Q0919673H
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi TTS Coupe 2.0 | 2014-2023 | 8 | 1 | |
| Golf Estate | 2013-2017 | 8 | 1 | |
| Audi A3 Cab. 1.4 | 2013-2016 | 8 | 1 | |
| Golf 1.4 BlueMotion | 2012-2017 | 8 | 1 | |
| Octavia | 2012-2017 | 8 | 1 | |
| Audi A3 Sportback | 2012-2016 | 8 | 1 | |
| Leon ST Stylance | 2012-2016 | 8 | 1 | 1X1 |
Diagrams & fitment data powered by oemdiagrams.com
Heat Sh is fitted on: Audi TTS Coupe 2.0 2014-2023; Golf Estate 2013-2017; Audi A3 Cab. 1.4 2013-2016; Golf 1.4 BlueMotion 2012-2017; Octavia 2012-2017; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016.
