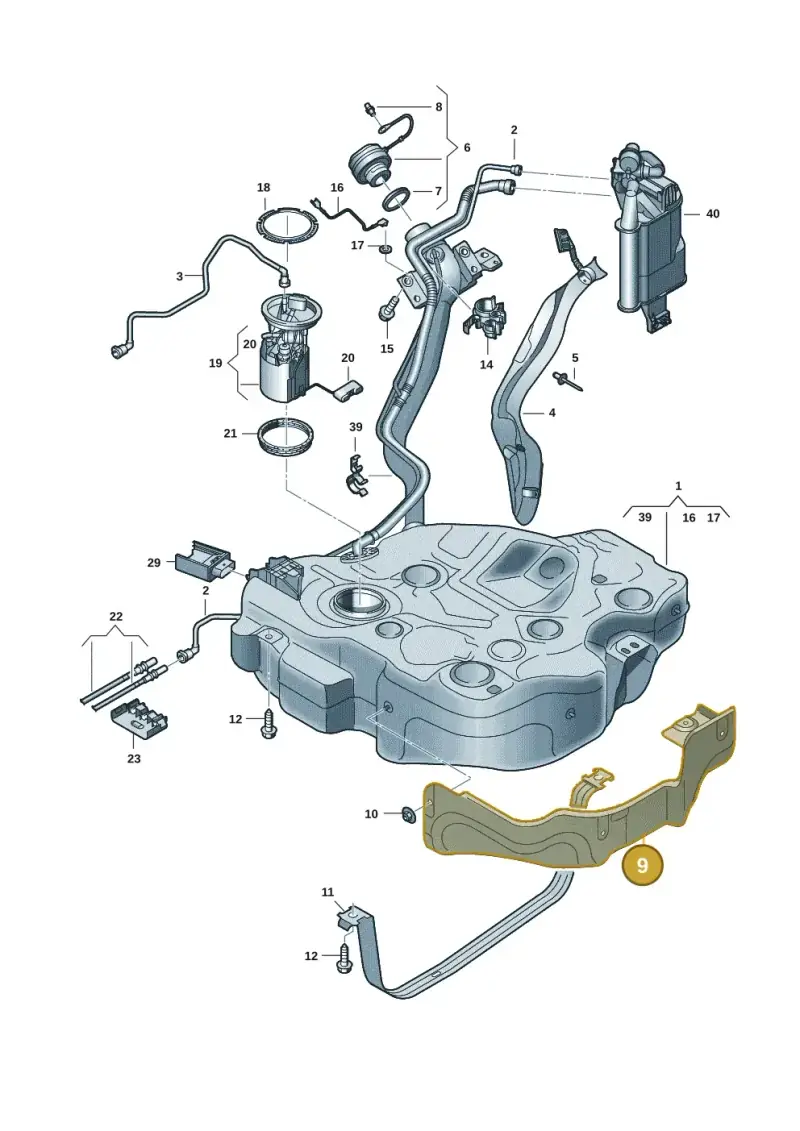

Number 9 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Shield Plate, part number 5Q0201307R. This heat shield plate protects surrounding components from excessive heat generated by the fuel tank or exhaust system. It is located as part number 9 in the diagram. Ensures optimal thermal management and component longevity.
Catalogue entry: HEAT SH..
Fitted with: 5WA201307B HEAT SH., N91068501 panel nut, N91229601 BOLT.
Technical details
- Category
- Exhaust
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 92.3 × 35 × 16.5 cm
- Shipping weight
- 0.44 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
10 vehiclesHeat Sh — locate 5Q0201307R Volkswagen Heat Shield Plate | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly22
- 1Container 5Q0201055CC
- 2Line 5Q0201160AS
- 3Fuel Line 5Q0201293BA
- 4Prot Plate 5WA201974
- 4Prot Plate 5Q0201974L
- 4APop Rivet N90994201
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550L
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550AT
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550K
- 6Seal Ring 5Q0201557
- 7Clip 1J0201250
- 9Part N91068501
- 10Strap 5Q0201656G
- 11Bolt N91229601
- 12Binder 4A0820199
- 13Bracket 5Q0201519
- 14Clip 5Q0201250J
- 14ABracket N10513801
- 15Bolt N90693804
- 16Line 1J0201142A
- 17Bush 1J0201048C
- 18Part 1K0201375
Vehicle fitment table10
Europe (8)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf 2.0 BlueMotion | 2019-2024 | 8 | 1 | ||
| Audi A3 Sportback | 2019-2021 | 8 | 1 | ||
| golf 2.0 | 2016-2020 | 8 | 1 | ||
| Audi A3 Sportback | 2016-2020 | 8 | 1 | ||
| Audi A3 Cabrio | 2016-2020 | 8 | 1 | ||
| Golf 1.4 BlueMotion | 2014-2017 | 8 | 1 | ||
| Golf Estate 1.4 | 2014-2017 | 8 | 1 | ||
| Audi A3 Cab. 1.4 | 2013-2016 | 8 | 1 | 1E7 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Jetta 1.4 | 2017-2024 | 8 | 1 | ||
| POLO HATCH "ZA"06> | 2005- | 8 | 1 |
