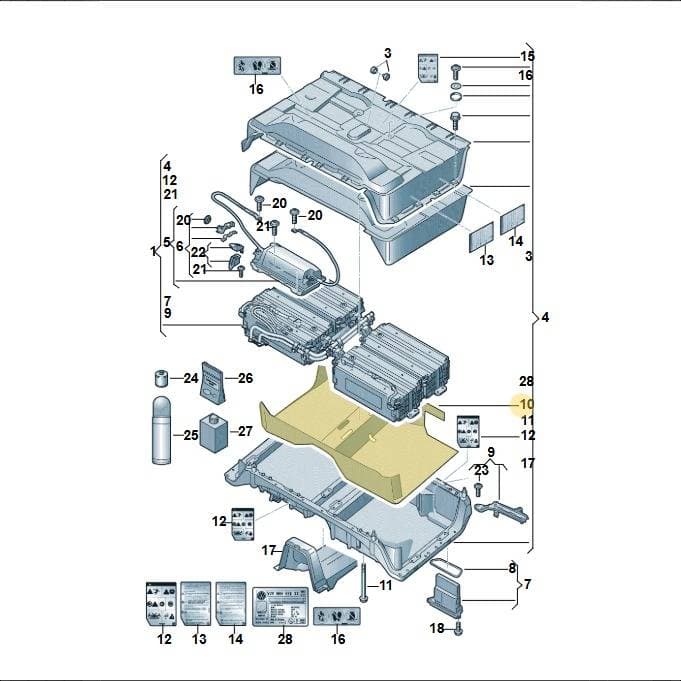

Number 10 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Protection Sleeve, part number 5Q0804160. This sleeve is designed to insulate sensitive components from high temperatures generated by exhaust systems or other hot parts. It is located at position 10 in the diagram. Genuine OEM parts provide the correct thermal resistance and fit for reliable protection.
Technical details
- Category
- Battery & Charging
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 106.5 × 81.5 × 3.5 cm
- Shipping weight
- 0.23 kg

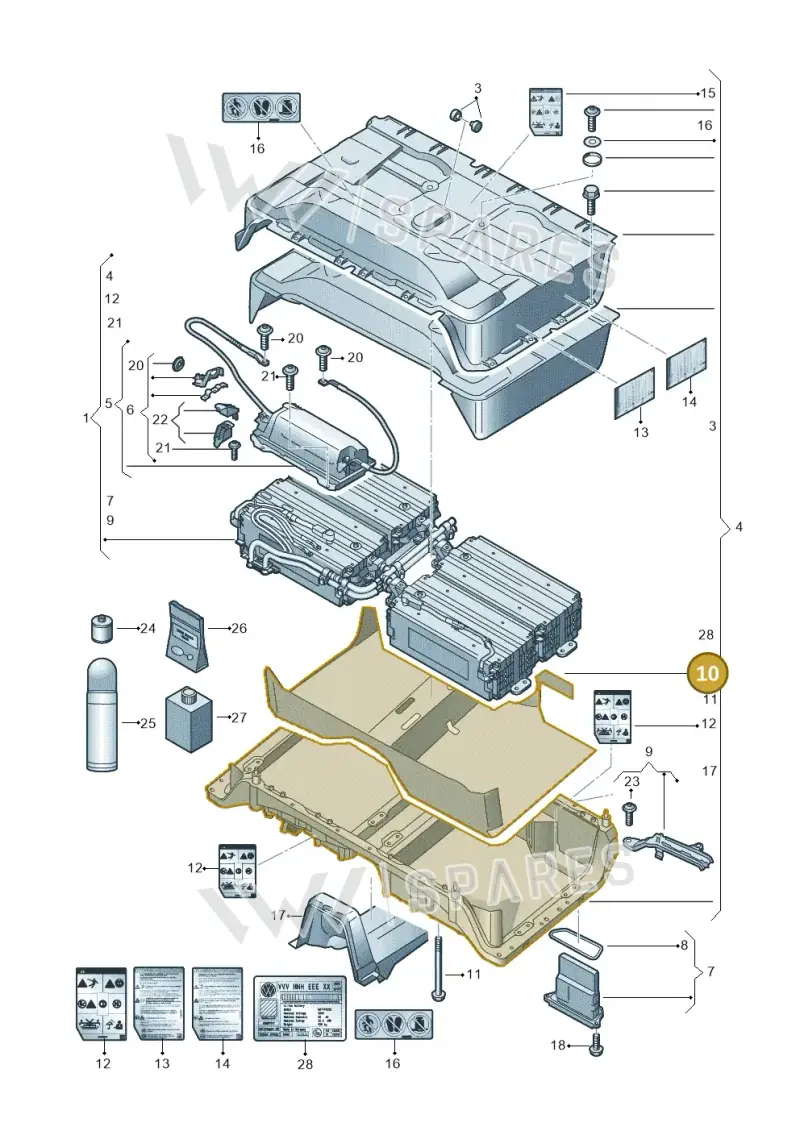

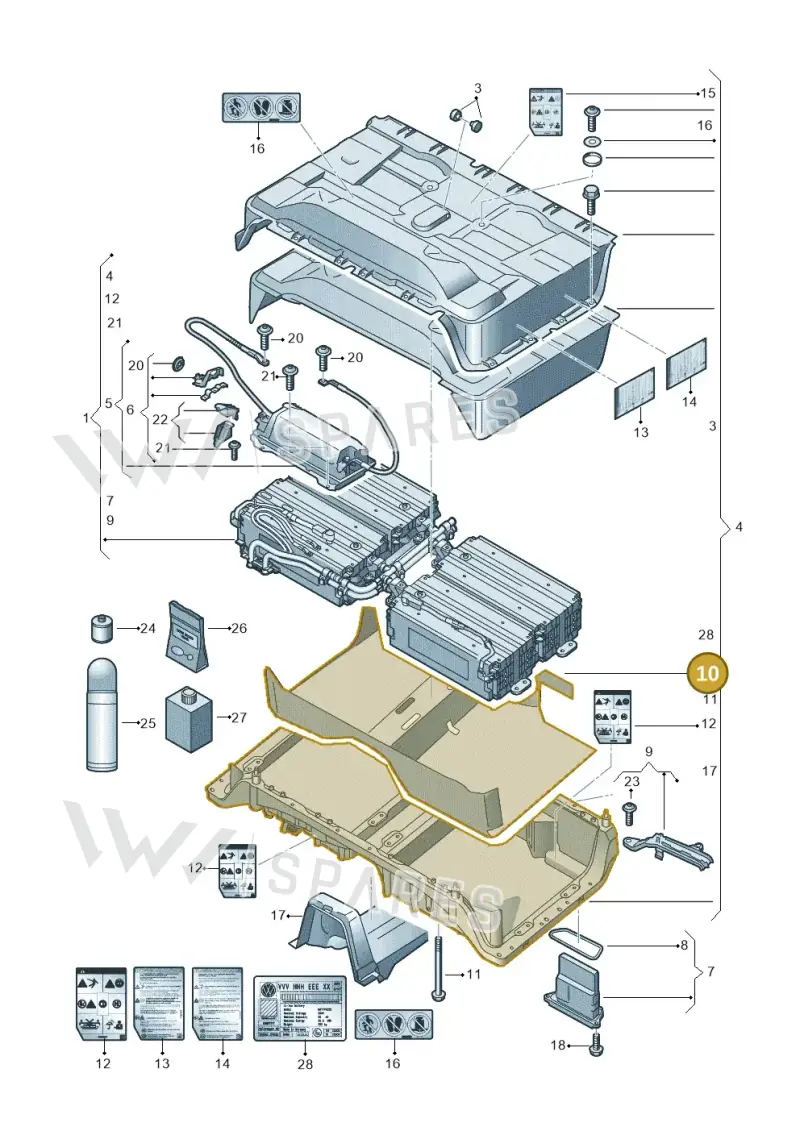

Parts diagram & fitment
4 vehiclesHeat Insulation — locate 5Q0804160 Volkswagen Heat Protection Sleeve | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by D190000M2 — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(23)
- 3Repair Kit 5Q0998841B
- 4Part 5Q0998844
- 5Control Un 5Q0998250C
- 6For Airbag: 5Q0998250
- 7Control Unit 5Q0915182E
- 8Seal 5Q0915433
- 9Support 5Q0915345
- 11Screw N91233701
- 12Sign 12E010001B
- 13Warning Sign 12E010006
- 14Warning Sign 12E010006A
- 15Warning Sign 12E010006Q
- 16Warning Sign 12E010849F
- 18Bolt N10632102
- 20For Airbag: 5Q0998215A
- 21For Airbag: 5Q0998215
- 22For Airbag: 5Q0998251
- 24Part D181220A1
- 25Cleaner D00940104
- 25Preservat D329215M1
- 25Adhesive D190000M2
- 26Applicator D00950025
- 27Bondagent D355205A2
Diagrams & fitment data powered by oemdiagrams.com
5Q0804160 Volkswagen Heat Protection Sleeve | Genuine OEM is fitted on: Audi A3 Sportback 2012-2016; Audi A3 Sportback 2016-2020; Golf 1.4 BlueMotion 2012-2017; golf 2.0 2016-2020.
