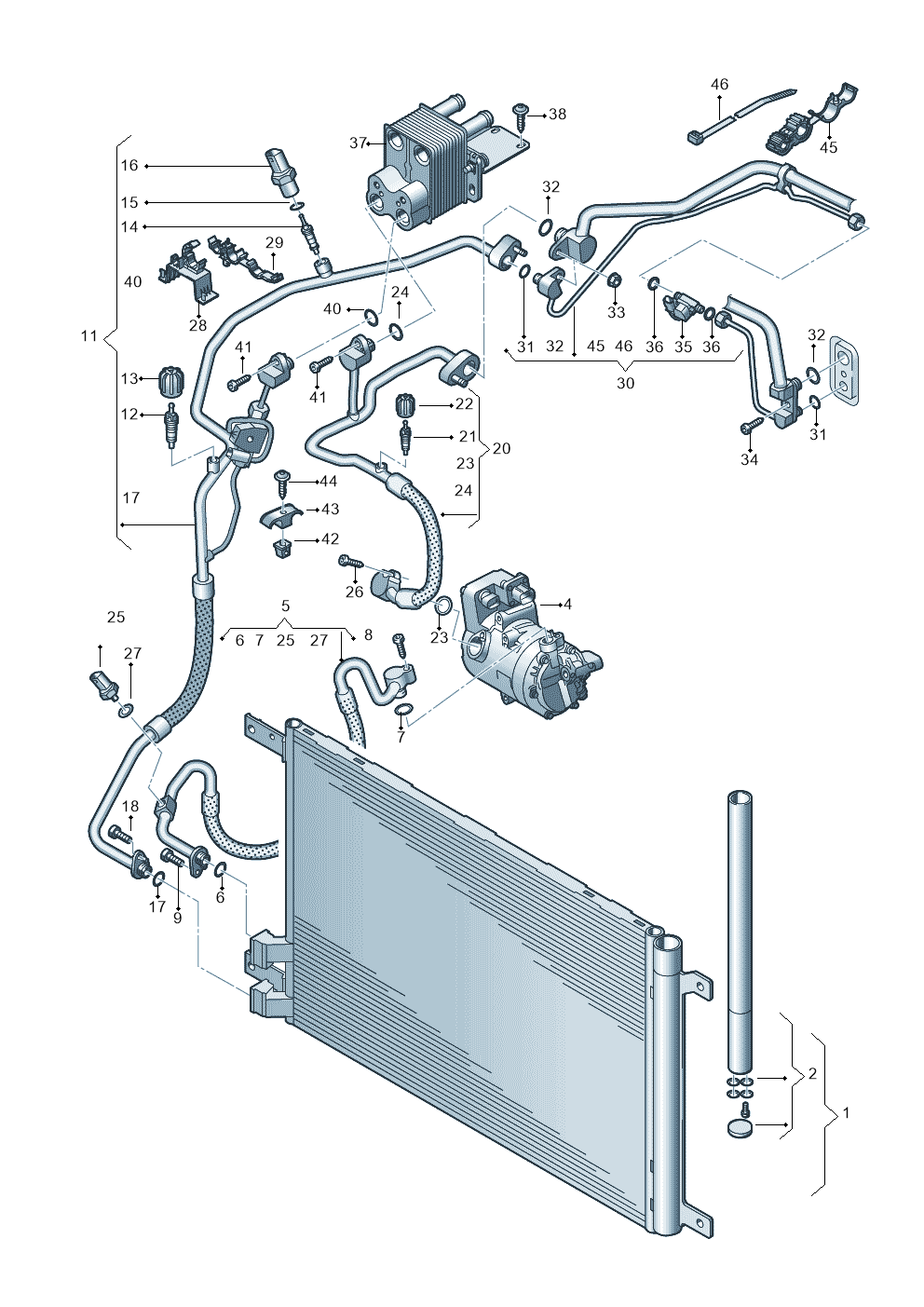

A C Condenser With Fluid Reservoir exploded parts diagram — Audi A3 Sportback · 2016-2020, position 1
Exploded view
Audi A3 Sportback · 2016-2020 · position 1Full diagram ↓
5Q0816411AN

5Q0816411AN A C Condenser With Fluid Reservoir

£258.31
£213.48 excl. VAT
Supersession road5 numbers since 2014
  1. 5Q0816411NNot stocked
    Jul 2014
  2. 5Q0816411AJNot stocked
    Jul 2015
  3. 5Q0816411ANThis pageNot stocked
    May 2017
  4. 5Q0816411BFSuperseded
    Sep 2023
  5. 5Q0816411BECurrent number
Current part number5Q0816411BEWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Shipping details

Shipping weight
1.77 kg
Shipping size (L × W × H)
71.5 × 40 × 4.5 cm
Customs (HS) code
84159000

Parts diagram & fitment

8 vehicles

A C Condenser With Fluid Reservoir — locate A C Condenser With Fluid Reservoir in the official exploded view and explore the surrounding assembly.

Parts in this assembly48
Vehicle fitment table8

Europe (7)

VehicleYearsPos.QtyRemarkPR
Audi A3 Sportback2016-202011
Audi A3 Cabrio2016-202011
golf 2.02016-202011
Golf Estate2013-201711A9R
Audi A3 Cab. 1.42013-201611
Golf 1.4 BlueMotion2012-201711PR:DF5,DR8,
Audi A3 Sportback2012-201611

Other markets (1)

VehicleYearsPos.QtyRemarkPR
Audi A3 Limousine 2.02015-201611D

Diagrams & fitment data powered by oemdiagrams.com

A C Condenser With Fluid Reservoir is fitted on: Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; golf 2.0 2016-2020; Golf Estate 2013-2017; Audi A3 Cab. 1.4 2013-2016; Golf 1.4 BlueMotion 2012-2017; Audi A3 Sportback 2012-2016; Audi A3 Limousine 2.0 2015-2016.
