Product overview

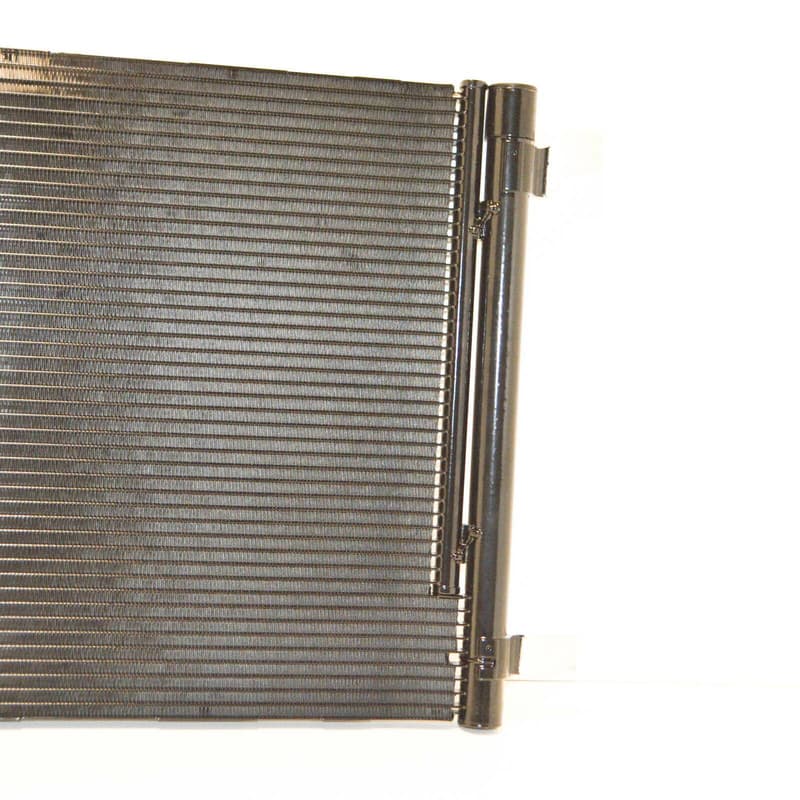

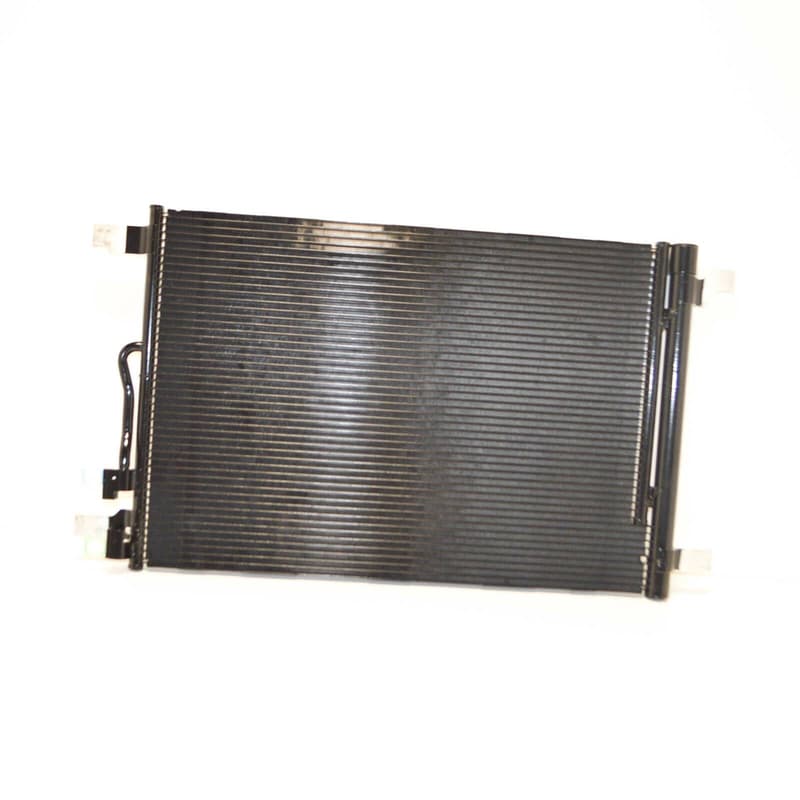

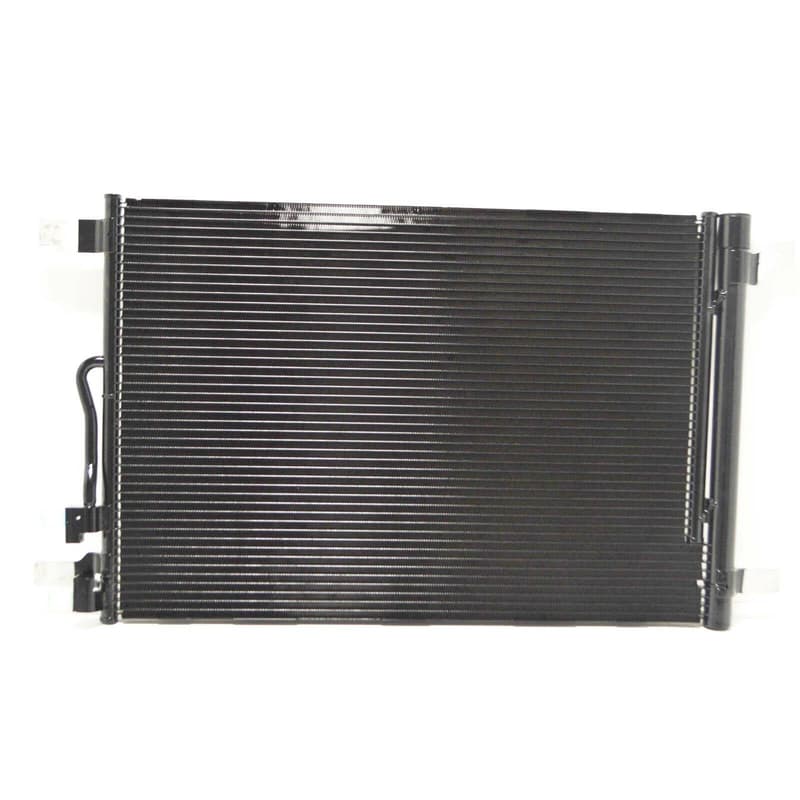

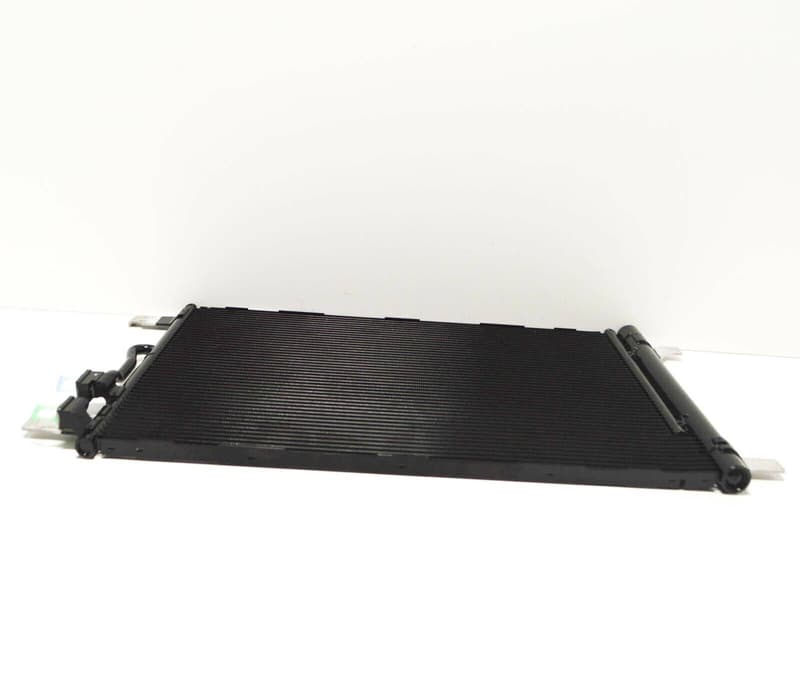

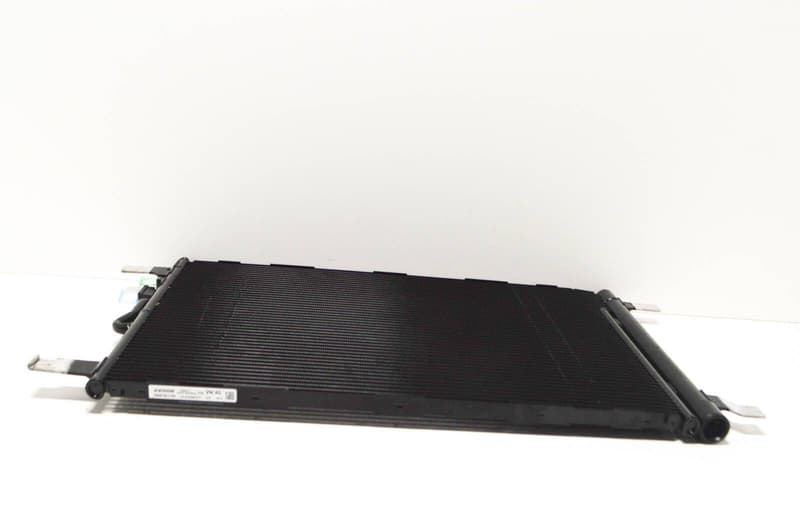

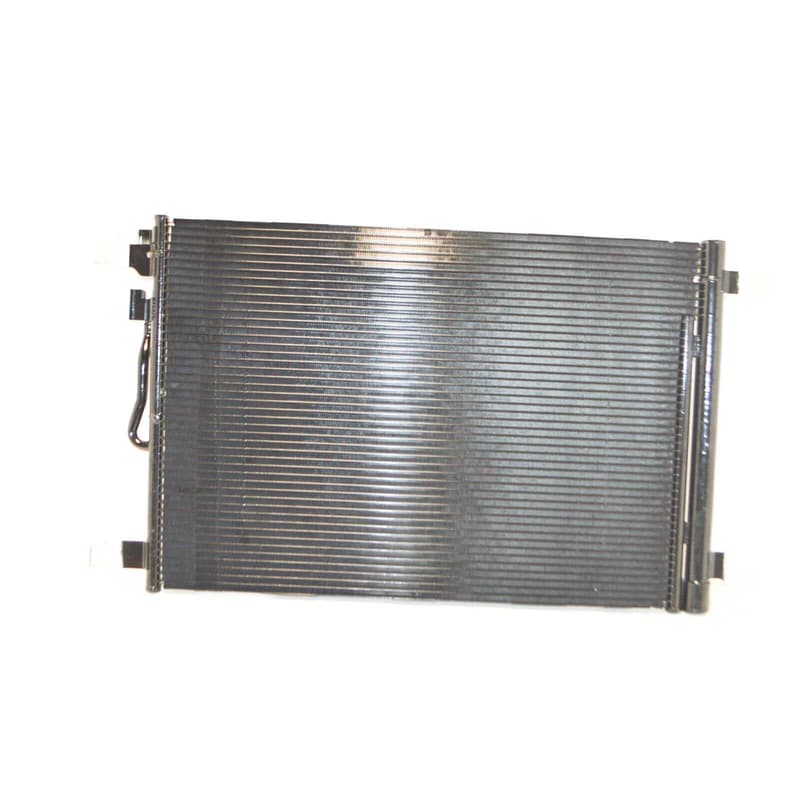

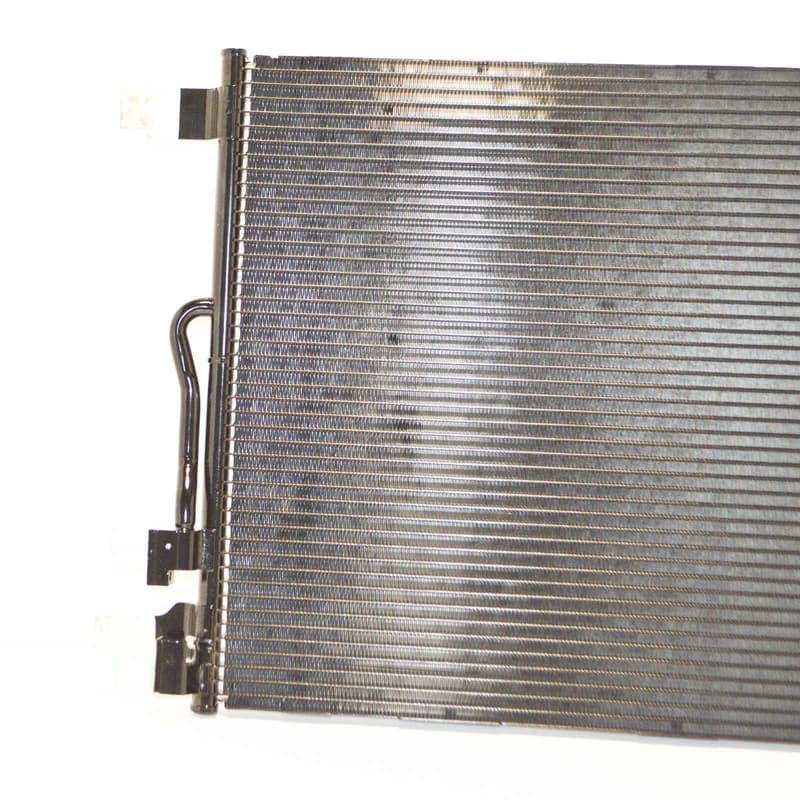

Genuine OEM Audi A/C Condenser Radiator, part number 5Q0816411AS. This critical component of the air conditioning system is responsible for dissipating heat from the high-pressure refrigerant, allowing it to condense back into a liquid state. It is typically mounted at the front of the vehicle, often in front of the engine's main radiator. This unit weighs 2.62 kg and measures 0.75m in length. Using a genuine OEM condenser ensures optimal heat exchange efficiency and durability, which are vital for effective and long-lasting air conditioning performance.
Catalogue entry: CONDENSER KEIHIN.
Fitted with: 5Q0816411AR CONDENSER, 3D0260749C seal ring, N10347103 BOLT, 4D0260749B seal ring.
Technical details
- Category
- Heating & A/C
- Country of origin
- Czech Republic
- Customs (HS) code
- 84189910
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 75 × 40 × 4 cm
- Shipping weight
- 2.62 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
4 vehiclesA C Condenser With Fluid Reservoir — locate 5Q0816411AS Audi A/C Condenser Radiator | HVAC in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Condenser 5Q0816411AR
- 2Insert 5Q0298403A
- 2Insert 5Q0298403D
- 5Line 5QF816721AA
- 5Line 5QF816721AB
- 5Line 5QF816721AK
- 5Line 5QF816721AL
- 5Line 5QF816721AN
- 5Line 5QF816721AR
- 5Line 5QF816721BC
- 5Line 5QF816721J
- 5Line 5QF816721M
- 5Line 5QF816721T
- 5Line 5QF816721AS
- 6Seal Ring 3D0260749C
- 7Seal Ring 4E0260749A
- 8Screw N10414402
- 9Bolt N10347103
- 11Line 5QF816741A
- 11Line 5QF816741B
- 11Line 5QF816741C
- 11Line 5QF816741D
- 11Line 5QF816741E
- 11Line 5QF820741J
- 11Line 5QF820741K
- 11Line 5QF820741L
- 11Line 5QF820741M
- 11Line 5QF820741N
- 12Valve 3D0820855A
- 12Valve 8E0820855
- 13Part 5Q0816581
- 13Part 5Q0816581A
- 13Part 3C0820581
- 14Part 8A0820855AA
- 15Seal Ring 7H0820896
- 16Sender 4H0959126B
- 16Sender 4H0959126C
- 17Seal Ring 4D0260749B
- 20Line 5QF816743A
- 20Line 5QF816743AA
- 20Line 5QF816743AB
- 20Line 5QF816743AD
- 20Line 5QF816743B
- 20Line 5QF816743C
- 20Line 5QF816743D
- 20Line 5QF816743N
- 20Line 5QF820743A
- 20Line 5QF820743B
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q3 quattro | 2018-2019 | 1 | 1 |
| Audi A3 Sportback | 2016-2020 | 1 | 1 |
| Audi Q2 2.0 TDI | 2016-2018 | 1 | 1 |
| Audi TTS Coupe 2.0 | 2014-2023 | 1 | 1 |
The manufacturer’s catalogue lists this part number as fitted until 29 November 2021; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
5Q0816411AS Audi A/C Condenser Radiator | HVAC is fitted on: Audi Q3 quattro 2018-2019; Audi A3 Sportback 2016-2020; Audi Q2 2.0 TDI 2016-2018; Audi TTS Coupe 2.0 2014-2023.
