5Q0825735A Heat Shield For Fuel Tank
- 5Q0825735Not stocked
Mar 2019 - 5Q0825735AThis pageNot stocked
Oct 2020 - 5Q0825735BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

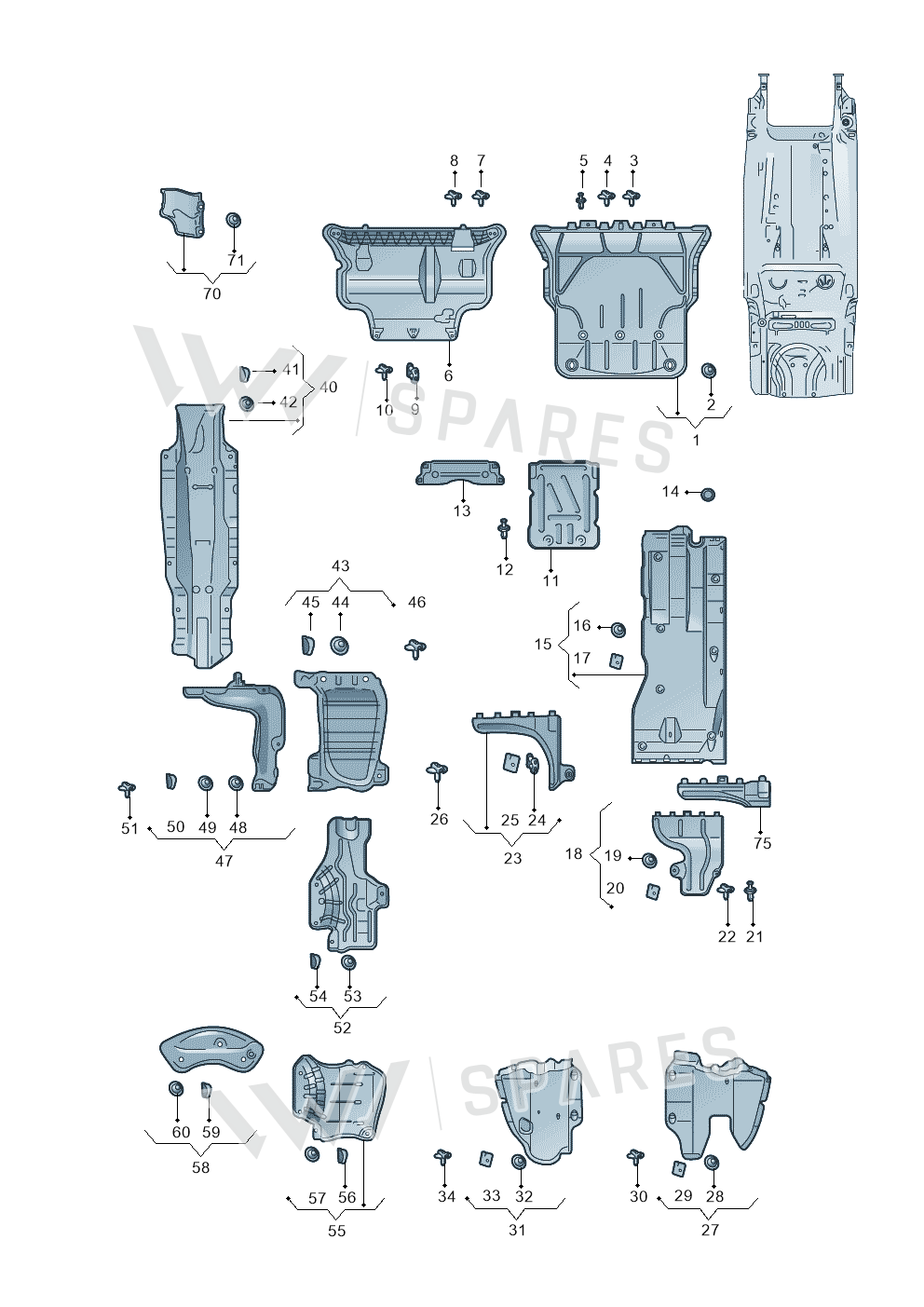

9 vehiclesHeat Shield For Fuel Tank — locate Heat Shield For Fuel Tank in the official exploded view and explore the surrounding assembly.
Parts in this assembly39
- 1Insulation 3Q0825236C
- 1Insulation 5WA825236C
- 1Insulation 5WA825236A
- 2Part N90959101
- 3Bolt N90974701
- 4Bolt WHT000729A
- 5Spring Rivet 5WA825267A
- 6Underrun 3Q0825901B
- 8Bolt N0195307
- 9Bracket MtRight5Q0825922A
- 9Bracket MtLeft5Q0825921
- 10Bolt N10574702
- 11Trim 5Q0825230K
- 12Spring Rivet WHT008023
- 13Trim 8Y0825230
- 14Cover WHT007697
- 15TrimRight5WA825202E
- 15TrimLeft5WA825201E
- 16Collar Nut WHT000713
- 18TrimLeft5WA825101
- 19Washer N90796502
- 21Spring Rivet N0385494
- 23TrimRight5WA825102A
- 24Part WHT003491
- 27TrimLeft5E3825205
- 31TrimRight5E3825506
- 40Heat Sh 5Q0825661CA
- 41Washer WHT003386
- 43Heat ShLeft5Q0825729C
- 47Guard 5Q0825735B
- 50Washer WHT001156
- 52Heat Sh 5Q0825711B
- 54Washer N90335004
- 55Heat Sh 5Q0825712D
- 55Heat Sh 5Q0825711C
- 58Guard 5Q0825710
- 70Deflector 5E3825841A
- 71Screw N90652602
- 75Trim 5WA201429
Vehicle fitment table9
Europe (7)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Octavia | 2019-2024 | 47, 54 | 1 | |
| Audi A3 Sportback | 2019-2021 | 15 | 1 | D |
| Karoq | 2017-2022 | 25 | 1 | |
| Octavia | 2017-2020 | 30 | 1 | |
| Audi A3 Sportback | 2016-2020 | 2 | 1 | |
| Leon ST Stylance | 2016-2020 | 30 | 1 | |
| Audi Q2 2.0 TDI | 2016-2018 | 7 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Jetta 1.4 | 2017-2024 | 8, 9 | 1 | |
| POLO HATCH "ZA"06> | 2005- | 30 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Heat Shield For Fuel Tank is fitted on: Octavia 2019-2024; Audi A3 Sportback 2019-2021; Karoq 2017-2022; Octavia 2017-2020; Audi A3 Sportback 2016-2020; Leon ST Stylance 2016-2020; Audi Q2 2.0 TDI 2016-2018; Jetta 1.4 2017-2024; POLO HATCH "ZA"06> 2005-.
