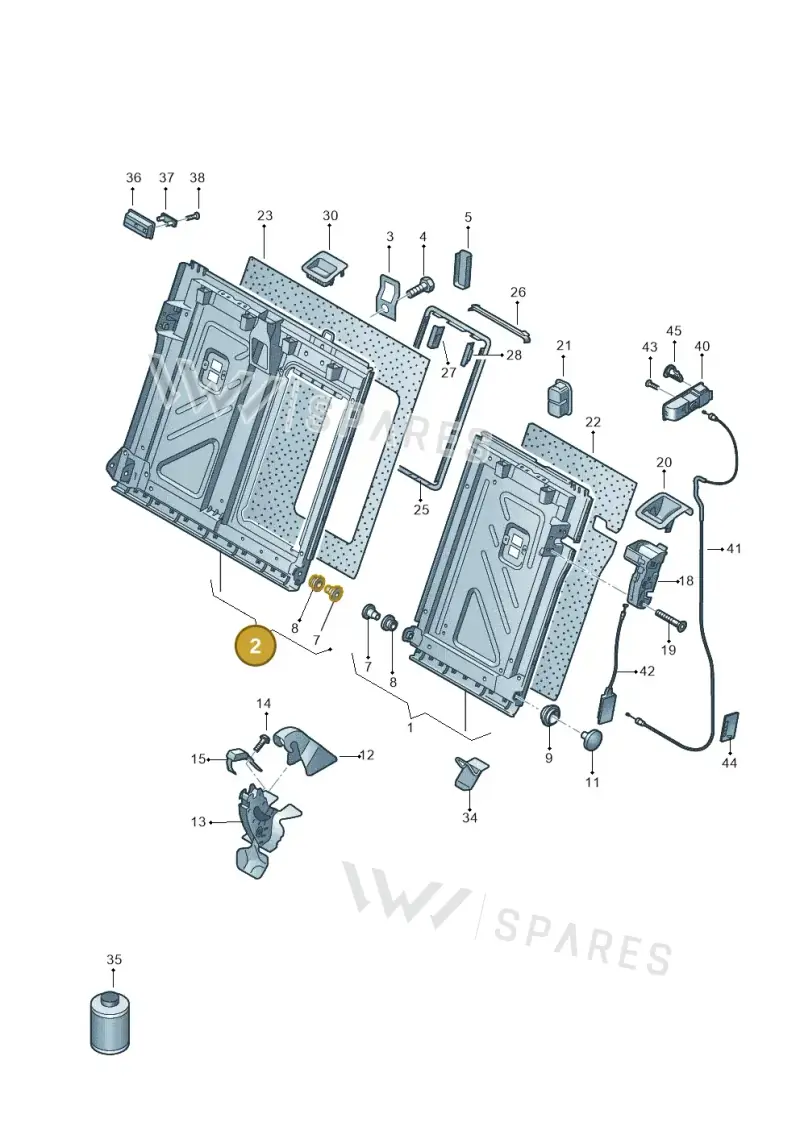

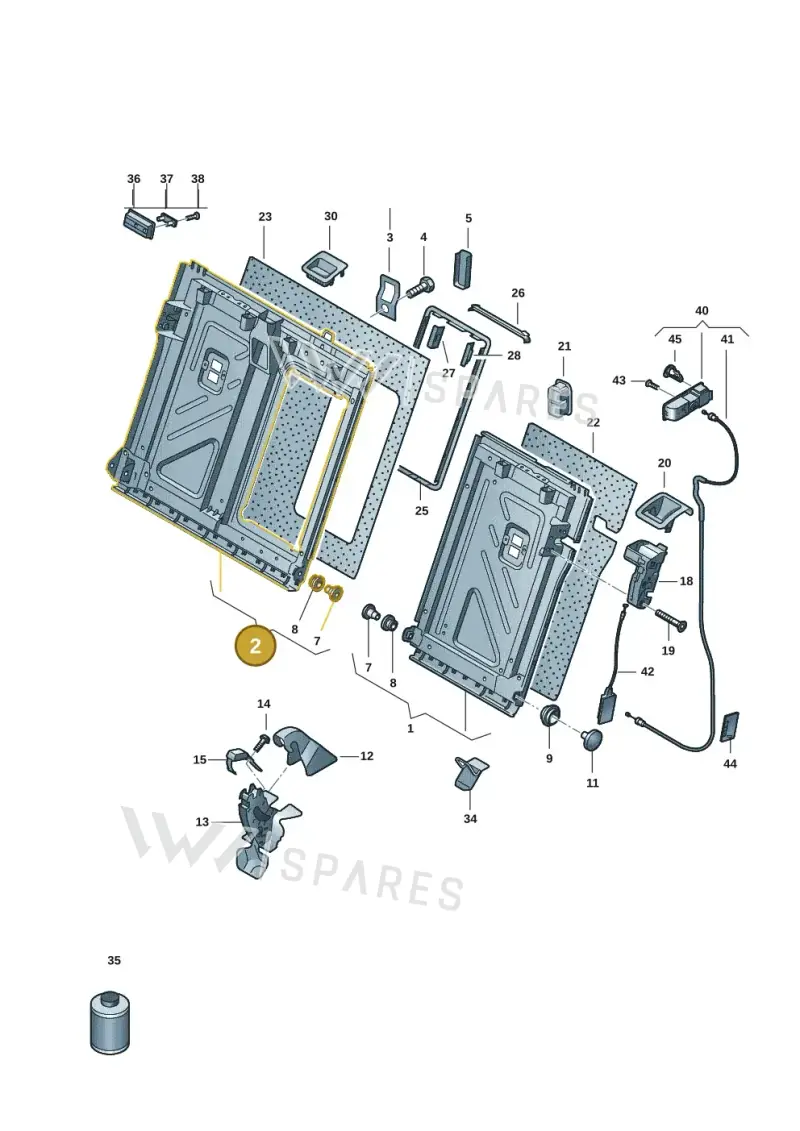

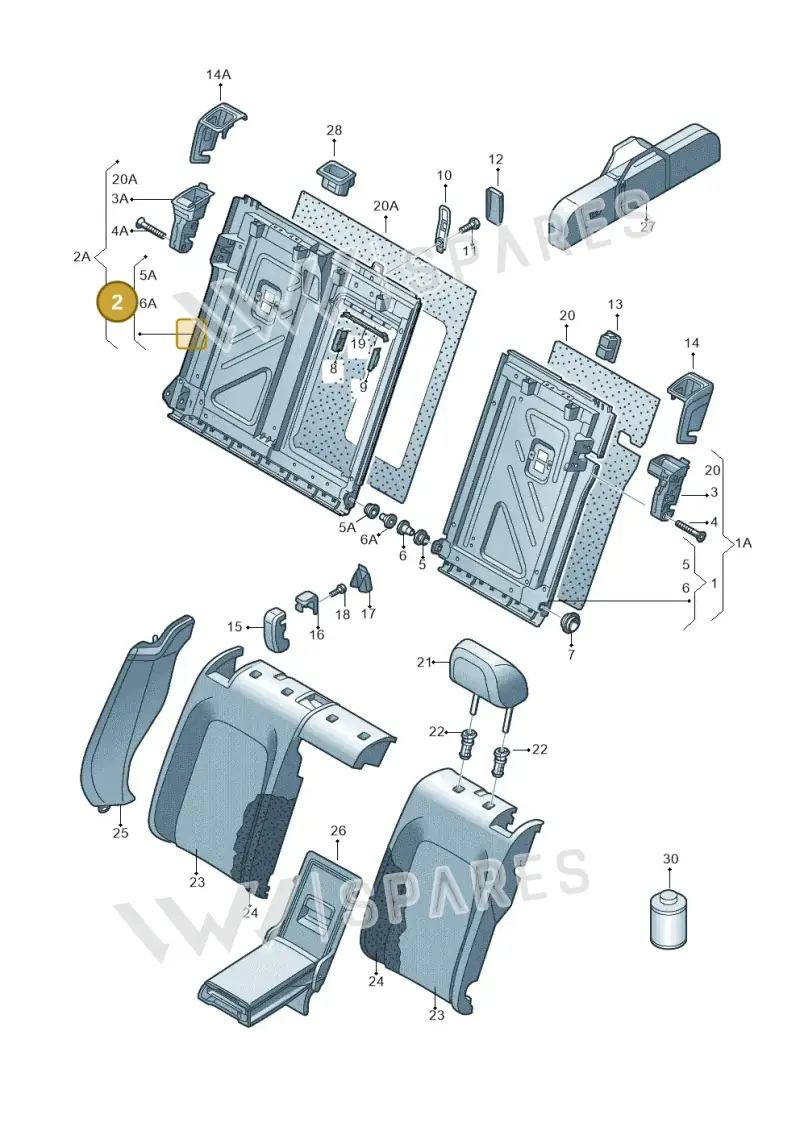

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Backrest Frame, part number 5Q0885504BL. This is the main structural component that forms the basis of a vehicle's seat backrest, to which upholstery and other seat components are attached. It is located in the seat assembly. This frame provides the necessary support and rigidity for the seat back. Genuine OEM backrest frames are manufactured to precise dimensions and strength requirements for safety and durability.
Catalogue entry: FRAME-BACK right; for models with long load.
Technical details
- Category
- Seats
- Customs (HS) code
- 94019990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 67.5 × 60 × 6.5 cm
- Shipping weight
- 6.2 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 3A0
- 3B4
- 3KB
- K8C
- 3A1
- 3B7
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
15 vehiclesBackrest Frame — locate 5Q0885504BL Volkswagen Backrest Frame | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly44
- 1Frame-back 5G0885501G
- 1Frame-back 5Q0885503AH
- 2Frame-back 5G0885502AB
- 2Frame-back 5G0885502AK
- 2Frame-back 5Q0885504CK
- 3Holder 8V0887269
- 4Screw N10416502
- 5Part 8V0887301
- 7Bush 3C0885166
- 8Grommet 5Q0885677
- 8Grommet 5Q0885649
- 9Grommet 5Q0885678B
- 14Bolt N10751101
- 15Clamp 5Q0886193
- 18B Rest RelLeft5Q0885681K
- 18B Rest RelLeft5Q0885681M
- 18B Rest RelRight5Q0885682J
- 18B Rest RelRight5Q0885682K
- 18B Rest RelRight5Q0885682M
- 18B Rest RelLeft5Q0885681J
- 19Screw N91128701
- 20TrimRight5G0885894B
- 20TrimLeft5G0885893B
- 21Trim 8V0886747
- 22Trim 5G0885753
- 23Trim 5G0885754
- 25Frame 5G0885219A
- 26Strip 8V0885771
- 27Panel 5G0886331D
- 28Panel 5G0886331C
- 35Adhesive D001210M2
- 40PartLeft5F9867163
- 40PartRight5F9867164
- 40PartLeft5FF885591B
- 40PartRight5FF885592A
- 40PartRight5FF885592B
- 40PartLeft5FF885591A
- 42Bowd Cable 5G0885915C
- 42Bowd Cable 5G0885915B
- 43Bolt N90974701
- 43Bolt N90775002
- 44Part 5G0886296
- 45Filler Piece 5G0885283A
- 45Filler Piece 5G0885283
Compatible / alternative parts(12)
Vehicle fitment table15
Europe (15)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Formentor TSI CUPRA | 2020- | 2 | 1 | PR:UK1+3A2 | 3A2 |
| Leon style | 2019- | 2 | 1 | PR:3NU+UK1+ | |
| T-Roc BlueMotion | 2017-2024 | 2 | D | ||
| Arteon | 2017-2023 | 2 | D | ||
| Audi RS3 Limousine | 2017-2020 | 2 | 1 | PR:3B7+3NU | 3B7 |
| Ateca Style | 2016- | 2 | 1 | PR:3NU+UK1 | 3NU |
| golf 2.0 | 2016-2020 | 2 | D | ||
| Leon ST Stylance | 2016-2020 | 2 | 1 | PR:3NU+UK1 | 3NU |
| Audi A3 Sportback | 2016-2020 | 2 | 1 | PR:3B7+3NU | 3B7 |
| Audi RS3 Sportback | 2015-2016 | 2 | 1 | PR:3B7+3NU | 3B7 |
| Passat saloon | 2014-2024 | 2 | 1 | 3KF | |
| e-Golf | 2014-2021 | 2 | |||
| Golf 1.4 BlueMotion | 2012-2017 | 2 | 1 | PR | |
| Leon ST Stylance | 2012-2016 | 2 | 1 | PR:3NU+UK1 | 3NU |
| Audi A3 Sportback | 2012-2016 | 2 | 1 | PR:3B7+3NU | 3B7 |
Diagrams & fitment data powered by oemdiagrams.com
5Q0885504BL Volkswagen Backrest Frame | Genuine OEM is fitted on: Formentor TSI CUPRA 2020-; Leon style 2019-; T-Roc BlueMotion 2017-2024; Arteon 2017-2023; Audi RS3 Limousine 2017-2020; Ateca Style 2016-; golf 2.0 2016-2020; Leon ST Stylance 2016-2020; Audi A3 Sportback 2016-2020; Audi RS3 Sportback 2015-2016; Passat saloon 2014-2024; e-Golf 2014-2021; Golf 1.4 BlueMotion 2012-2017; Leon ST Stylance 2012-2016; Audi A3 Sportback 2012-2016.
