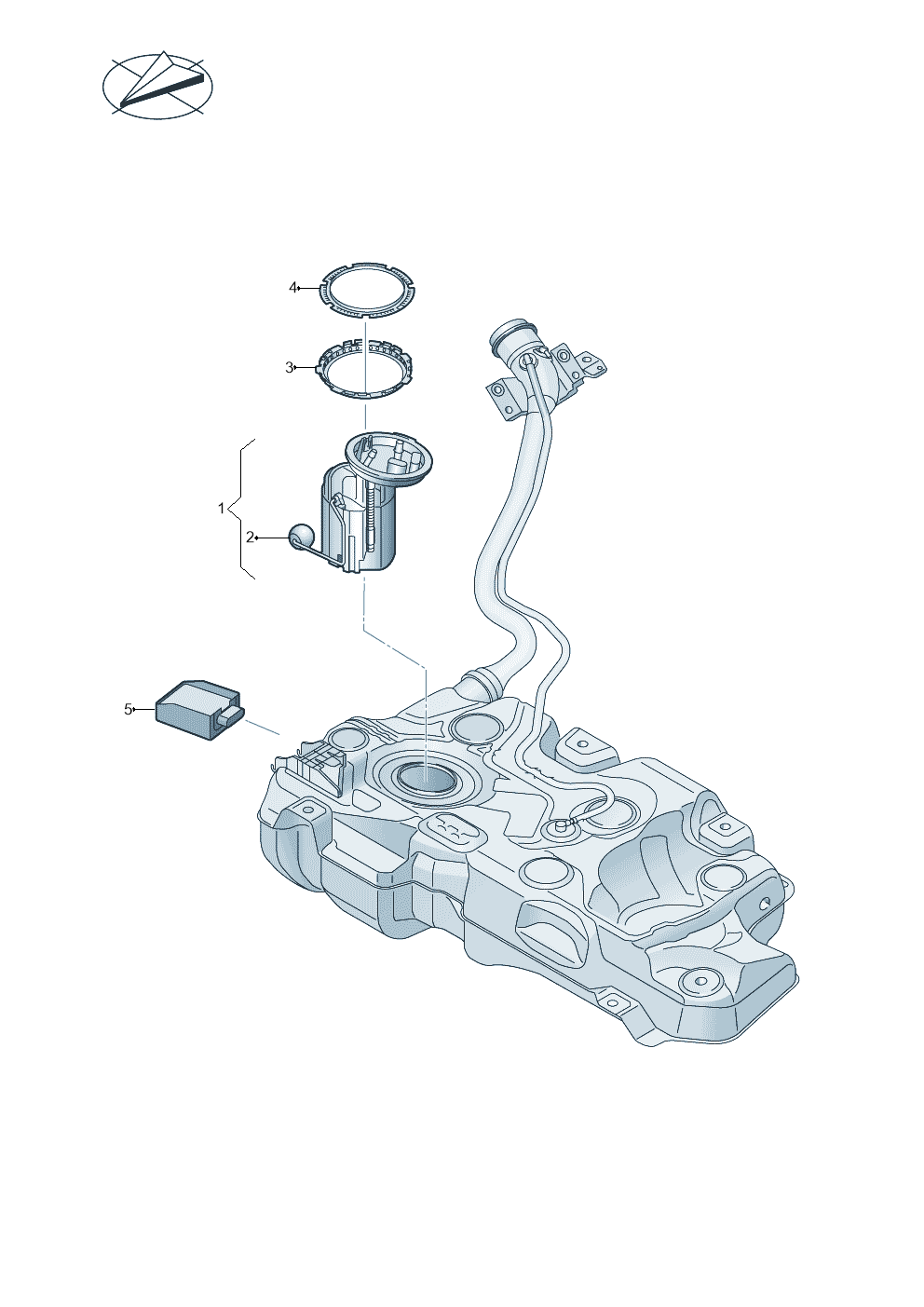

Control Unit For Fuel Pump exploded parts diagram — Karoq · 2017-2022, position 5
Exploded view
Karoq · 2017-2022 · position 5Full diagram ↓
5Q0906121Q

5Q0906121Q Control Unit For Fuel Pump

£146.29
£120.90 excl. VAT
Supersession road5 numbers since 2017
  1. 5Q0906121QThis pageNot stocked
    Oct 2017
  2. 3Q0906121BSuperseded
    Nov 2021
  3. 3Q0906121CSuperseded
    Feb 2023
  4. 3Q0906121GSuperseded
    Apr 2026
  5. 3Q0906121HCurrent number
Current part number3Q0906121HWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

7 vehicles

Control Unit For Fuel Pump — locate Control Unit For Fuel Pump in the official exploded view and explore the surrounding assembly.

Parts in this assembly22
Vehicle fitment table7

Europe (7)

VehicleYearsPos.QtyPR
Karoq2017-202251D
Kodiaq2016-202451
Audi A3 Sportback2016-2020161
Audi TTS Coupe 2.02014-202310, 171
Audi Q3 2.0 TDI2014-2019121
Octavia2012-20175, 71
Leon ST Stylance2012-201651

Diagrams & fitment data powered by oemdiagrams.com

Control Unit For Fuel Pump is fitted on: Karoq 2017-2022; Kodiaq 2016-2024; Audi A3 Sportback 2016-2020; Audi TTS Coupe 2.0 2014-2023; Audi Q3 2.0 TDI 2014-2019; Octavia 2012-2017; Leon ST Stylance 2012-2016.
