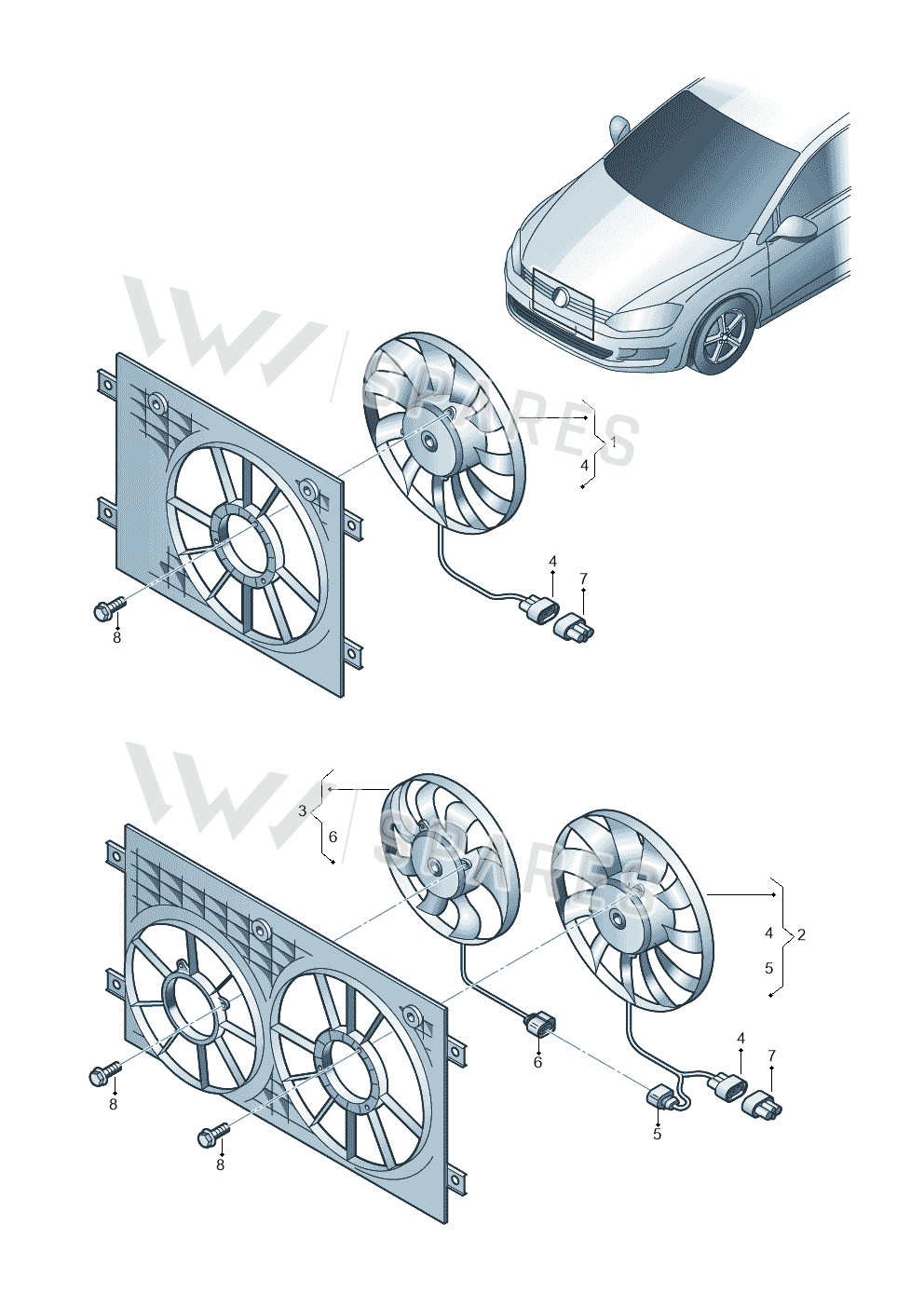

Radiator Fan exploded parts diagram — Leon ST Stylance · 2012-2016, position 1
Exploded view
Leon ST Stylance · 2012-2016 · position 1Full diagram ↓
5Q0959455AR

5Q0959455AR Radiator Fan

£280.12
£231.50 excl. VAT
Supersession roadoldest to newest
  1. 5Q0959455ARThis pageNot stocked
  2. 5Q0121203CENot stocked
    Apr 2018
  3. 5Q0121203DECurrent number
Current part number5Q0121203DEWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Shipping details

Shipping weight
2 kg
Shipping size (L × W × H)
73.5 × 46.3 × 7 cm
Customs (HS) code
84145925

Parts diagram & fitment

1 vehicle

Radiator Fan — locate Radiator Fan in the official exploded view and explore the surrounding assembly.

Parts in this assembly17
Vehicle fitment table1

Europe (1)

VehicleYearsPos.QtyPR
Leon ST Stylance2012-2016118Z6,8Z9,9AK,KH6,TA8

Diagrams & fitment data powered by oemdiagrams.com

Radiator Fan is fitted on: Leon ST Stylance 2012-2016.
