Product overview
Genuine OEM Audi Left Brake Pipe, part number 5Q1614725AP. This critical component is responsible for conveying hydraulic pressure from the ABS module to the left-side brake components, enabling effective and responsive braking. It is a rigid metal pipe, precisely formed for correct routing and connection within the braking system. Weighing 0.238 kg and measuring 1.02m in length, it is built to withstand high pressures. Choosing a genuine OEM brake pipe ensures the correct material, precise bends, and robust connections for critical braking system integrity and safety.
Catalogue entry: BRAKE PIPE left lhd.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 102 × 36 × 25 cm
- Shipping weight
- 0.24 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- L0L
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

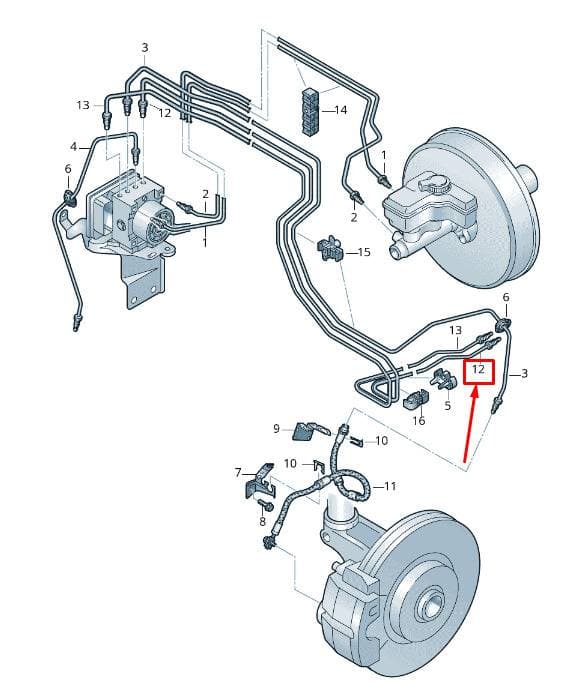

1 vehicleBrake Pipe — locate 5Q1614725AP Audi Left Brake Pipe | Brakes in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly32
- 1Brake PipeRight5Q2614739D
- 1Brake PipeRight5Q2614739F
- 1Brake PipeLeft5Q1614739F
- 1Brake PipeLeft5Q1614739K
- 2Brake PipeRight5Q2614740C
- 2Brake PipeRight5Q2614740E
- 2Brake PipeLeft5Q1614740C
- 2Brake PipeLeft5Q1614740E
- 3Brake PipeRight5Q2614723C
- 3Brake PipeLeft3Q1614723
- 3Brake PipeLeft5Q1614723E
- 4Brake PipeRight5Q2614724
- 4Brake PipeLeft3Q1614724
- 4Brake PipeLeft5Q1614724B
- 5Sleeve 1J0611853
- 5Bracket 1K0611853
- 6Grommet 1K0611751
- 7RetainerRight5Q0611842B
- 7RetainerLeft5Q0611841A
- 8Screw N10703001
- 9RetainerRight5Q0611846B
- 9RetainerLeft5Q0611845B
- 10Bracket 191611715
- 11Brake Hose 5Q0611701C
- 12Brake PipeRight5Q2614725AD
- 12Brake PipeLeft5Q1614725AR
- 13Brake PipeRight5Q2614726Q
- 13PartLeft5Q1614726AG
- 13Brake PipeLeft5Q1614726AJ
- 14Bracket 5Q0611797A
- 15Bracket 5Q0611797E
- 16Clip 6R0611797D
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q2 2.0 TDI | 2016-2018 | 12 | 1 |
The manufacturer’s catalogue lists this part number as fitted until 25 March 2024; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
5Q1614725AP Audi Left Brake Pipe | Brakes is fitted on: Audi Q2 2.0 TDI 2016-2018.
