5QA825613A Heat Sh
- 5QA825613AThis pageNot stocked
Aug 2021 - 5QA825613DSuperseded
Sep 2019 - 5QA825613ESuperseded
Sep 2024 - 5QA825613FCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.
Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

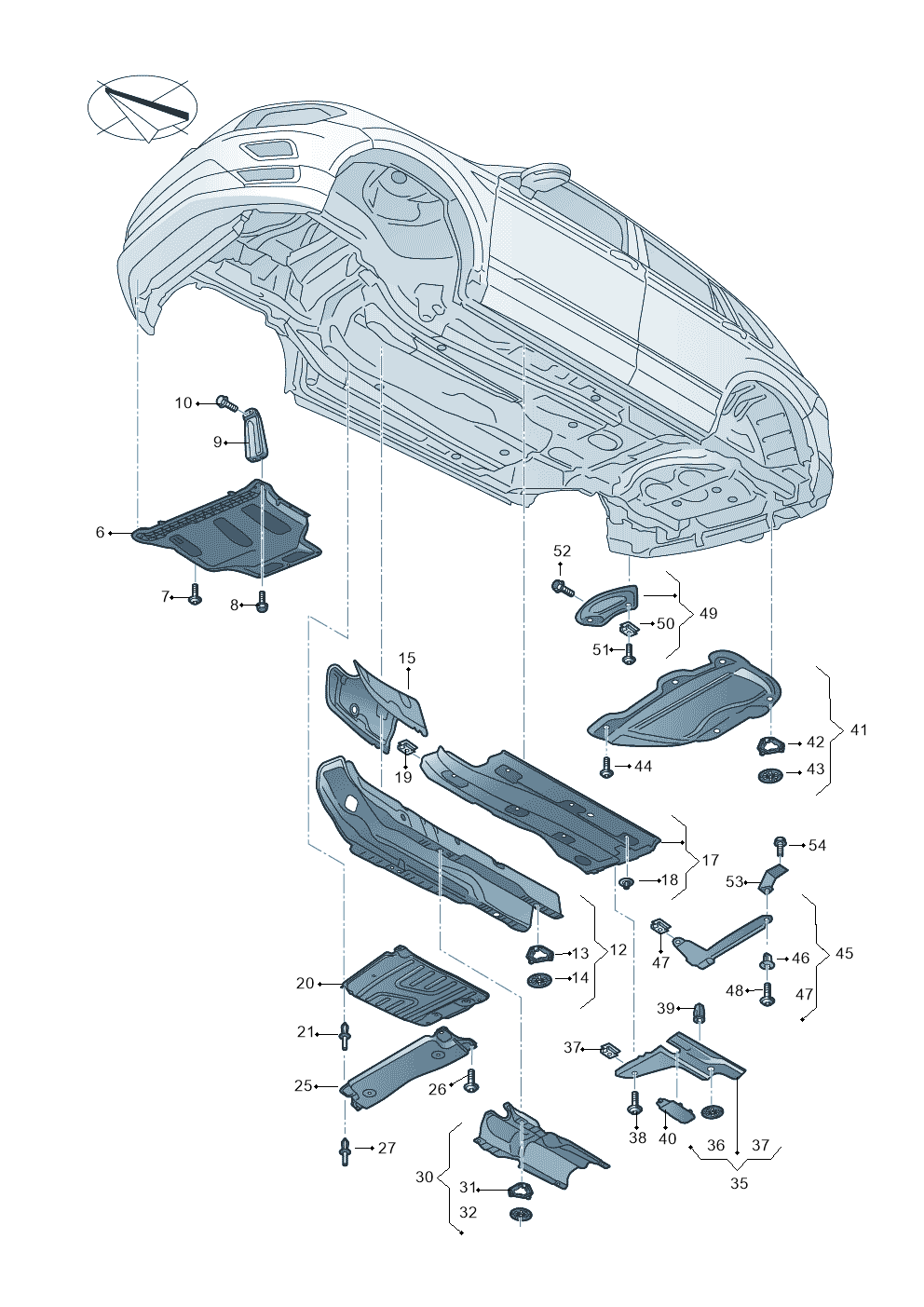

6 vehiclesHeat Sh — locate Heat Sh in the official exploded view and explore the surrounding assembly.
Parts in this assembly40
- 6Underrun 5QF825901B
- 6Underrun 5QF825902
- 6Underrun 5QF825902C
- 6Underrun 5QF825901A
- 7Bolt N90974701
- 8Bolt N0195307
- 9Bracket MtRight5Q0825922A
- 9Bracket MtLeft5Q0825921
- 10Bolt N10574702
- 12Heat Sh 5QF825662D
- 12Heat Sh 5QF825661D
- 13Washer WHT003386
- 14Washer N90335004
- 15Insulation 5QA825635
- 17TrimLeft5QF825201G
- 17TrimRight5QF825202C
- 17TrimRight5QF825202Q
- 17TrimLeft5QF825201C
- 18Collar Nut WHT000713
- 19Part N90959101
- 20Trim 5QA825230
- 21Spring Rivet WHT008023
- 25Trim 5Q0825230J
- 30Heat Sh 5QA825613E
- 35TrimLeft5QF825101A
- 35TrimRight5QF825102B
- 35TrimLeft5QF825206A
- 39Part WHT003491
- 40Bungs 5QA825961A
- 41Heat Sh 5QF825701F
- 41Heat Sh 5QF825701D
- 45Trim 565825205C
- 45Trim 565825205D
- 45Trim 565825205E
- 45Trim 565825205B
- 49TrimLeft565825205
- 52Bungs N91150301
- 53Bracket 565825135A
- 53BracketLeft565825135
- 54Collar Nut N01508210
Vehicle fitment table6
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Kodiaq | 2018-2022 | 30 | 1 | ||
| Tiguan 2.0 4Motion | 2017-2024 | 30 | 1 | ||
| Tiguan 2.0 4Motion | 2016-2024 | 30 | D | ||
| Kodiaq | 2016-2024 | 30 | D |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Tayron | 2018- | 30 | 1 | 1X1 | |
| Tiguan 2.0 4Motion | 2016-2022 | 20 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Heat Sh is fitted on: Kodiaq 2018-2022; Tiguan 2.0 4Motion 2017-2024; Tiguan 2.0 4Motion 2016-2024; Kodiaq 2016-2024; Tayron 2018-; Tiguan 2.0 4Motion 2016-2022.
