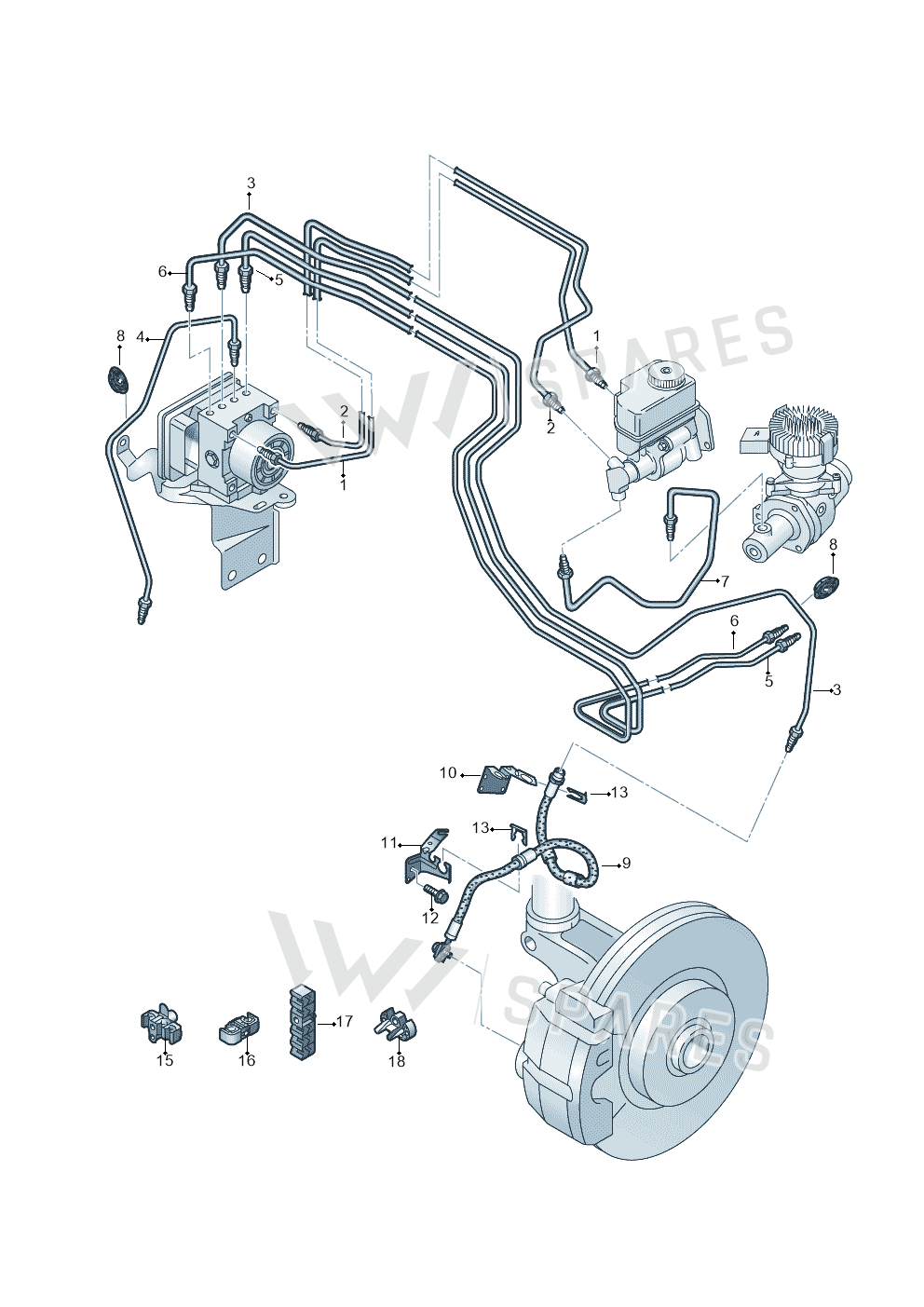

Brake Pipe exploded parts diagram — Passat saloon · 2014-2024, position 1 — Passat saloon · 2014-2024 · position 1Full diagram ↓

5QE614739

5QE614739 Brake Pipe

Name: 5QE614739 Brake Pipe
Brand: Volkswagen
SKU: 5QE614739
Price: 11.86 GBP
Availability: Discontinued

£11.86

£9.80 excl. VAT

Supersession roadforks into 2

5QE614739
Not stocked Nov 2016
You are here
5QE614739D
Not stocked Jul 2017

5QE614739This pageNot stocked
Nov 2016
5QE614739DNot stocked
Jul 2017

5QE614739C
Current number
5QE614739CCurrent number
1J0611853
Current number
1J0611853Current number

Availability: No longer supplied under this number

Quantity:

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

3 vehicles

Brake Pipe — locate Brake Pipe in the official exploded view and explore the surrounding assembly.

Parts in this assembly27

Vehicle fitment table3

Europe (3)

Vehicle	Years	Pos.	Qty	PR
Passat saloon	2014-2024	1	1
Golf 1.4 BlueMotion	2012-2017	1	1
Audi A3 Sportback	2012-2016	1	1	D
