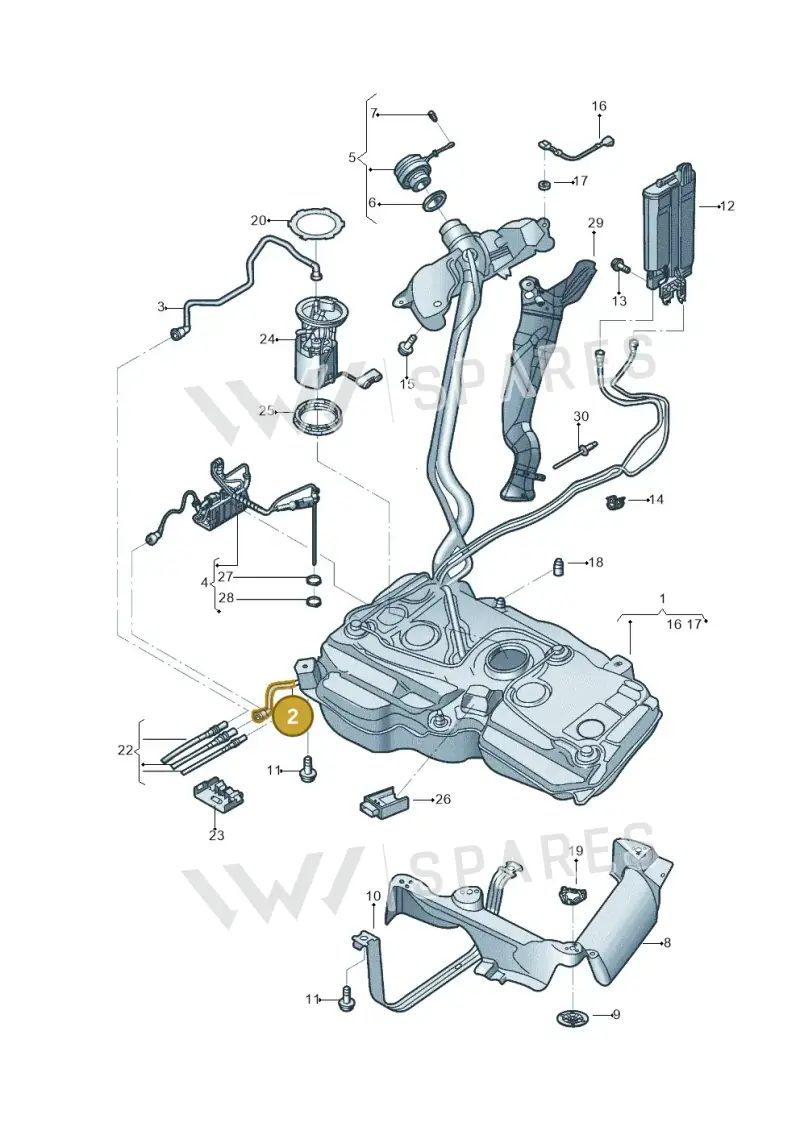

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Bleeding Line, part number 5QF201160A. This component is part of the fuel system and is used for bleeding air from the fuel lines, ensuring proper fuel delivery. It connects to the fuel tank assembly. The line has a length of 1.115 meters and a weight of 0.0546 kg. Genuine OEM parts ensure the correct material composition, resistance to fuel, and precise fitment required for fuel system integrity and safety.
Catalogue entry: LINE.
Technical details
- Category
- Fuel System
- Country of origin
- Germany
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 111.5 × 52 × 10 cm
- Shipping weight
- 0.05 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 1A5
- 5C0
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
5 vehiclesBreather Line — locate 5QF201160A Volkswagen Bleeding Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly18
- 1Fuel Tank 5QF201060Q
- 3Fuel Line 5QA201293E
- 4Part 5Q0201607F
- 8Heat Sh 5QF201307A
- 9Washer N90335004
- 10Strap 5QF201656A
- 11Bolt N91229601
- 12Container 5QA201801
- 13Bolt N10240003
- 14Clip 1H0201449C
- 15Bolt N10699801
- 16Line 5QA201142
- 17Bush 5QA201048
- 18Insulation 8K0201274B
- 19Washer WHT003386
- 20Part 1K0201375
- 27Clamp N10203501
- 28Clamp N10198301
Vehicle fitment table5
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Kodiaq | 2018-2022 | 2 | 1 | ||
| Tiguan 2.0 4Motion | 2017-2024 | 2 | 1 | PR:5C0 | 1A5 |
| Tiguan 2.0 4Motion | 2016-2024 | 2 | |||
| Kodiaq | 2016-2024 | 2 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Tiguan 2.0 4Motion | 2016-2022 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
5QF201160A Volkswagen Bleeding Line | Genuine OEM is fitted on: Kodiaq 2018-2022; Tiguan 2.0 4Motion 2017-2024; Tiguan 2.0 4Motion 2016-2024; Kodiaq 2016-2024; Tiguan 2.0 4Motion 2016-2022.
