5QF803545 Bracket Mount
- 5QF803545This pageNot stocked
May 2017 - 5QF803545CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

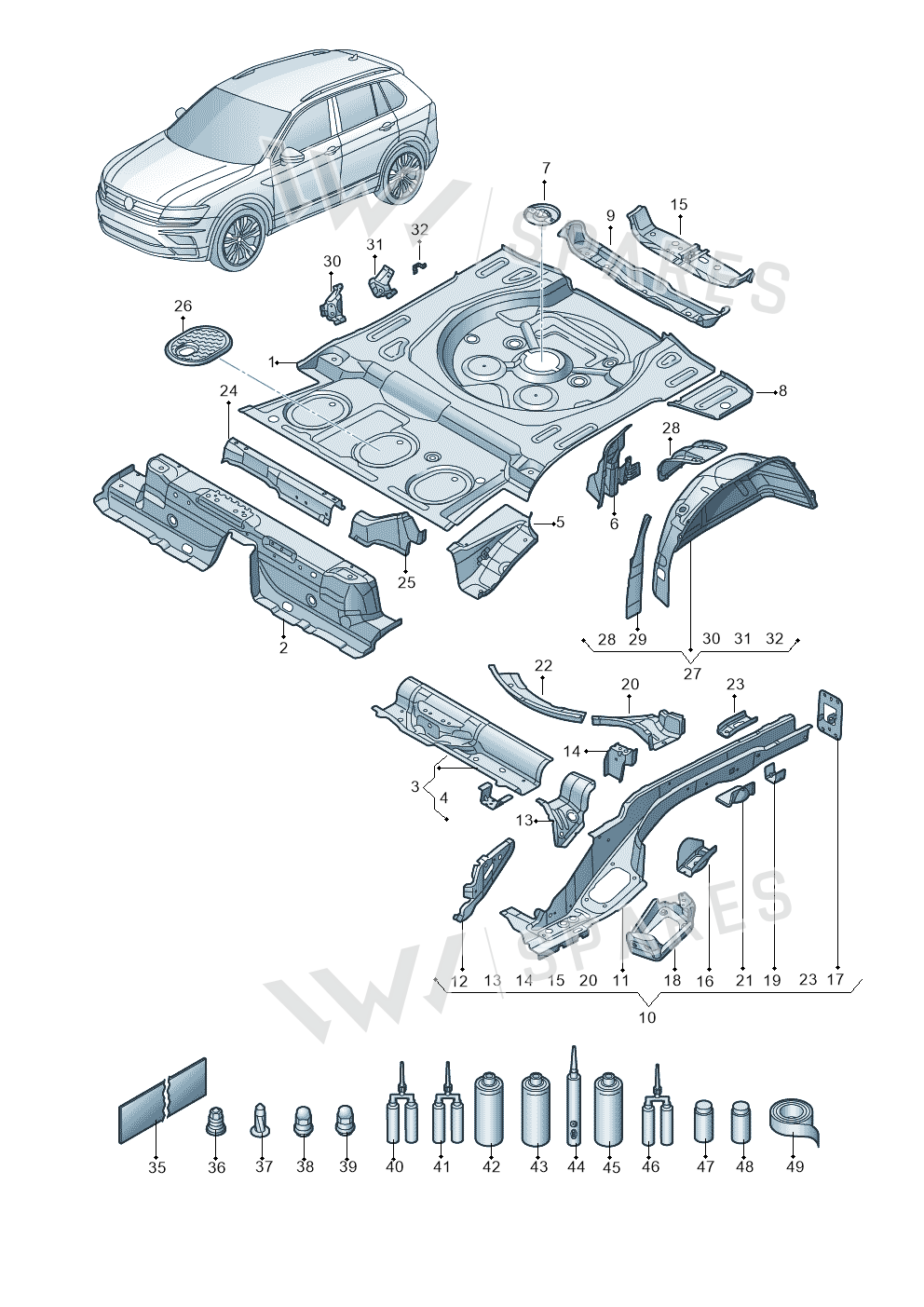

2 vehiclesBracket Mount — locate Bracket Mount in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Bot Plate 5QF813115A
- 1Bot Plate 5QF813115
- 2Reinforcement 5QF813146
- 3Carrier 5QF803531
- 4Bracket Mt 5QF813695
- 5Cov PlateRight5QF803402
- 5Cov PlateLeft5QF803401
- 6ReinforceRight5QF814562F
- 6ReinforceLeft5QF814561F
- 7Bracket Mt 1T0803274
- 8Bot PlateRight5QF802090B
- 8Bot PlateLeft5QF802091B
- 9Cross Member 5QF813518
- 10Side MemberRight5QF803502BC
- 10Side MemberRight5QF803502M
- 10Side MemberLeft5QF803501BC
- 10Side MemberLeft5QF803501K
- 11PartRight5QF803506AL
- 11PartRight5QF803506K
- 11PartLeft5QF803505AL
- 11PartLeft5QF803505H
- 12Side MemberRight5QF802558
- 12Side MemberLeft5QF802557
- 13PlateRight5QF803066
- 13PlateLeft5QF803065
- 14SupportRight5QF813546
- 14SupportLeft5QF813545
- 15Bracket Mt 5QF803545C
- 16BracketRight5QF801772
- 16BracketLeft5QF801771
- 17End PlateRight5QF804474C
- 17End PlateLeft5QF804473C
- 18ReinforceRight5QF803514
- 18ReinforceLeft5QF803513
- 19Mount Block 5QF804025
- 20PlateRight5QF802954
- 20PlateLeft5QF802953
- 21Springseat 5QF803457
- 22Cross Member 5QF803133
- 23ReinforceRight5QF803698
- 23ReinforceLeft5QF803697
- 24Cross Member 5QF814153
- 25Connector PieceRight5QF802136B
- 25Connector PieceLeft5QF802135B
- 26Cover 5QA803961A
- 27Wheel HousingRight5QF809852
- 27Wheel HousingLeft5QF809851
- 28MountingRight5QF802192
Vehicle fitment table2
Europe (1)
| Vehicle | Years | Pos. |
|---|---|---|
| Tiguan 2.0 4Motion | 2016-2024 | 15 |
Other markets (1)
| Vehicle | Years | Pos. |
|---|---|---|
| Tiguan 2.0 4Motion | 2016-2022 | 15 |
Diagrams & fitment data powered by oemdiagrams.com
Bracket Mount is fitted on: Tiguan 2.0 4Motion 2016-2024; Tiguan 2.0 4Motion 2016-2022.
