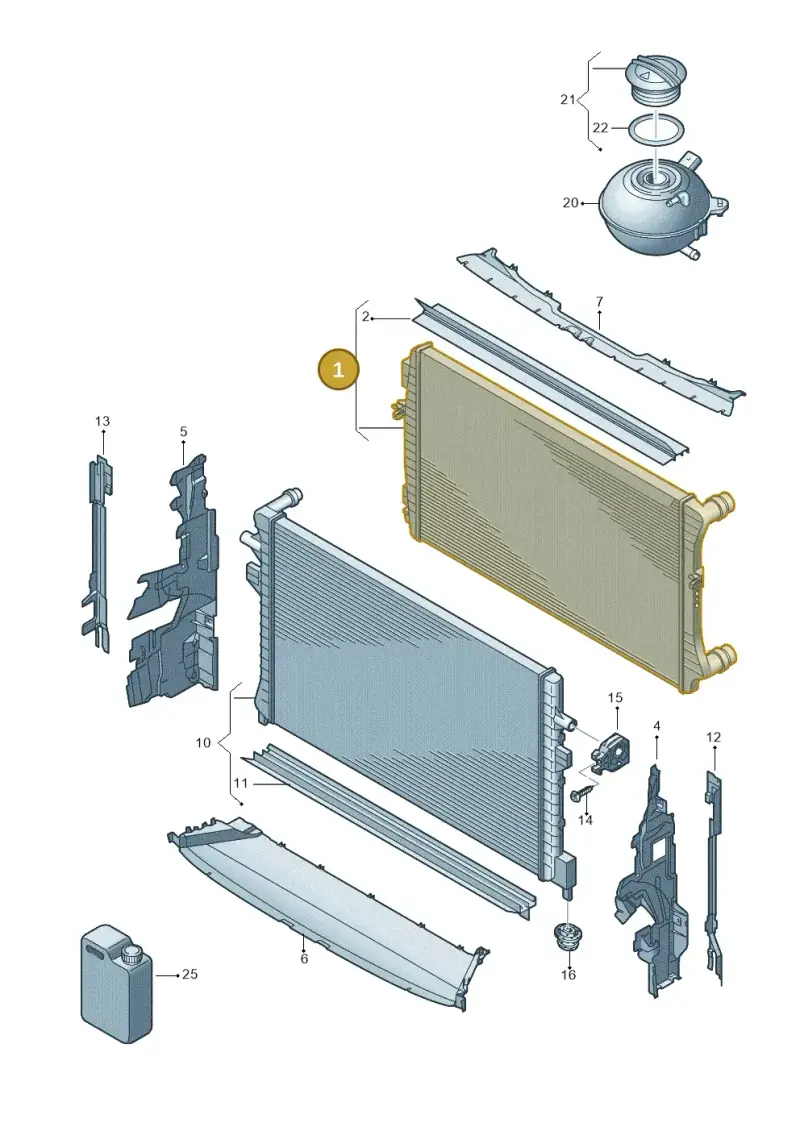

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Radiator, part number 5QM121251AA. This is the main engine cooling radiator responsible for dissipating heat from the coolant. It is located at the front of the vehicle, typically behind the grille. Constructed from aluminum and plastic for efficient heat transfer. Genuine OEM parts are manufactured to precise specifications, ensuring correct fitment and optimal cooling performance.
Catalogue entry: RADIATOR 650X457X34; supplied; 5WA 121 251 H.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 87089135
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 76 × 47.5 × 10 cm
- Shipping weight
- 4.47 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Dimensions
- 650x457x34
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesCooler For Coolant — locate 5QM121251AA Volkswagen Radiator | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Radiator 5WA121251H
- 1Radiator 5Q0121251GN
- 2Seal 5Q0121345C
- 4Air Guide 17A121283AF
- 4Air Guide 17A121283G
- 4Air Guide 17A121283P
- 5Air Guide 17A121284AF
- 5Air Guide 17A121284G
- 5Air Guide 17A121284P
- 6Cover 17A121330D
- 7Air Guide 17A121329F
- 7Air Guide 17A121329J
- 12Seal Strip 5G0121331J
- 13Seal Strip 5G0121332J
- 14Bolt N90972201
- 15Part 5Q0121367G
- 16Bush 1K0121367F
- 20Container 5Q0121407M
- 20Container 5Q0121407T
- 20Container 5QM121407E
- 20Container 5QM121407C
- 21Cover 2Q0121321A
- 25CoolantLeftG013774M2
- 25CoolantLeftG013A8JM8
- 25CoolantRightG12E050A2
- 25CoolantRightG12E100A2
- 25CoolantRightG12E100A8
- 25CoolantRightG12E100A9
- 25CoolantRightG12E100L2
- 25CoolantRightG12E100M2
- 25CoolantLeftG013A8JM1
Vehicle fitment table2
Europe (1)
| Vehicle | Years | Pos. |
|---|---|---|
| Tiguan 2.0 4Motion | 2017-2024 | 1 |
Other markets (1)
| Vehicle | Years | Pos. |
|---|---|---|
| Jetta 1.4 | 2017-2024 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
5QM121251AA Volkswagen Radiator | Genuine OEM is fitted on: Tiguan 2.0 4Motion 2017-2024; Jetta 1.4 2017-2024.
