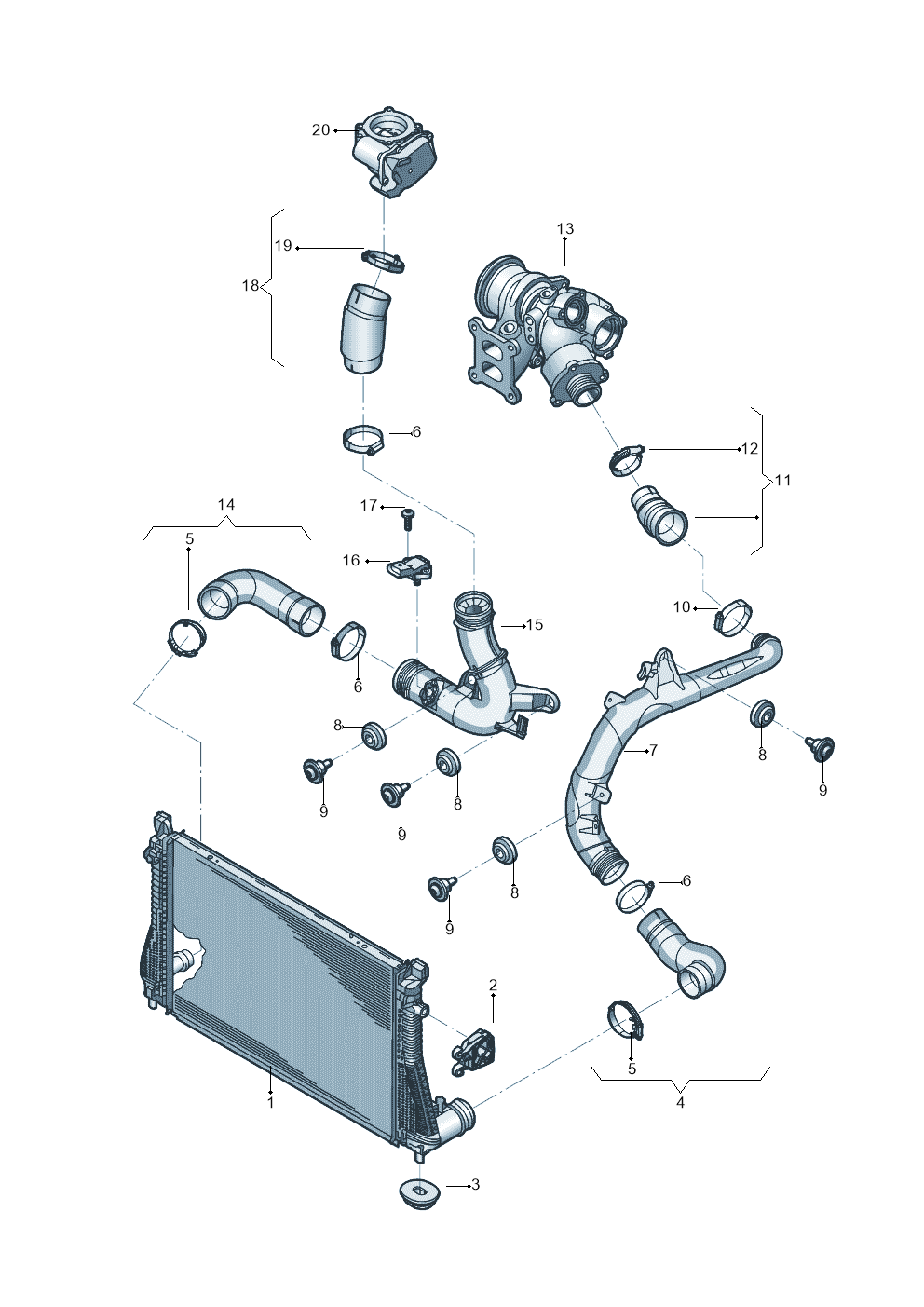

Charge Air Cooler exploded parts diagram — Tiguan 2.0 4Motion · 2017-2024, position 1 — Tiguan 2.0 4Motion · 2017-2024 · position 1Full diagram ↓

5QM145803B

5QM145803B Charge Air Cooler

Name: 5QM145803B Charge Air Cooler
Brand: Volkswagen
SKU: 5QM145803B
Price: 338.29 GBP
Availability: Discontinued

£338.29

£279.58 excl. VAT

Supersession roadoldest to newest

5QM145803B
Not stocked May 2022
You are here
5QM145803E
Current · not stocked

5QM145803BThis pageNot stocked
May 2022
5QM145803ECurrent · not stocked

Availability: No longer supplied under this number

Quantity:

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

3 vehicles

Charge Air Cooler — locate Charge Air Cooler in the official exploded view and explore the surrounding assembly.

Parts in this assembly30

Vehicle fitment table3

Europe (1)

Vehicle	Years	Pos.	Qty
Tiguan 2.0 4Motion	2017-2024	1	1

Other markets (2)

Vehicle	Years	Pos.	Qty
Jetta 1.4	2017-2024	1	1
POLO HATCH "ZA"06>	2005-	1	1
