5QM816411 A C Condenser With Fluid Reservoir
- 5QM816411This pageNot stocked
Apr 2018 - 5QM816411ANot stocked
Jan 2021 - 5QM816411BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 2 kg
- Shipping size (L × W × H)
- 71.8 × 39.8 × 3.8 cm
- Customs (HS) code
- 84189910
Parts diagram & fitment

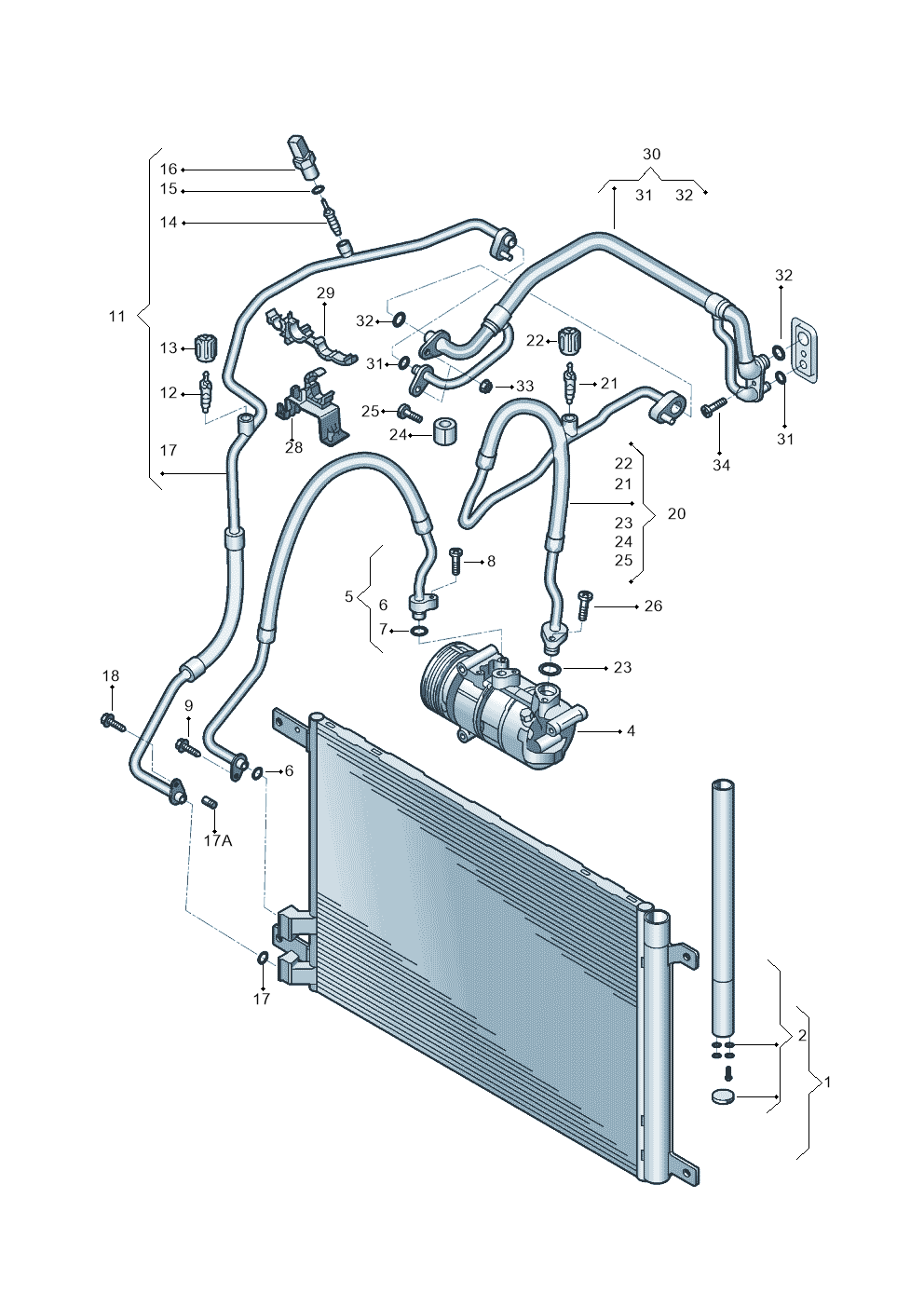

4 vehiclesA C Condenser With Fluid Reservoir — locate A C Condenser With Fluid Reservoir in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 2Insert 5Q0298403A
- 5Line 5Q0816721AD
- 5Line 5Q0816721AG
- 5Line 5Q0816721K
- 6Seal Ring 3D0260749C
- 7Seal Ring 4E0260749A
- 8Screw N10414402
- 9Bolt N10347103
- 11Line 5Q0820741B
- 11Line 5Q0820741C
- 12Valve 3D0820855A
- 12Valve 8E0820855
- 13Part 3D0820581
- 13Part 3C0820581
- 14Valve 8A0820855AA
- 15Seal Ring 7H0820896
- 16Sender 4H0959126B
- 16Sensor 5Q0959126A
- 17Seal Ring 4D0260749B
- 17APart N10420602
- 20Line 5Q0820743E
- 20Line 5Q0820743H
- 20Line 5Q0820743K
- 20Line 5Q0820743C
- 22Part 3C0820231
- 23Seal Ring 8E0260749C
- 28Bracket 5Q0820769
- 29Clip 5Q0820774
- 30Part 5Q1816738B
- 30Part 5Q1816738C
- 32Seal Ring 4E0260749B
- 33Collar Nut N01508210
- 34Bolt N91096801
Vehicle fitment table4
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| golf 1.6 | 2015-2019 | 1 | 1 |
| Golf 1.4 BlueMotion | 2014-2017 | 1 | 1 |
| Golf Estate 1.4 | 2014-2017 | 1 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| POLO HATCH "ZA"06> | 2005- | 1 |
Diagrams & fitment data powered by oemdiagrams.com
A C Condenser With Fluid Reservoir is fitted on: golf 1.6 2015-2019; Golf 1.4 BlueMotion 2014-2017; Golf Estate 1.4 2014-2017; POLO HATCH "ZA"06> 2005-.
