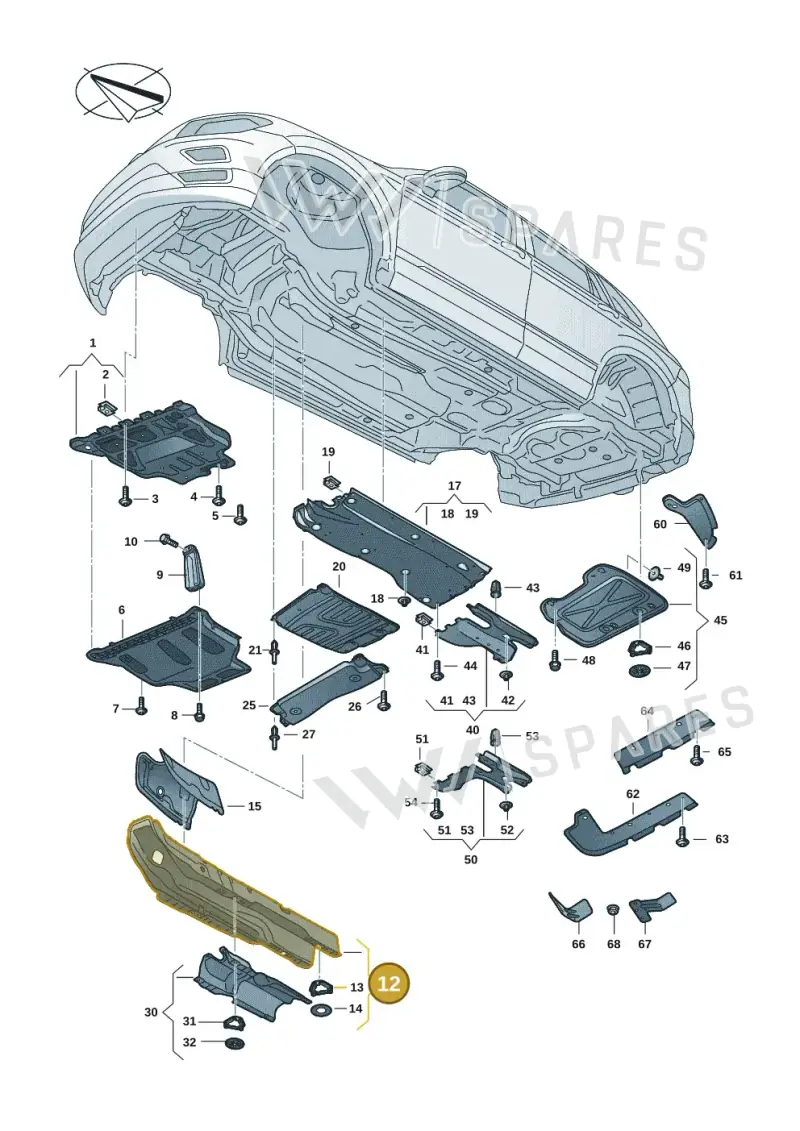

Number 12 marks the part’s position in the exploded view.
Product overview
Genuine OEM SEAT Heat Shield Seat, part number 5QS825661A. This heat shield seat is part of the underbody assembly, specifically located in the tunnel area. Its function is to shield sensitive components from excessive heat generated by the drivetrain. The part weighs 1.283 kg. Genuine OEM parts are manufactured to precise specifications, ensuring proper fitment and thermal protection.
Catalogue entry: HEAT SH. center.
Technical details
- Category
- Underbody & Splash Shields
- Customs (HS) code
- 87082990
- Manufacturer
- SEAT
- Product Type
- Genuine new auto parts
- Shipping weight
- 1.28 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 1X0
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesHeat Shield For Tunnel — locate 5QS825661A SEAT Heat Shield Seat | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly42
- 1Insulation 5QF825236
- 1Insulation 5QF825236A
- 2Part N90959101
- 3Bolt N90974701
- 4Bolt WHT000729A
- 5Spring Rivet 8E0825267
- 6UnderrunLeft5QF825901B
- 6UnderrunRight5QF825902C
- 8Bolt N0195307
- 9Bracket MtRight5Q0825922A
- 9Bracket MtLeft5Q0825921
- 10Bolt N10574702
- 12Heat Sh 5QS825661C
- 13Washer WHT003386
- 14Washer WHT001156
- 15Insulation 5QS825635
- 17TrimLeft5QS825201A
- 17TrimRight5QS825202A
- 18Collar Nut WHT000713
- 20Trim 5QF825230
- 20Trim 5QA825230
- 21Spring Rivet WHT008023
- 25Trim 5Q0825230J
- 27Spring Rivet N91245101
- 30Heat Sh 5QS825613
- 32Washer N90796502
- 40TrimLeft565825207
- 40TrimRight565825208
- 40Trim 5QF825206A
- 43Part WHT003491
- 45Heat Sh 5QF825701F
- 45Heat Sh 5QF825701J
- 45Heat Sh 5QF825701D
- 50TrimRight5QF825102B
- 50TrimLeft5QS825101A
- 50TrimRight5QS825102A
- 50TrimLeft5QF825101A
- 62Trim 57H825206
- 64Trim 57H825206A
- 66Bracket 565825135
- 67Bracket 57H825135A
- 68Collar Nut N01508210
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Kodiaq | 2024- | 12 | 1 | PR:0K0,0K4+ | |
| Tarraco FR | 2018-2024 | 12 | 1 | 1X0 |
