United States
5U0609526B Brake Shoe With Lining
- 3096095261Not stocked
Jun 2011 - 5U0609526BThis pageNot stocked
Sep 2012 - 5U0698525BDiscontinued
Mar 2021
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

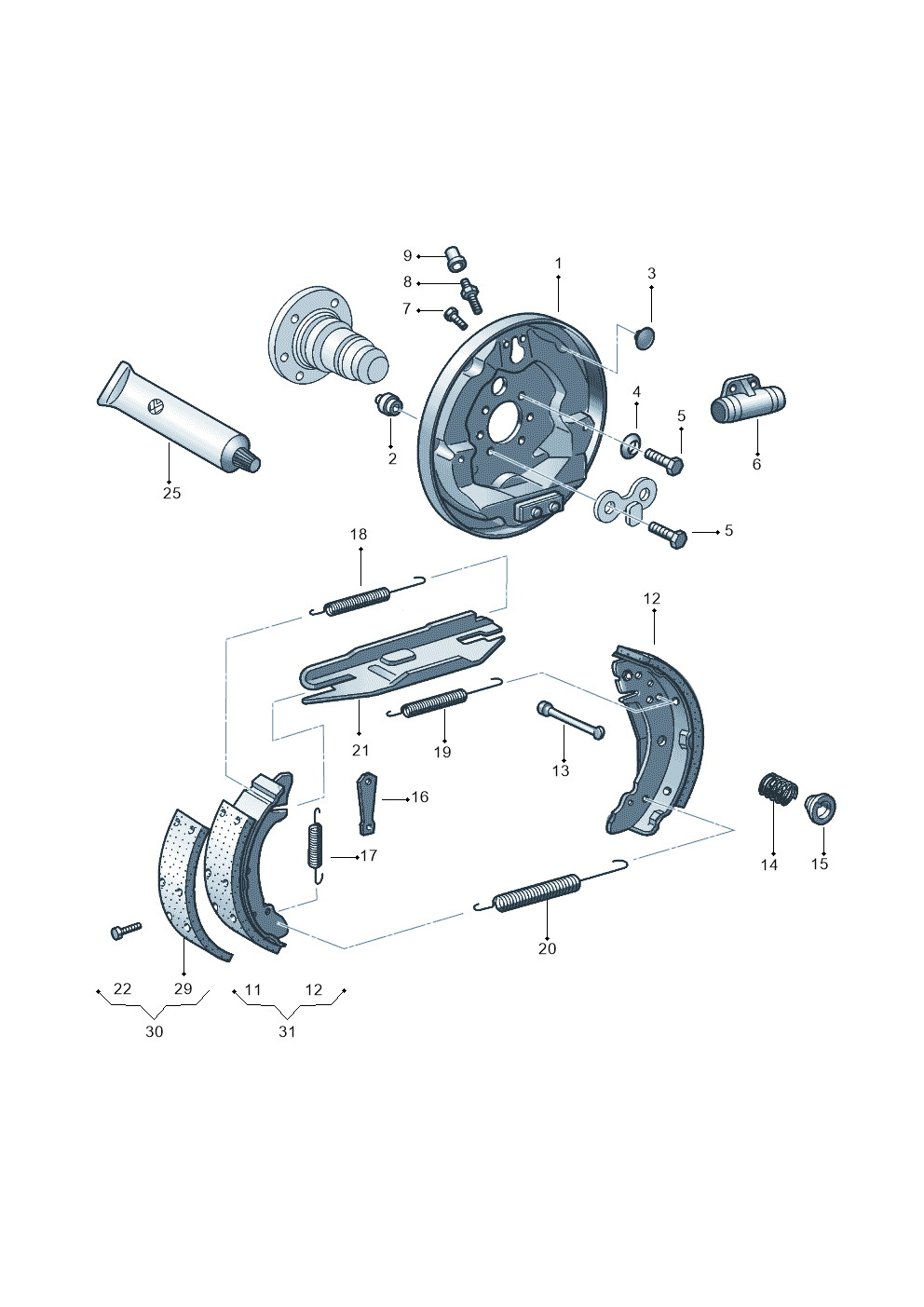

6 vehiclesBrake Shoe With Lining — locate Brake Shoe With Lining in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly48
- 1Back PlateLeft5U0609425B
- 1Back PlateLeft5U0609425C
- 1Cov PlateRight5U0609426A
- 1Back PlateRight5U0609426B
- 1Back PlateRight5U0609426C
- 1Cov PlateLeft5U0609425A
- 4Lock Ring 305501119A
- 5Bolt 3076093871
- 6Brake Cyli 5U0611053A
- 6Brake Cyli 6QE611053
- 6Brake Cyli 5U0611053
- 7Screw N90818302
- 8Valve 3A0611475
- 9Part 211611483
- 11Brake ShoeRight1H0609526D
- 11Brake ShoeLeft5U0609525B
- 11Brake ShoeLeft1H0609525D
- 12Brake ShoeRight1H0609528D
- 12Brake ShoeRight1H0698520X
- 12Brake ShoeLeft5U0609527B
- 12Brake ShoeRight5U0609528A
- 12Brake ShoeRight5U0609528B
- 12PartRightJZZ698520
- 13Part WHT001953
- 14Press Spring 171609583A
- 15Springseat 3056097091
- 16Wedge 171609705
- 17Spring 171609715
- 18Spring 305609707A
- 18Spring 3256097071
- 18Spring 357609707A
- 19Spring 305609711A
- 19Spring 3256097111
- 19SpringLeft357609711A
- 19SpringRight357609712A
- 20Spring 5U0609717
- 20Spring 171609717
- 21Push BarRight171609820B
- 21Push BarLeft331609819A
- 21Push BarRight331609820A
- 21Push BarRight357609820
- 21Push BarLeft357609819
- 22Rivet N0136342
- 25Paste G000650
- 29Brk Lining 5U0698137
- 29Part 5Z0698075B
- 29Brk Lining 5Z0698075
- 31Brake Shoe 5U0698525B
Vehicle fitment table6
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Voyage | 2011- | 11 | 1 | PR:1KB+1AC | 1KB |
| parati | 2010- | 5 | 1 | 1AC | |
| GOL 2P/4P M.06> | 2005- | 5 | 1 | 1AC |
Platform / generic diagrams (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 5U0 platform | 11 | 1 | PR:1AC+1KB | 1KB | |
| 5U0 platform | 11 | 1 | 1AC | ||
| 377 platform | 5 | 1 | 1AC |
Diagrams & fitment data powered by oemdiagrams.com
Brake Shoe With Lining is fitted on: Voyage 2011-; parati 2010-; GOL 2P/4P M.06> 2005-; 5U0 platform; 377 platform.
