5WA815097 Coolant Pipe With Coolant Hose
- 5WA815097This pageNot stocked
Mar 2024 - 5WA815097ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

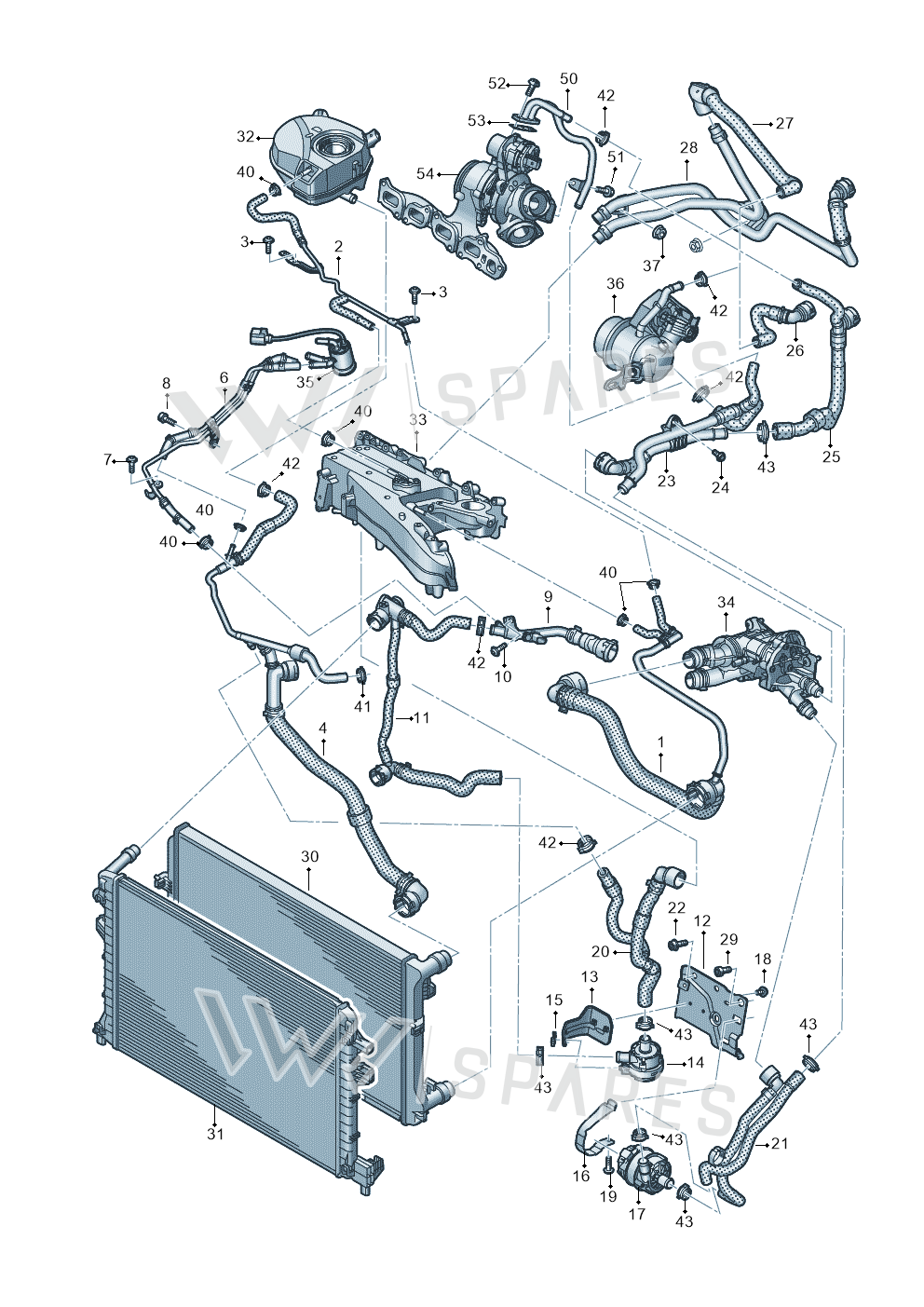

7 vehiclesCoolant Pipe With Coolant Hose — locate Coolant Pipe With Coolant Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly40
- 1Hose 3Q0122101CH
- 1Hose 3Q0122101CK
- 1Hose 3Q0122101CQ
- 2Water Pipe 3Q0121064AM
- 2Water Pipe 3Q0121064BE
- 3Bolt N90737107
- 4Hose 3Q0122051BT
- 4Hose 3Q0122051CD
- 6Water Pipe 05L121444C
- 7Bolt N10683901
- 8Bolt N10406504
- 9Water Pipe 05L121050C
- 10Bolt N10451405
- 11Hose 3Q0121049AP
- 12Bracket 3Q0121093BS
- 13Part 3Q0121093BT
- 14Water Pump 3Q0965567E
- 16Part 3Q0121093BL
- 17Water Pump 04L965567A
- 18Bolt N90944604
- 20Hose 3Q0122058E
- 20Hose 3Q0122058G
- 21Hose 3Q0121156B
- 22Screw N10698101
- 23Water Pipe 3Q0121064AB
- 24Screw N10619001
- 25Hose 3Q0122073AC
- 25Hose 3Q0122073AA
- 26Hose 3Q0122157AF
- 27Hose 3Q0122157AN
- 29Screw N10717701
- 40Clamp N90686701
- 40Part N90770201
- 41Clamp N90926401
- 42Clamp N90686902
- 43Clamp N90687001
- 50Water Pipe 05L121469A
- 51Bolt N90592705
- 52Bolt N10335206
- 53Seal 05L121290
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf 2.0 BlueMotion | 2019-2024 | 28 | 1 | |
| Octavia | 2019-2024 | 28 | 1 | |
| Audi A3 Sportback | 2019-2021 | 28 | 1 | D |
| T-Roc BlueMotion | 2017-2024 | 28 | 1 | |
| Arteon | 2017-2023 | 1 | 1 | |
| Audi Q2 2.0 TDI | 2016-2018 | 28 | 1 | D |
| Superb Combi | 2015-2024 | 28 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe With Coolant Hose is fitted on: Golf 2.0 BlueMotion 2019-2024; Octavia 2019-2024; Audi A3 Sportback 2019-2021; T-Roc BlueMotion 2017-2024; Arteon 2017-2023; Audi Q2 2.0 TDI 2016-2018; Superb Combi 2015-2024.
