6C0820743AM Refrigerant Line
- 6C0820743SNot stocked
Apr 2015 - 6C0820743AHNot stocked
Dec 2015 - 6C0820743AMThis pageNot stocked
Sep 2016 - 6C0820743ARCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

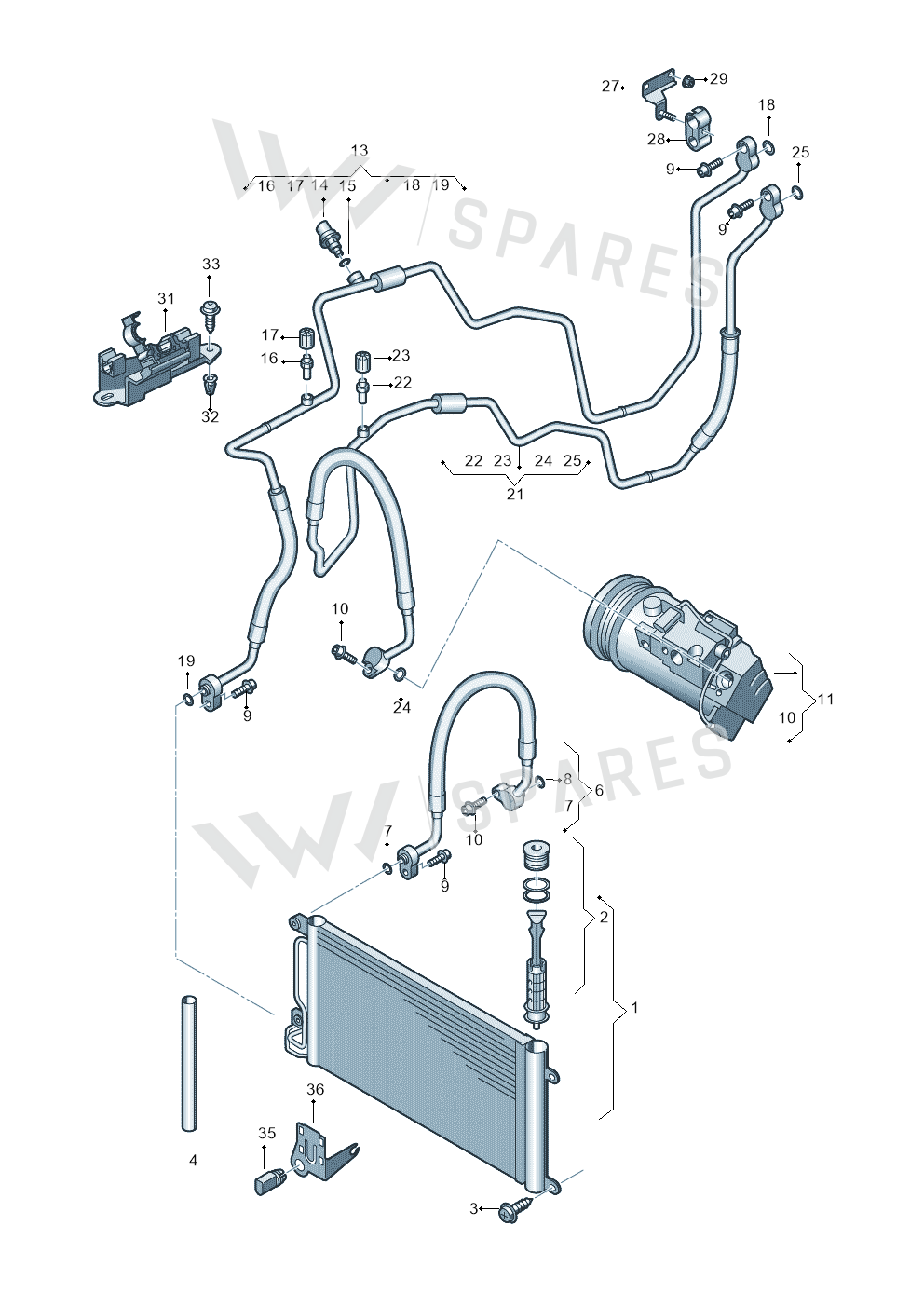

6 vehiclesRefrigerant Line — locate Refrigerant Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1A C Conden 6R0820411AA
- 1A C Conden 6R0820411Q
- 1A C Conden 6C0816411A
- 1A C Conden 6C0816411B
- 2Part 8X0898191A
- 2Part 6R0898191
- 3Bolt N90817003
- 4Seal 321820061D
- 6Line 6C0820721H
- 6Line 6C0820721J
- 6Line 6C0820721L
- 6Line 6C0820721P
- 6Line 6C0820721R
- 6Line 6C0820721G
- 6Line 6C0816721
- 6Line 6C0816721A
- 6Line 6C0816721B
- 6Line 6C0816721C
- 6Line 6C0816721D
- 6Line 6C0816721G
- 7Seal Ring 4E0260749A
- 9Screw N10414402
- 13Line 6C0820741AB
- 13Line 6C0820741AC
- 13Line 6C0820741AD
- 13Line 6C0820741AE
- 13Line 6C0820741P
- 13Line 6C0820741AA
- 13Line 6C0816741H
- 13Line 6C0816741J
- 13Line 6C0816741K
- 13Line 6C0816741L
- 13Line 6C0816741M
- 13Line 6C0816741Q
- 14Sensor 5K0959126
- 15Seal Ring 8E0260749
- 16Valve 8E0820855
- 17Part 3D0820581
- 17Part 3C0820581
- 17Protective Cap 5Q0816581
- 19Seal Ring 3D0260749C
- 21Line 6C0820743AE
- 21Line 6C0820743AF
- 21Line 6C0820743AH
- 21Line 6C0820743AL
- 21Line 6C0820743AQ
- 21Line 6C0820743AR
- 21Line 6C0820743AD
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Ibiza Stylance | 2015- | 21 | 1 | T0H | |
| Toledo Reference | 2015-2019 | 4 | 1 | T0H | |
| fabia | 2014-2022 | 21 | |||
| Audi A1 Sportback | 2014-2018 | 4 | |||
| Polo 1.4 BlueMotion | 2014-2017 | 21 | |||
| Rapid | 2012-2022 | 4 |
Diagrams & fitment data powered by oemdiagrams.com
Refrigerant Line is fitted on: Ibiza Stylance 2015-; Toledo Reference 2015-2019; fabia 2014-2022; Audi A1 Sportback 2014-2018; Polo 1.4 BlueMotion 2014-2017; Rapid 2012-2022.
