Number 19 marks the part’s position in the exploded view.
Product overview
Genuine OEM Porsche Brake Line Bracket, part number 6N0611797D. This bracket holds the brake line in place, ensuring it is correctly routed and secured within the vehicle's chassis. Proper mounting prevents chafing and damage to the brake line, which is critical for safe braking performance. Genuine OEM brake line brackets are manufactured to precise specifications to ensure a secure fit and durability under demanding conditions.
Catalogue entry: BRACKET 3 point.
Technical details
- Category
- Brakes
- Manufacturer
- Porsche
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 8T1
- 8T4
- 8T0
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
80 vehiclesRetainer For Brake Pipe — locate 6N0611797D Porsche Brake Line Bracket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly23
- 1Brake Pipe 4GD614705S
- 1Part 4GD614705R
- 2Brake Pipe 4GD614706S
- 2Part 4GD614706R
- 3Retainer 4G0614709H
- 4Pop Rivet N91152701
- 6Brake Pipe 4GD614723M
- 7Part 4GD614724N
- 8Grommet 8K0614769B
- 9Grommet 4G0614769A
- 10Brake Pipe 4GD614725P
- 11Brake Pipe 4GD614726Q
- 12Retainer 8K0611797G
- 13Bracket 4G0611797
- 15Bracket 8K0611797F
- 16RetainerRight4G0611846N
- 16RetainerLeft4G0611845N
- 17Pop Rivet N90286604
- 19Brake Hose 4G0611707J
- 20Spring 8K0611715
- 21Retainer 4G0611845B
- 22Retainer 4G0611846B
- 23Bolt N10421304
Compatible / alternative parts(11)
Vehicle fitment table81
Europe (57)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A7 Sportback | 2014-2018 | 14 | 1 | L0L | |
| audi a6 qu. 3.0 tdi | 2014-2018 | 14 | 1 | L0L | |
| Audi RS6 Avant | 2013-2018 | 14 | 1 | 2MA | |
| Audi RS7 Sportback | 2013-2018 | 14 | 1 | 2MA | |

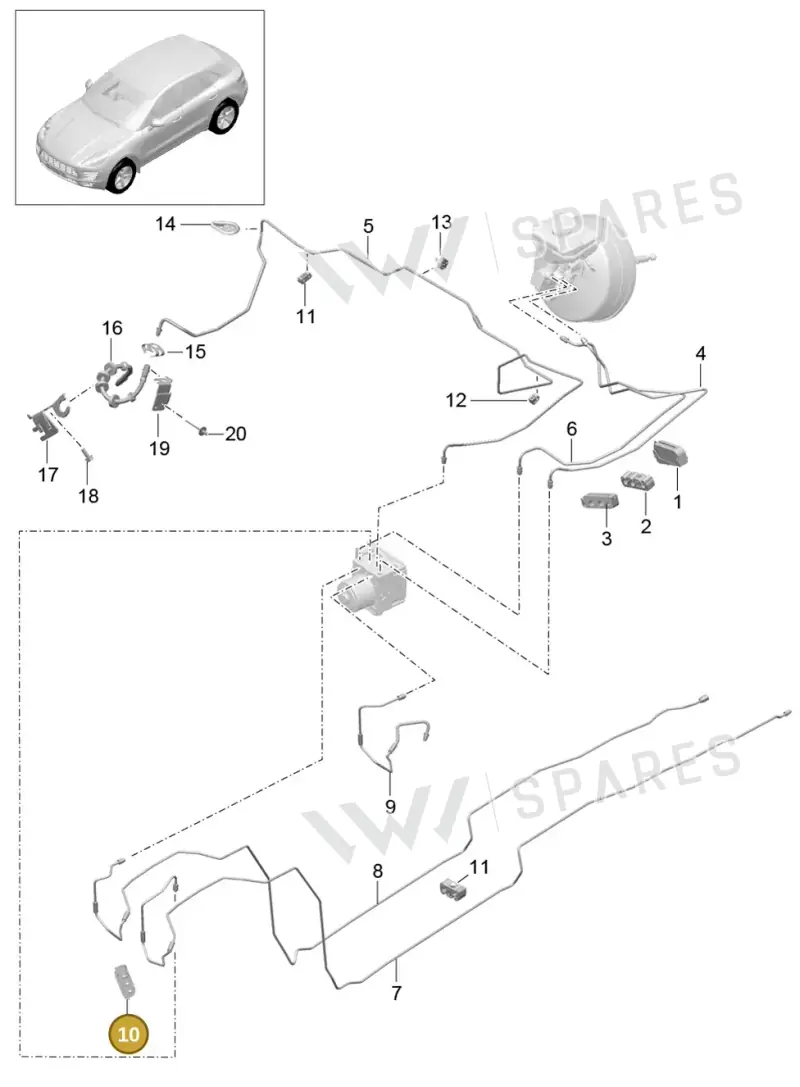

| Macan GTS | 2013-2018 | 10 | 1 | ||
| Audi A6 Av. qu. 3.0 | 2012-2018 | 14 | 1 | ||

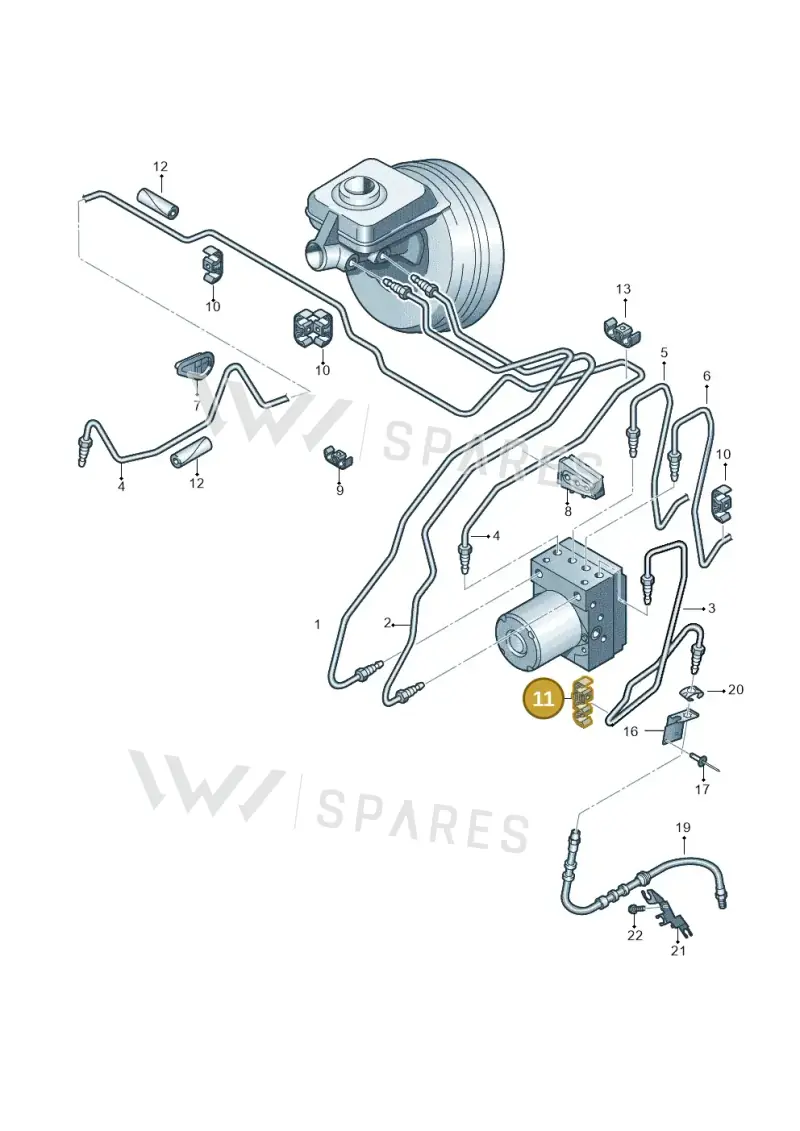

| Audi Q5 qu. 2.0 TDI | 2012-2017 | 11 | |||
| phaeton 4motion | 2010-2016 | 19 | X | ||
| Audi A7 Sportback | 2010-2015 | 14 | 1 | L0L | |
| audi a6 2.0 tdi | 2010-2015 | 14 | 1 | ||
| Roomster | 2010-2015 | 21 | X | PR | |
| Audi TTS Coupe 2.0 | 2010-2014 | 18 | 2 | L0R | |
| Fabia Scout | 2010-2014 | 21 | X | PR | |
| Audi Q5 qu. 2.0 | 2009-2018 | 11 | 1 | ||
| Audi TTRS Plus Coupe | 2009-2014 | 18 | 2 | L0R | |
| Audi Q5 qu. 2.0 TDI | 2008-2012 | 11 | |||
| phaeton 4motion | 2008-2010 | 19 | X | ||
| Polo | 2008-2009 | 11, 16 | |||
| PHAETON 08> | 2007- | 19 | X | ||
| Audi TT Coupe/Roadster 08> | 2007- | 18 | 2 | L0R | |

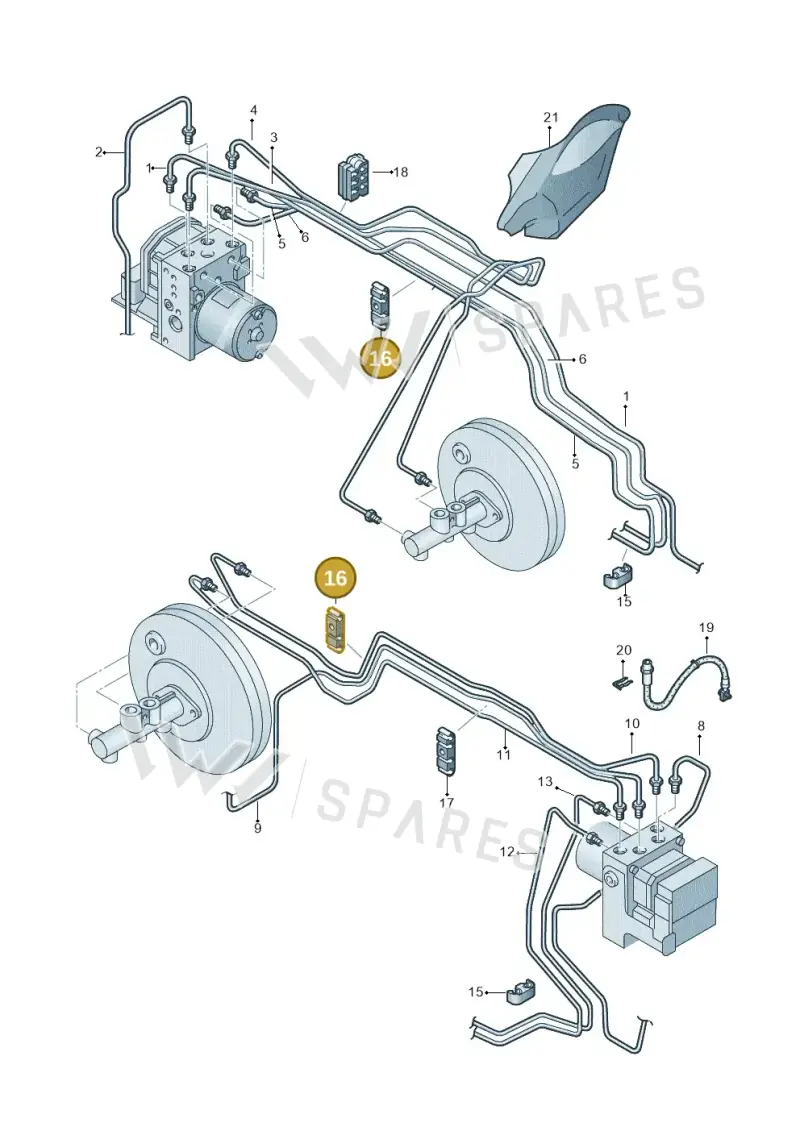

| ROOMSTER 06> | 2006- | 16 | X | PR | |
| FABIA/COMBI NF 07> | 2006- | 16 | X | PR | |
| POLO | 2005- | 11, 16 | |||
| New Beetle 06> | 2005- | 18 | |||
| New Beetle Cabrio. 06> | 2005- | 18 | |||
| IBIZA 06> | 2005- | 16 | X | ||
| CORDOBA 06> | 2005- | 16 | X | ||
| FABIA/COMBI 05> | 2004- | 11, 16 | |||
| FOX 04> | 2003- | 15 | 1 | ||
| Phaeton (lang) | 2003-2006 | 19 | X | ||
| New Beetle Cabrio. | 2003-2005 | 18 | 2 | ||
| LUPO/3L TDI | 2003-2005 | 17 | X | ||
| AROSA | 2003-2004 | 14, 17 | |||
| Jetta/Wagon | 2002-2006 | 18 | X | ||
| CORDOBA/SE241 | 2002-2005 | 11, 16 | X | ||
| TOLEDO/LEON/LEON-4 | 2001-2006 | 18 | |||
| POLO | 2001-2005 | 11, 16 | |||
| New Beetle | 2001-2005 | 18 | 2 | ||
| IBIZA | 2001-2005 | 11, 16 | X | ||
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 18 | X | ||
| Jetta Wagon 02 | 2001-2002 | 18 | X | ||
| Jetta Wagon | 2001-2001 | 18 | X | ||
| OCTAVIA/COMBI/4X4 01> | 2000- | 18 | X | PR | |
| AUDI A3/S3/QUATTRO | 2000-2003 | 18 | X | G0 | |
| FABIA/COMBI | 1999-2004 | 11, 16 | |||
| Audi TT Coupe/Roadster | 1999-2002 | 36 | X | ||
| CORDOBA/VARIO | 1999-2002 | 15, 10 | |||
| IBIZA | 1999-2002 | 15, 10 | |||
| POLO CLASSIC/VARIANT | 1999-2001 | 15, 10 | |||
| POLO | 1999-2001 | 17 | X | ||
| LUPO/3L TDI | 1998-2003 | 17 | X | ||
| New Beetle | 1998-2001 | 18 | X | ||
| TOLEDO/LEON/LEON-4 | 1998-2001 | 18 | X | ||
| Golf | 1998-2000 | 18 | X | L0 | |
| AROSA | 1997-2003 | 17 | X | ||
| AUDI A3/S3/QUATTRO | 1996-2000 | 18 | X | ||
| OCTAVIA/COMBI/4X4 | 1996-2000 | 18 | X |
Other markets (20)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Phideon | 2016-2023 | 14 | 1 | 0K0 | |
| audi a6 1.8 | 2015-2019 | 14 | 1 | L0L | |
| Audi A6 L 2.0 | 2011-2013 | 14 | 1 | L0L | |
| Jetta City "Mex"08> | 2007- | 18 | 2 | ||
| POLO HATCH "BR."07> | 2006- | 15 | 1 | PR:1AC | LOL,TC0,T1J,T1Q,T9V,0CX,1AC |
| Jetta City "MEX"05>07 | 2006-2007 | 18 | 2 | ||
| POLO CLASSIC "ZA"05> | 2005- | 16 | |||
| AUDI A3 "BR."M.06> | 2005-2006 | 18 | X | ||
| Golf 'R32' n. "USA" | 2004-2004 | 18 | X | ||
| POLO CLASSIC "CN"03>06 | 2003-2006 | 11, 16 | |||
| POLO CLASSIC (AUS) "CN"03>06 | 2003-2006 | 11, 16 | |||
| POLO CLASSIC "ZA"03>05 | 2003-2005 | 11, 16 | |||
| Golf "BR.","USA"03>07 | 2002-2007 | 18 | X | ||
| POLO LIM.(SEDAN) "BR" | 2002-2006 | 15 | X | PR:1AT | L0 |
| POLO-BRASIL | 2002-2006 | 15 | X | L0L,T1J,T1Q,T9V,0CX,1AC,1AT | |
| Jetta USA | 2001-2005 | 18 | 2 | ||
| Golf BR/US | 2001-2002 | 18 | X | ||
| AUDI A3-BRASIL. | 2000-2005 | 18 | X | ||
| Golf BR/US | 1999-2001 | 18 | X | ||
| Jetta "USA"99>01 | 1998-2001 | 18 | X |
Platform / generic diagrams (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 1C0 platform | 18 | X | |||
| 1J0 platform | 18 | X | |||
| 1J0 platform | 18 | X |
Listed without a diagram position (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| POLO | 1994-1999 | X |
