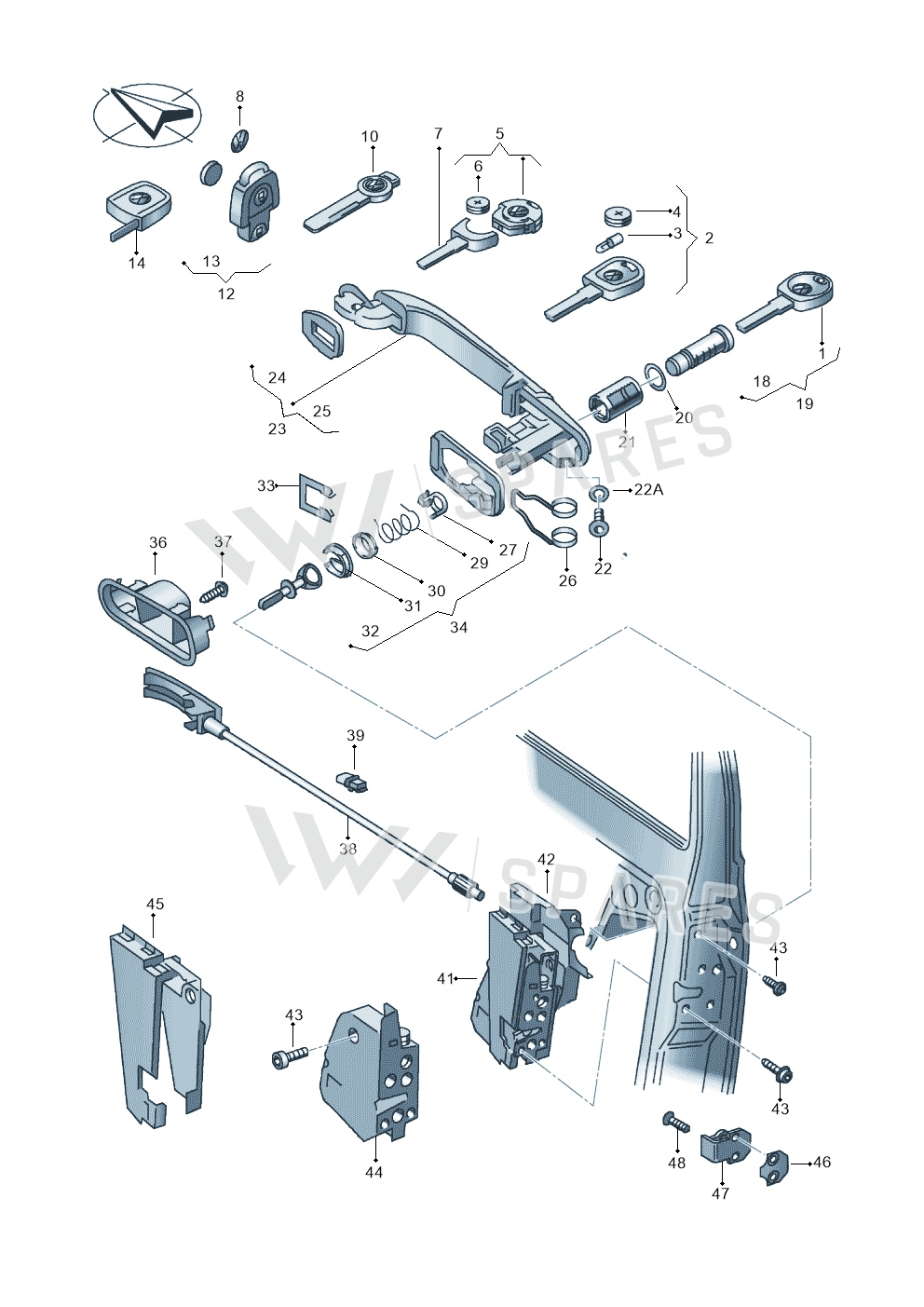

Underlay exploded parts diagram — Sharan · 2008-2010, position 24
Exploded view
Sharan · 2008-2010 · position 24Full diagram ↓
6N0837209

6N0837209 Underlay

£1.21
£1.00 excl. VAT
Supersession roadoldest to newest
  1. 6N0837209This pageNot stocked
    Jun 1994
  2. 6N0837209B41Current number
Current part number6N0837209B41What the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

27 vehicles

Underlay — locate Underlay in the official exploded view and explore the surrounding assembly.

Parts in this assembly45
Vehicle fitment table27

Europe (23)

VehicleYearsPos.QtyPR
Sharan2008-2010242L0L
Alhambra2006-2010242
SHARAN/4MOTION2005-242L0L
CADDY-KOMBI/KASTENW. 06>2005-242
POLO CLASSIC 06>2005-25, 222
ALHAMBRA/4MOTION2005-242
SHARAN/4MOTION2002-2005242L0L
ALHAMBRA/4MOTION2002-2005242
SHARAN/4MOTION2000-2002242
ALHAMBRA/4MOTION2000-2002242
CORDOBA/VARIO1999-200225, 222
IBIZA1999-200225, 222
POLO CLASSIC/VARIANT1999-200125, 222
POLO1999-200118, 212L0L
caddy combi./del.van1998-2005252
ALHAMBRA1996-2000262
POLO CLASSIC/VARIANT1996-199924, 25, 222
IBIZA/CORDOBA/VARIO1996-199925, 222
CADDY-KOMBI/KASTEN1995-2003252
INCA (SEAT-VAN)1995-2003252
SHARAN/SYNCRO1995-2000262
Polo Classic 961995-199624, 222
POLO1994-199918, 212

Other markets (1)

VehicleYearsPos.QtyPR
POLO CLASS./PL. "ZA"1996-200325, 222

Platform / generic diagrams (3)

VehicleYearsPos.QtyPR
6K0 platform24, 25, 222
6K0 platform252
6K0 platform25, 222

Diagrams & fitment data powered by oemdiagrams.com

Underlay is fitted on: Sharan 2008-2010; Alhambra 2006-2010; SHARAN/4MOTION 2005-; CADDY-KOMBI/KASTENW. 06> 2005-; POLO CLASSIC 06> 2005-; ALHAMBRA/4MOTION 2005-; SHARAN/4MOTION 2002-2005; ALHAMBRA/4MOTION 2002-2005; SHARAN/4MOTION 2000-2002; ALHAMBRA/4MOTION 2000-2002; CORDOBA/VARIO 1999-2002; IBIZA 1999-2002; POLO CLASSIC/VARIANT 1999-2001; POLO 1999-2001; caddy combi./del.van 1998-2005; ALHAMBRA 1996-2000; POLO CLASSIC/VARIANT 1996-1999; IBIZA/CORDOBA/VARIO 1996-1999; CADDY-KOMBI/KASTEN 1995-2003; INCA (SEAT-VAN) 1995-2003; SHARAN/SYNCRO 1995-2000; Polo Classic 96 1995-1996; POLO 1994-1999; POLO CLASS./PL. "ZA" 1996-2003; 6K0 platform.
