6R2614740E Brake Pipe
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

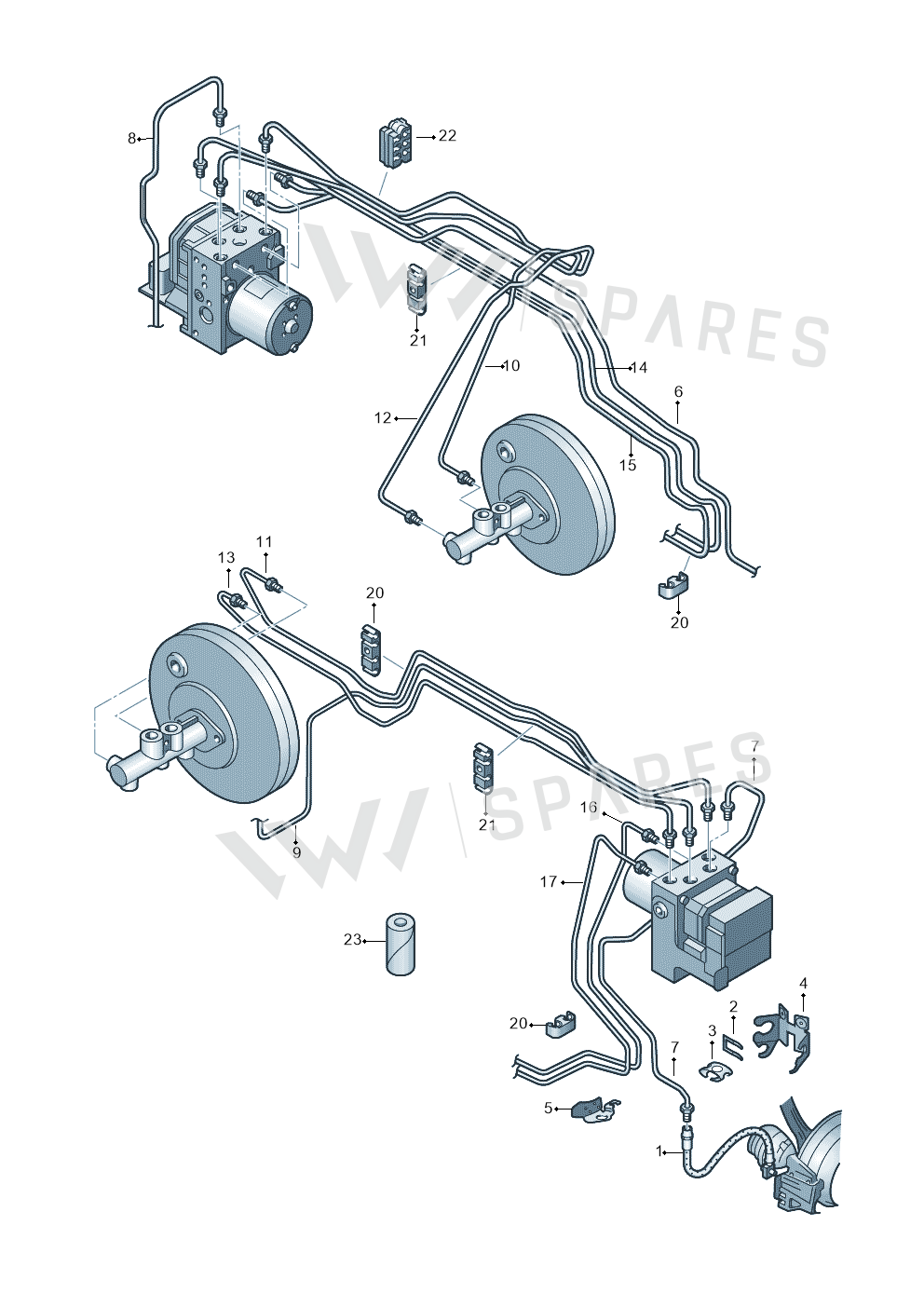

5 vehiclesBrake Pipe — locate Brake Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Brake Hose 6R0611701B
- 1Brake Hose 6R0611701A
- 2Bracket 191611715
- 3Spring 4D0611715B
- 4Retainer 6R0611841A
- 5RetainerRight6Q0611846E
- 5RetainerLeft6Q0611845E
- 6Brake PipeLeft6R1614723A
- 7Brake PipeLeft6Q2614723G
- 8Brake PipeRight6R1614724
- 9Brake Pipe 6Q2614724K
- 9Brake Pipe 6Q2614724L
- 9Brake Pipe 6R2614724D
- 9Brake PipeRight6R2614724
- 10Brake Pipe 6R1614739C
- 10Brake Pipe 6R1614739D
- 10Brake Pipe 6R1614739E
- 10Brake Pipe 6R1614739F
- 10Brake Pipe 6R1614739G
- 10Brake Pipe 6R1614739H
- 10Brake Pipe 6R1614739J
- 10Brake Pipe 6R1614739B
- 11Brake Pipe 6R2614739A
- 11Brake Pipe 6R2614739B
- 11Brake Pipe 6R2614739C
- 11Brake Pipe 6R2614739D
- 11Brake Pipe 6R2614739E
- 11Brake Pipe 6R2614739F
- 11Brake Pipe 6R2614739G
- 11Brake Pipe 6R2614739
- 12Brake Pipe 6R1614740C
- 12Brake Pipe 6R1614740D
- 12Brake Pipe 6R1614740E
- 12Brake Pipe 6R1614740G
- 12Brake Pipe 6R1614740H
- 12Brake Pipe 6R1614740J
- 12Brake Pipe 6R1614740B
- 12Brake Pipe 6R1614740F
- 13Brake Pipe 6R2614740A
- 13Brake Pipe 6R2614740B
- 13Brake Pipe 6R2614740C
- 13Brake Pipe 6R2614740D
- 13Brake Pipe 6R2614740F
- 13Brake Pipe 6R2614740G
- 13Brake Pipe 6R2614740
- 14Brake PipeLeft6R1614741A
- 15Brake PipeRight6R1614742A
- 16Brake PipeRight6Q2614741K
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Ibiza Reference | 2011-2012 | 13 | 1 | PR:1AT | |
| Roomster | 2010-2015 | 13 | 1 | PR:1AT | |
| Fabia Scout | 2010-2014 | 13 | 1 | PR:1AT | |
| Polo | 2009-2012 | 13 | 1 | PR | :1A |
| Ibiza Reference | 2008-2011 | 13 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Brake Pipe is fitted on: Ibiza Reference 2011-2012; Roomster 2010-2015; Fabia Scout 2010-2014; Polo 2009-2012; Ibiza Reference 2008-2011.
