6X0877565 Guide Piec
- 6X0877565This pageNot stocked
Mar 2007 - 7H0877565Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

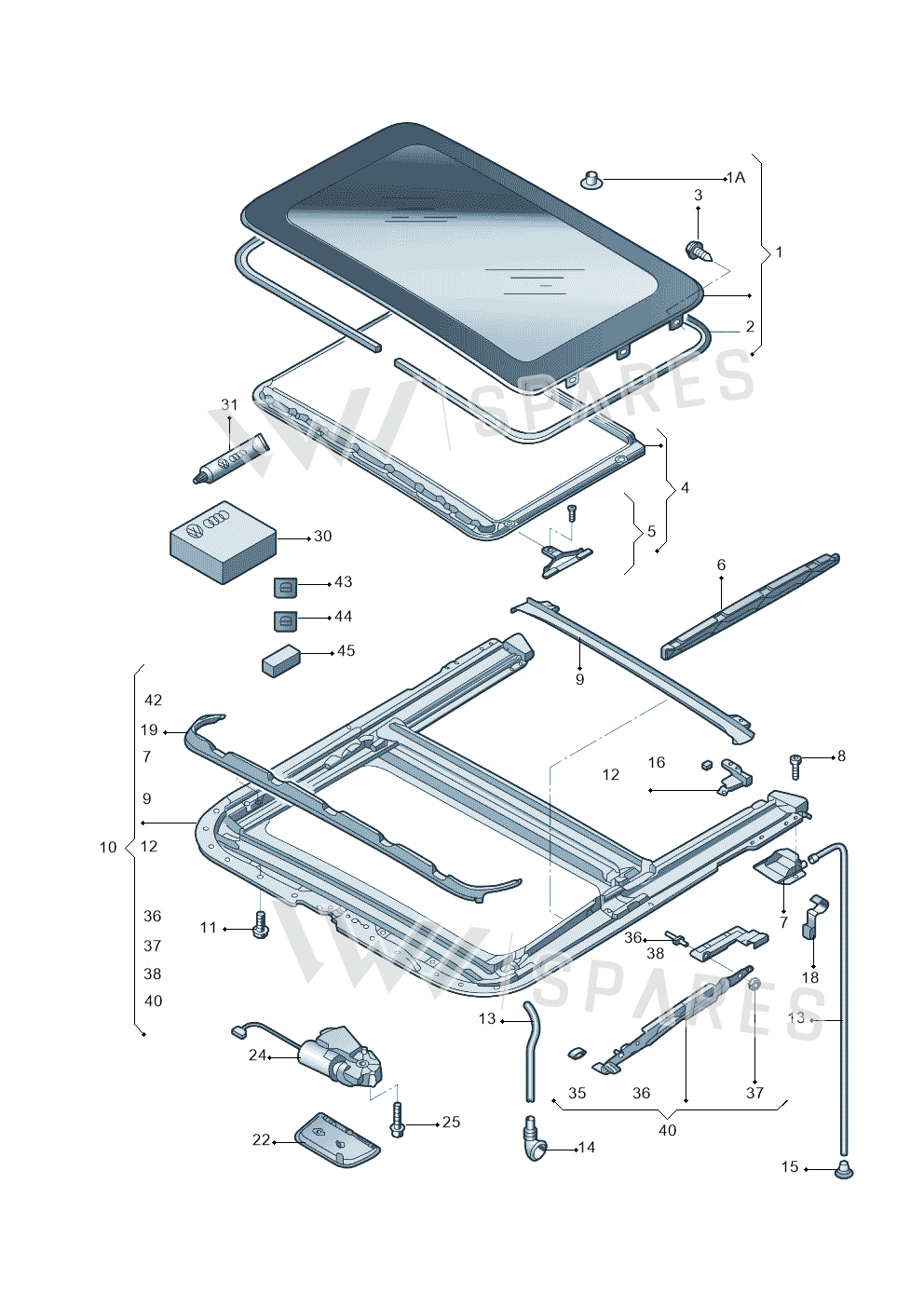

12 vehiclesGuide Piec — locate Guide Piec in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Glasspanel 1U0877071A
- 1ABuffer 6X0087665
- 2Seal 6X0877209
- 3Bolt 8D0877721B
- 4Frame 1ZD877255
- 6PanelRight6X0877790
- 6PanelLeft6X0877789
- 7End Piece 1U0898200
- 9Channel 1U0877633
- 10Frame 1U0877049A
- 11Bolt N90566603
- 12Repair Kit 6X0898481
- 13HoseLeft5J6877203A
- 13HoseRight5J6877204
- 13Hose 5J0877231B
- 14Drain Tube 8E0877242
- 15Valve 1K0877236
- 15Valve 1Z9877236
- 18Clip 3B7877237
- 19Deflector 6X0877651
- 22Cover 1Z0877829B
- 25Bolt N90884801
- 30Strip DCN486020Z1
- 31Grease GCN000450Z3
- 36Part WHT000162
- 37Ut Hexagon Nut Self-locking Hexagon Nut N0111812
- 38Guide 6X0898015
- 40Coulisse G 6X0898153
- 42Repair Kit 6X0898658
- 43Bracket 1K6877244
- 44Felt Strip 6Y0867595C
- 45Underlay 533957751
Vehicle fitment table12
Europe (8)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Fabia Jingrui | 2008-2014 | 5 | 4 | 3FE |
| OCTAVIA/COMBI/4X4 04> | 2004- | 5 | 1 | |
| FABIA/COMBI 05> | 2004- | 5 | 1 | |
| AROSA | 2003-2004 | 5 | 4 | |
| FABIA/COMBI | 1999-2004 | 5 | 1 | |
| LUPO/3L TDI | 1998-2003 | 5 | 4 | |
| AROSA | 1997-2003 | 5 | 4 | |
| OCTAVIA/COMBI/4X4 | 1996-2000 | 5 | 1 |
Other markets (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| New Polo (SVW) | 2010-2019 | 5 | 4 | 3FE |
| OCTAVIA "CN."07> | 2007- | 5 | 4 | 3FE |
| SANTANA 3000 "CN"04> | 2004- | 5 | 4 | 3FE |
| SANTANA 2000 "CN"96>04 | 1996-2004 | 5 | 4 |
Diagrams & fitment data powered by oemdiagrams.com
Guide Piec is fitted on: Fabia Jingrui 2008-2014; OCTAVIA/COMBI/4X4 04> 2004-; FABIA/COMBI 05> 2004-; AROSA 2003-2004; FABIA/COMBI 1999-2004; LUPO/3L TDI 1998-2003; AROSA 1997-2003; OCTAVIA/COMBI/4X4 1996-2000; New Polo (SVW) 2010-2019; OCTAVIA "CN."07> 2007-; SANTANA 3000 "CN"04> 2004-; SANTANA 2000 "CN"96>04 1996-2004.
