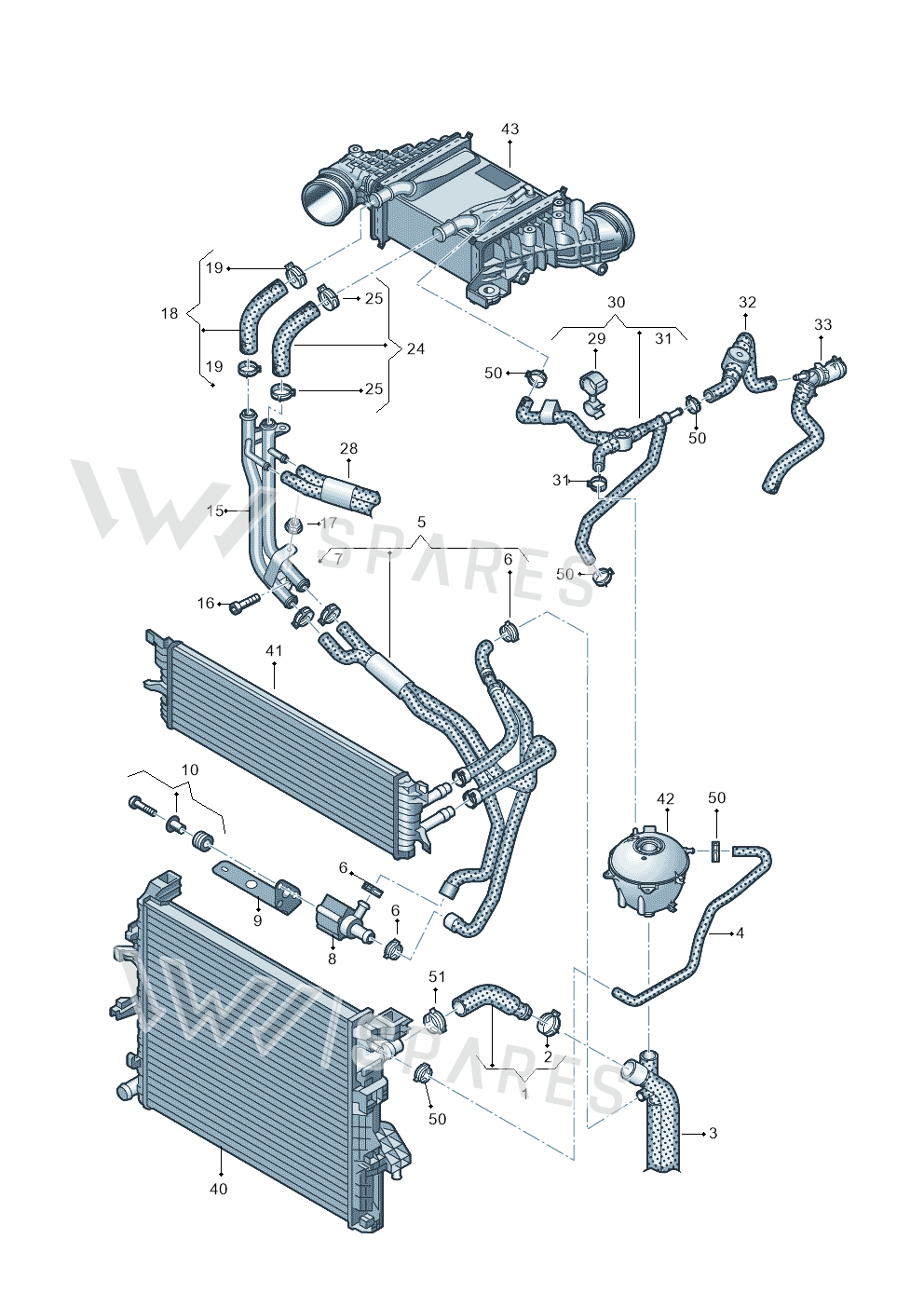

Coolant Hose With Valve exploded parts diagram — transport. multivan · 2019-2024, position 32
Exploded view
transport. multivan · 2019-2024 · position 32Full diagram ↓
7E0122447M

7E0122447M Coolant Hose With Valve

£31.88
£26.35 excl. VAT
Supersession roadoldest to newest
  1. 7E0122447KNot stocked
    Jan 2017
  2. 7E0122447MThis pageNot stocked
    Jan 2017
  3. 7E0122447QCurrent number
Current part number7E0122447QWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

2 vehicles

Coolant Hose With Valve — locate Coolant Hose With Valve in the official exploded view and explore the surrounding assembly.

Parts in this assembly26
Vehicle fitment table2

Europe (2)

VehicleYearsPos.QtyRemark
transport. multivan2019-2024321
caravelle2019-2024321PR:9AH

Diagrams & fitment data powered by oemdiagrams.com

Coolant Hose With Valve is fitted on: transport. multivan 2019-2024; caravelle 2019-2024.
