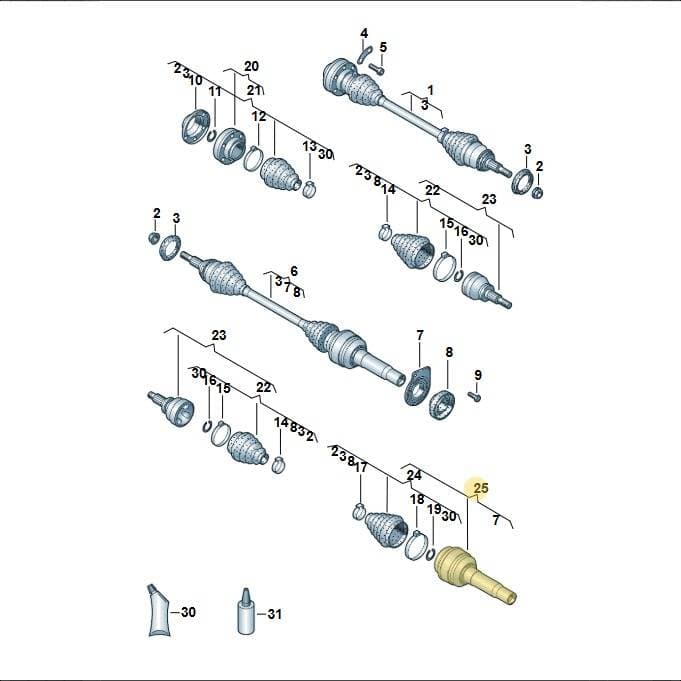

Number 25 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen CV Joint Kit, part number 7E0498104N. This kit transmits rotational power from the transmission to the wheels while allowing for suspension movement and steering. It is located in the drivetrain assembly. Genuine OEM CV joints ensure precise fitment and durability for vibration-free service life.
Technical details
- Category
- Transmission & Drivetrain
- Customs (HS) code
- 87085099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 35 × 13 × 10 cm
- Shipping weight
- 4.87 kg
Parts diagram & fitment
3 vehiclesJoint — locate 7E0498104N Volkswagen CV Joint Kit | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(46)
- 1Driveshaft 7E0407451X
- 1Driveshaft 7E0407451BX
- 1Driveshaft 7E0407271N
- 2Ut Nut 12 Point Socket Shouldered Nut WHT005286
- 3Splash Grd 7H0407343
- 4Plate 701407357
- 5Screw N90668201
- 6Part 7E0407276K
- 6Part 7E0407452MX
- 6Part 7E0407452TX
- 6Part 7E0407272AH
- 7Mounting 7E0407181B
- 7Mounting 7E0407181A
- 7Mounting 7H0407181B
- 8Part 7H0407284
- 9Bolt N10604403
- 9Bolt N10642107
- 9Bolt N01024125
- 10Cover 7H0407115
- 11Ring N0123741
- 12Clip N10601501
- 13Clip N10609101
- 14Clip N10740201
- 15Clip N10740101
- 15Clip N91023501
- 16Ring N91170501
- 16Circlip N91092301
- 17Clip N10644301
- 18Clip N10643301
- 19Ring N90619401
- 20Joint 7E0498103X
- 20Joint 7E0498103
- 21Boot 7E0498201
- 22Boot 7E0498203
- 22Boot 7H0498203
- 23Wheelshaft 7E0498099B
- 23Wheelshaft 7E0498099EX
- 23Wheelshaft 7H0498099
- 23Wheelshaft 7H0498099X
- 24Part 7E0498202
- 25Part 7E0498104NX
- 25Part 7E0498104Q
- 25Part 7E0498104QX
- 30Grease G060735A2
- 30Grease G052528A2
- 31Locking D154000A1
Diagrams & fitment data powered by oemdiagrams.com
7E0498104N Volkswagen CV Joint Kit | Genuine OEM is fitted on: transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015.
