Engine Undershield exploded parts diagram — transp. caravelle · 2009-2011, position 1

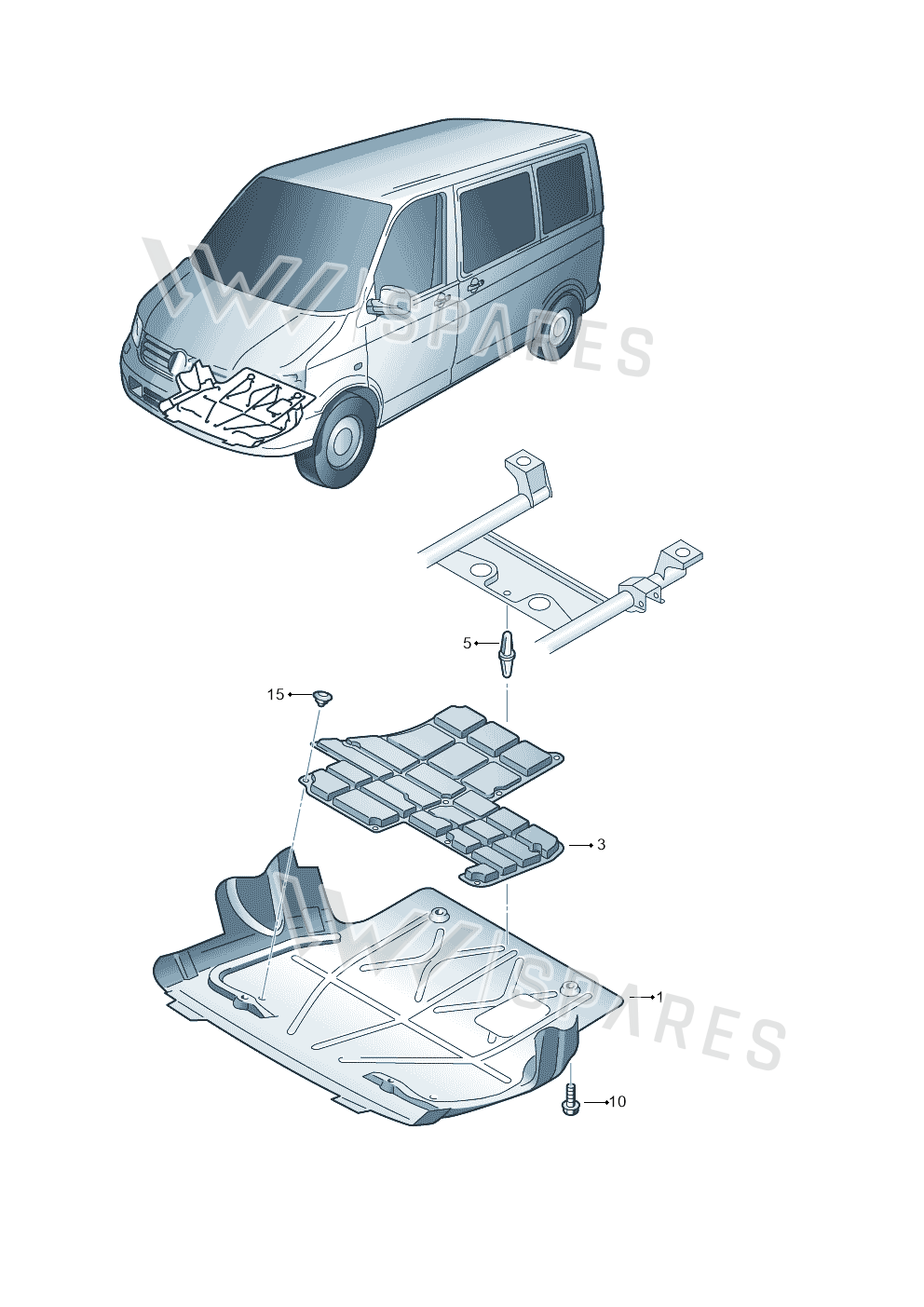

Exploded view
transp. caravelle · 2009-2011 · position 1Full diagram ↓
7E0805687

7E0805687 Engine Undershield

£89.79
£74.21 excl. VAT
Supersession road5 numbers since 2003
  1. 7H0805687Not stocked
    Aug 2003
  2. 7H0805687CNot stocked
    Aug 2008
  3. 7H0805687FNot stocked
    Mar 2009
  4. 7E0805687This pageNot stocked
    Apr 2012
  5. 7E0805685ACurrent number
Current part number7E0805685AWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

14 vehicles

Engine Undershield — locate Engine Undershield in the official exploded view and explore the surrounding assembly.

Parts in this assembly4
Vehicle fitment table14

Europe (14)

VehicleYearsPos.QtyPR
transp. caravelle2009-201111
transp. dropside2009-201111
California Camper2009-201111
transp. dropside2008-200911G0K
California Camper2008-20091
TRANSPORTER GESCHL. 082007-11
TRANSPORTER OFFEN 082007-11G0K
CAMPMOBIL-T5 082007-1
TRANSPORTER/4MOTION 072006-200711
TRANSPORTER OFFEN (7J) 072006-200711G0K
CAMPMOBIL (T5) 072006-20071
TRANSPORTER/4MOTION 062005-200611
TRANSPORTER 062005-200611G0K
CAMPMOBILE(T5)2004-20061

Diagrams & fitment data powered by oemdiagrams.com

Engine Undershield is fitted on: transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; transp. dropside 2008-2009; California Camper 2008-2009; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; CAMPMOBILE(T5) 2004-2006.
