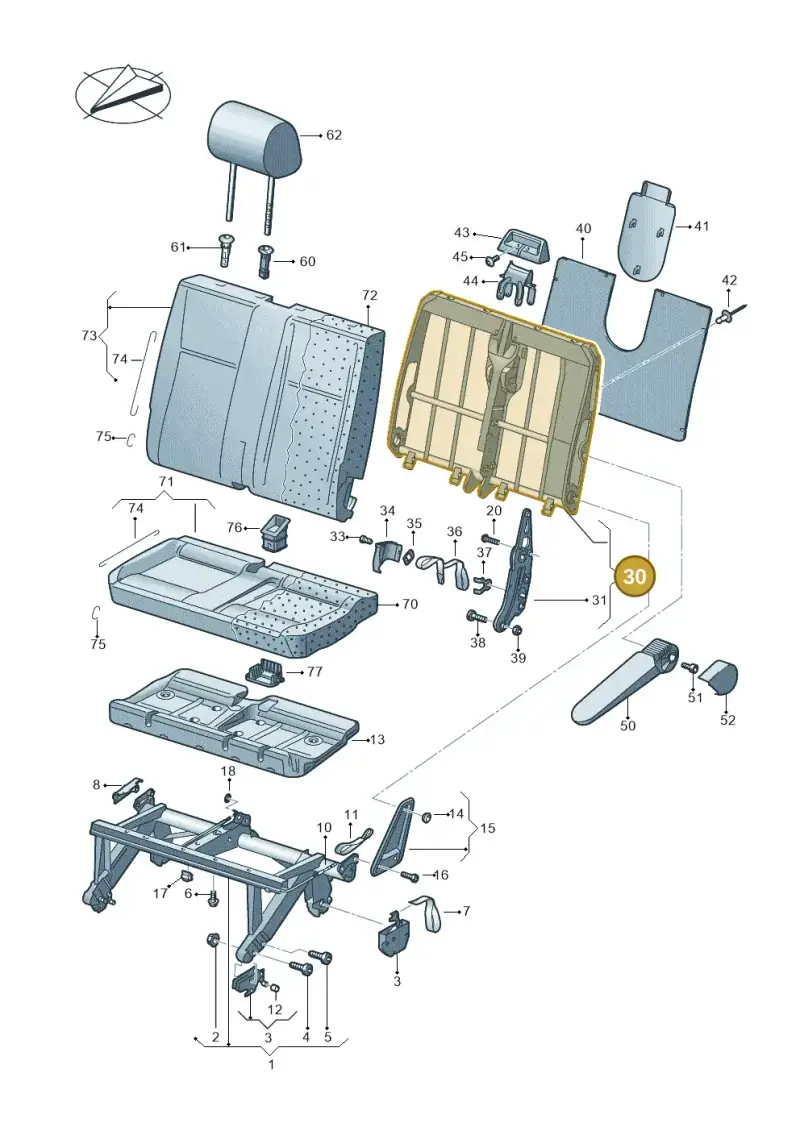

Number 30 marks the part’s position in the exploded view (Volkswagen Caravelle (2019-2024)).
Product overview
Genuine OEM Volkswagen Backrest Frame, part number 7E0883045BC. Fits Volkswagen Caravelle (2019-2024). Shown as position 30 in the body diagram 861883000.
Catalogue entry: FRAME-BACK; if necessary remove child.
Technical details
- Category
- Seats
- Diagram sheet
- Volkswagen 861883000, position 30
- ETKA group
- 8 / 83 (883)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleBackrest Frame — locate 7E0883045BC Volkswagen Backrest Frame in the official exploded view and explore the surrounding assembly.
Parts in this assembly42
- 1Seat Frame 7E0883669N
- 1Seat Frame 7E0883669S
- 2Ut Hexagon Nut Self-locking Hexagon Nut N02214621
- 2Collar Nut N10286111
- 3Lock Mechanism 7H0883389C
- 3Lock Mechanism 7H0883389D
- 4Bolt N91065901
- 5Bolt N91066001
- 6Bolt N91096603
- 7Loop 7H0883605A
- 10Part 7H0883079
- 11Loop 7H0882631A
- 12Part 7H0883867
- 13Seat Well 7H0883331C
- 14Pl Bearin 7H0883533
- 15FittingRight7H0881462C
- 15FittingLeft7H0881461C
- 16Screw N91000004
- 17Clip N90746801
- 18Washer N90116202
- 20Screw N10660901
- 30Frame-back 7E0883045AS
- 30Frame-back 7E0883045BF
- 31Fitting 7E0881321B
- 31Fitting 7E0881321C
- 33Bolt N10654902
- 34Cover 7H0883641A
- 35Tensioner 7H0883835
- 37Lever 7H0883593
- 38Screw N91003802
- 39Ut Hexagon Nut Self-locking Hexagon Nut N10028909
- 40Trim 7H0883611D
- 41Part 7E0883623A
- 42Pop Rivet N91153701
- 43Part 7C0883393
- 45Bolt N90986802
- 50Armrest 7E5883082AJ
- 50Armrest 7E5883082AK
- 51Screw N10517303
- 52Cover 7H5881152A
- 76Guide 7H0883337A
- 77Cover 7H0883623B
Compatible / alternative parts(12)
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. |
|---|---|---|
| caravelle | 2019-2024 | 30 |
Diagrams & fitment data powered by oemdiagrams.com
7E0883045BC Volkswagen Backrest Frame is fitted on: caravelle 2019-2024.
