7E2422891M Return Hose
- 7E2422891FNot stocked
Sep 2013 - 7E2422891HNot stocked
Nov 2013 - 7E2422891JNot stocked
Feb 2014 - 7E2422891MThis pageNot stocked
Dec 2014 - 7E2422891RCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

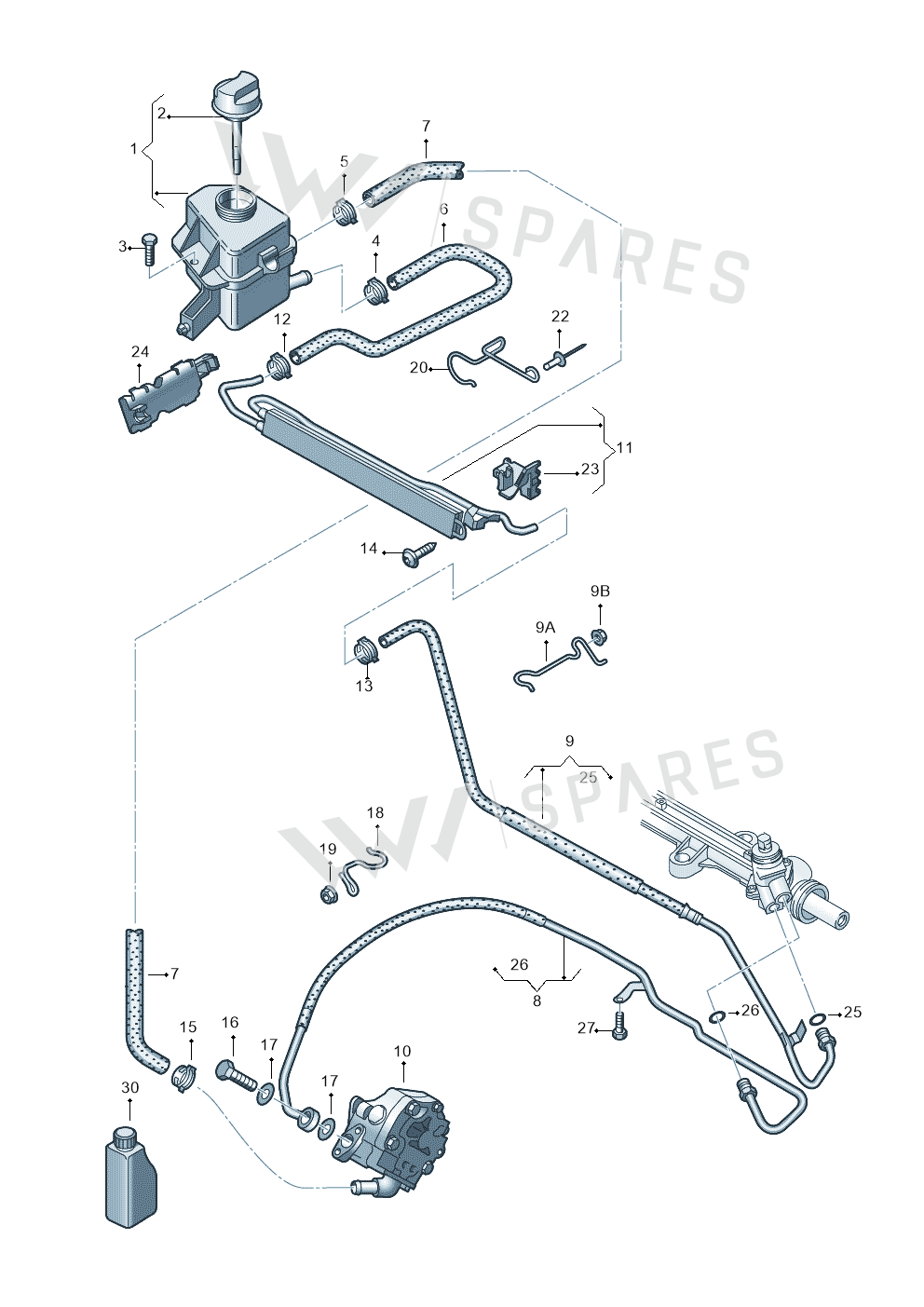

6 vehiclesReturn Hose — locate Return Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly29
- 1Container 7E0422371H
- 1Container 7E0422371G
- 2Cover 7E0422376
- 3Bolt N91079901
- 4Clamp N90770201
- 5Clamp N90686902
- 6Hose 7H0422895G
- 7Hose 7H0422889Q
- 8Hose 7H2422893G
- 8Hose 7H1422893G
- 9Hose 7E2422891R
- 9Hose 7E1422891L
- 9ABracket 7E0422931
- 9BCollar Nut N10609203
- 11Oil Cooler 7E0422885B
- 14Bolt N90817003
- 16Screw WHT001878
- 17Seal Ring N0138487
- 18Bracket 7H0422925L
- 19Collar Nut N01508210
- 20Bracket 7H0422925K
- 22Pop Rivet N90659001
- 23BracketLeft7H0422846A
- 24BracketRight7E0422848
- 25Seal Ring 7M0422999
- 26Seal Ring 7L0422999
- 27Bolt N90245209
- 30Part G004000M8
- 30Part G004000M2
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| transp. caravelle | 2011-2015 | 9 | 1 | L0R |
| transp. dropside | 2011-2015 | 9 | 1 | L0R |
| California Camper | 2011-2015 | 9 | 1 | L0R |
| transp. caravelle | 2009-2011 | 9 | 1 | L0R |
| transp. dropside | 2009-2011 | 9 | 1 | L0R |
| California Camper | 2009-2011 | 9 | 1 | L0R |
Diagrams & fitment data powered by oemdiagrams.com
Return Hose is fitted on: transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011.
