7E588513901A Seat Frame (Black)
- 7E588513901AThis pageNot stocked
Nov 2014 - 7E5885139ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

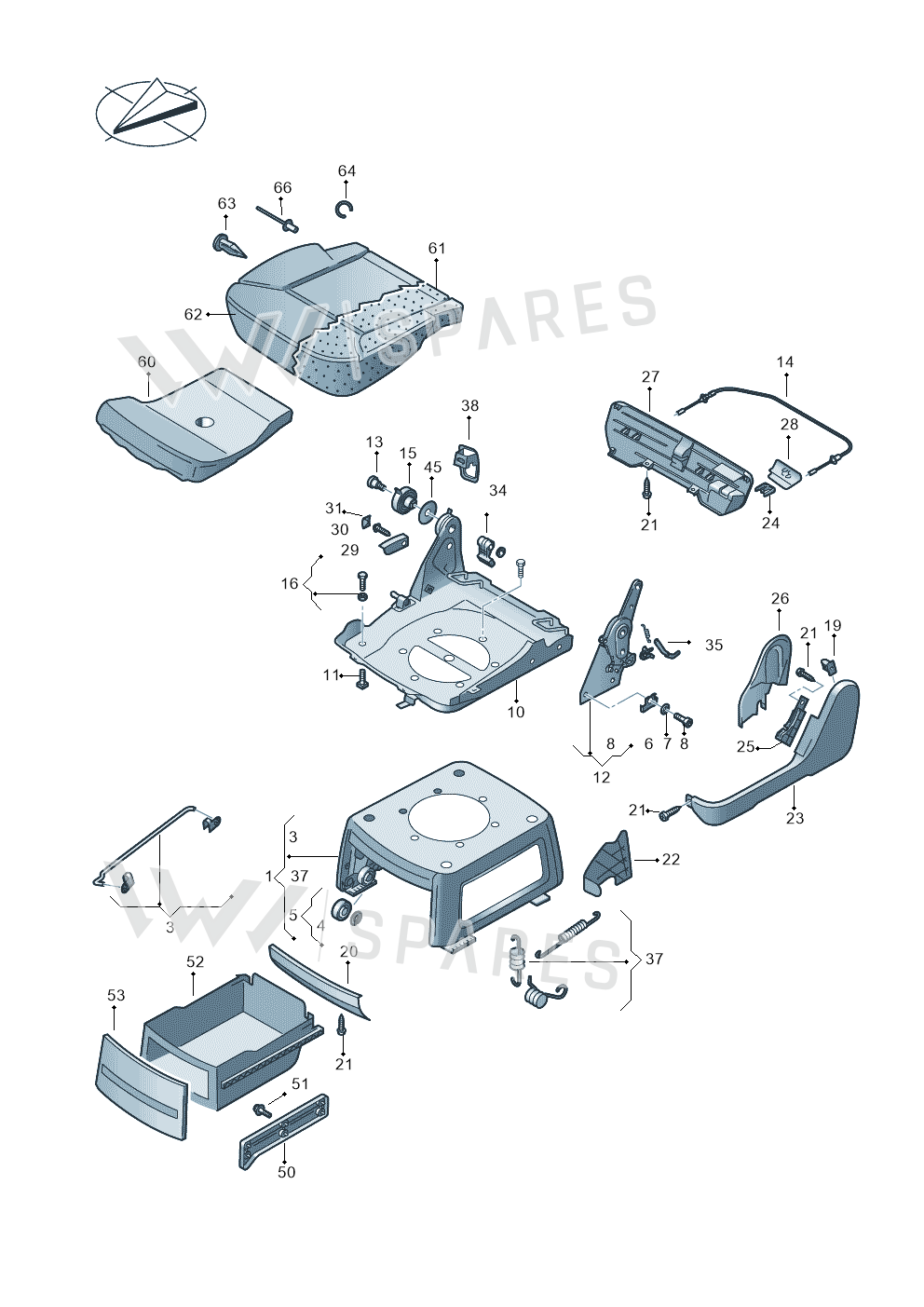

1 vehicleSeat Frame (Black) — locate Seat Frame (Black) in the official exploded view and explore the surrounding assembly.
You are ordering the Black version — 7E588513901A. The diagram shows its base part number 7E5885139.
Parts in this assembly48
- 1Seat Box 7E5885670
- 1Seat Box 7E5885670A
- 3Part 7H5885289B
- 4Ring N0124161
- 5Roller 7E5883277
- 8Screw N91003801
- 10Seat Frame 7E5885139
- 10Seat Frame 7H5885139
- 12Hinge 7H5883489A
- 13Screw N91094901
- 14Cable 7H5883257B
- 15Spring 7H5883349A
- 16Repair Kit 7H5885908B
- 19Clip 357867646
- 20Trim 7H5883319E
- 21Screw N10415001
- 22TrimRight7H5883320B
- 22TrimLeft7H5883320A
- 23TrimRight7H5883318J
- 23TrimLeft7H5883317F
- 24Clip 7H5883883
- 25S Belt Gui 7H5883707A
- 26CoverLeft7H5883937B
- 27Trim 7E5883320
- 27Trim 7H5883320F
- 28Handle 7H5883251
- 29Handle 7H5883252B
- 30Bolt N10586401
- 31Cover 7H5883499C
- 34Lever 7H5883593
- 35Parts Set 7H5883385A
- 37Springs 7H5883169
- 38Part 7H5886197
- 45Bush 7H5885167A
- 50RailRight7H5883212A
- 50RailLeft7H5883211A
- 51Bolt N10544201
- 52Drawer 7H5883655
- 53Panel 7H5883617
- 60Support 7H5883205A
- 61Seat Cush 7E5883375B
- 62Seat Cover 7E5883405AG
- 62Seat Cover 7E5883405AH
- 62Seat Cover 7E5883405AR
- 62Seat Cover 7E5883405Q
- 62Seat Cover 7E5883405R
- 62Seat Cover 7E5883405S
- 62Seat Cover 7E5883405AT
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. |
|---|---|---|
| transp. caravelle | 2011-2015 | 10 |
Diagrams & fitment data powered by oemdiagrams.com
Seat Frame (Black) is fitted on: transp. caravelle 2011-2015.
