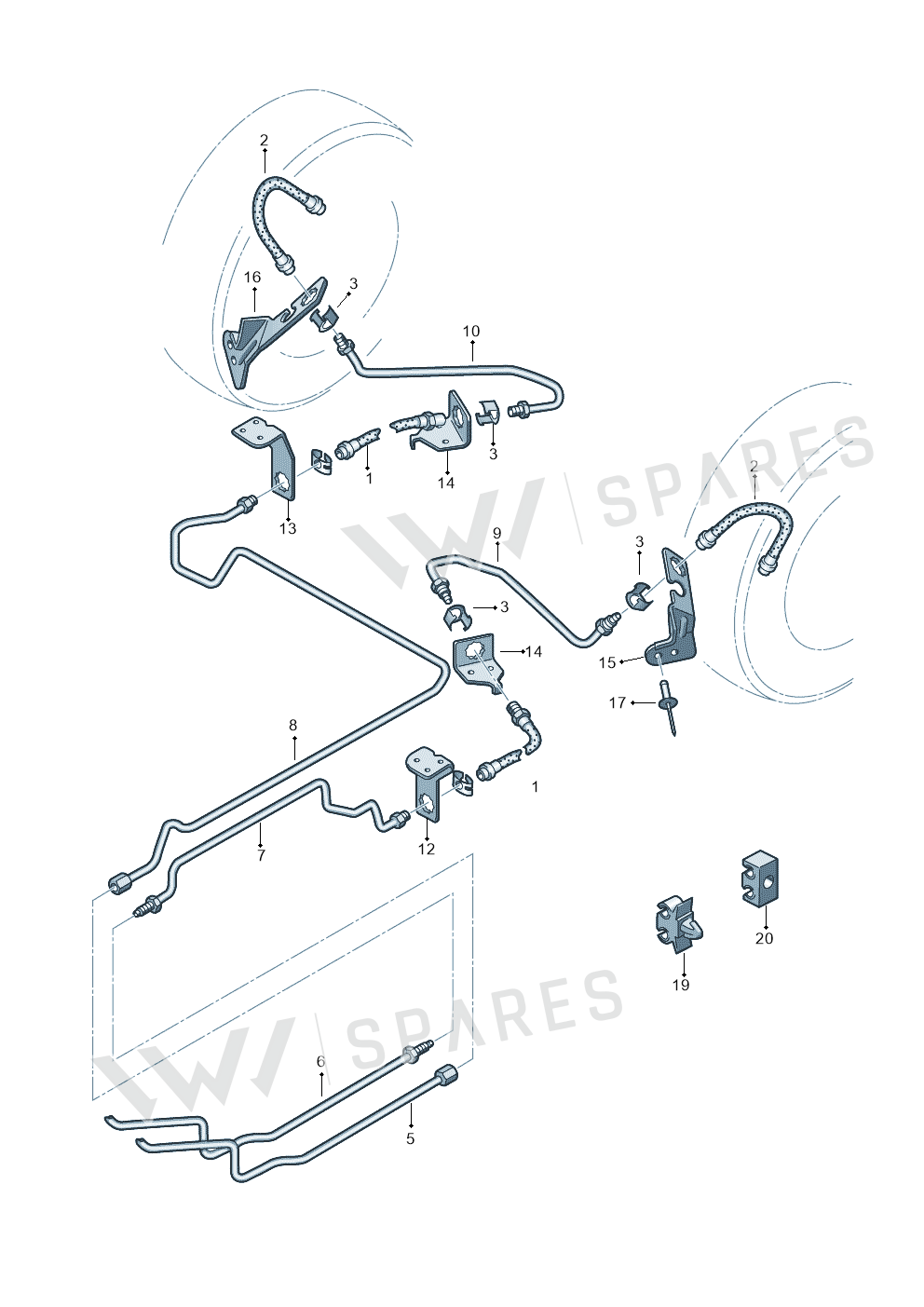

Brake Hose exploded parts diagram — TRANSPORTER GESCHL. 08 · 2007-, position 1
Exploded view
TRANSPORTER GESCHL. 08 · 2007- · position 1Full diagram ↓
7H0611775

7H0611775 Brake Hose

£19.44
£16.07 excl. VAT
Supersession roadoldest to newest
  1. 7H0611775This pageNot stocked
    Jul 2007
  2. 7H0611775BCurrent number
Current part number7H0611775BWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

9 vehicles

Brake Hose — locate Brake Hose in the official exploded view and explore the surrounding assembly.

Parts in this assembly22
Vehicle fitment table9

Europe (9)

VehicleYearsPos.QtyPR
TRANSPORTER GESCHL. 082007-12L0L,L0R,0E1,0E2,0WR
TRANSPORTER OFFEN 082007-12L0L,L0R,0E1,0E2
TRANSPORTER/4MOTION 072006-200712L0L,L0R,0E1,0E2
TRANSPORTER OFFEN (7J) 072006-200712L0L,L0R,0E1,0E2
CAMPMOBIL (T5) 072006-200712
TRANSPORTER/4MOTION 062005-200612L0L,L0R,0E1,0E2
TRANSPORTER 062005-200612L0L,L0R,0E1,0E2
CAMPMOBILE(T5)2004-200612
TRANSPORTER2003-200512L0L,L0R,0E1,0E2

Diagrams & fitment data powered by oemdiagrams.com

Brake Hose is fitted on: TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; CAMPMOBILE(T5) 2004-2006; TRANSPORTER 2003-2005.
