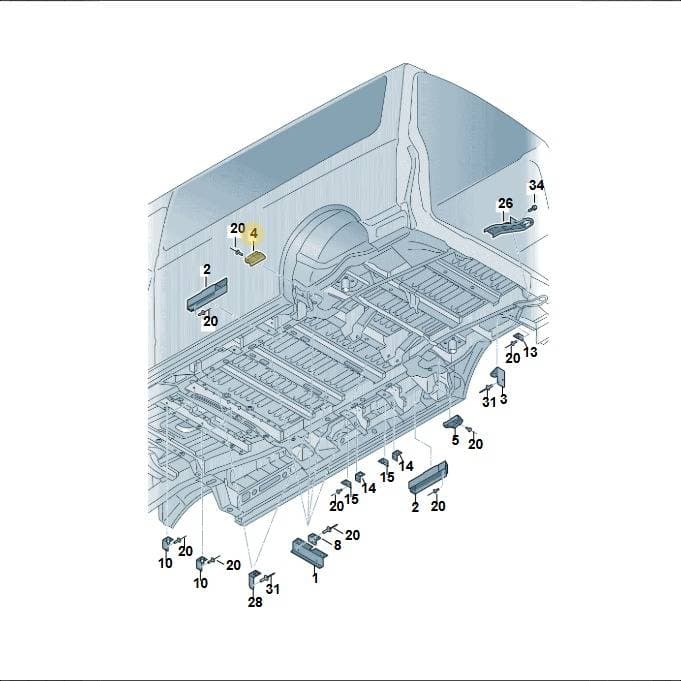

Number 4 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Seat Mounting Bracket, part number 7H0803333. This bracket is designed to secure the vehicle seat to the chassis, ensuring proper mounting and stability. It is located in the seat mounting assembly. Manufactured from durable steel to exact factory specifications for a precise fit and long service life.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 17.2 × 7.8 × 3.8 cm
- Shipping weight
- 0.25 kg

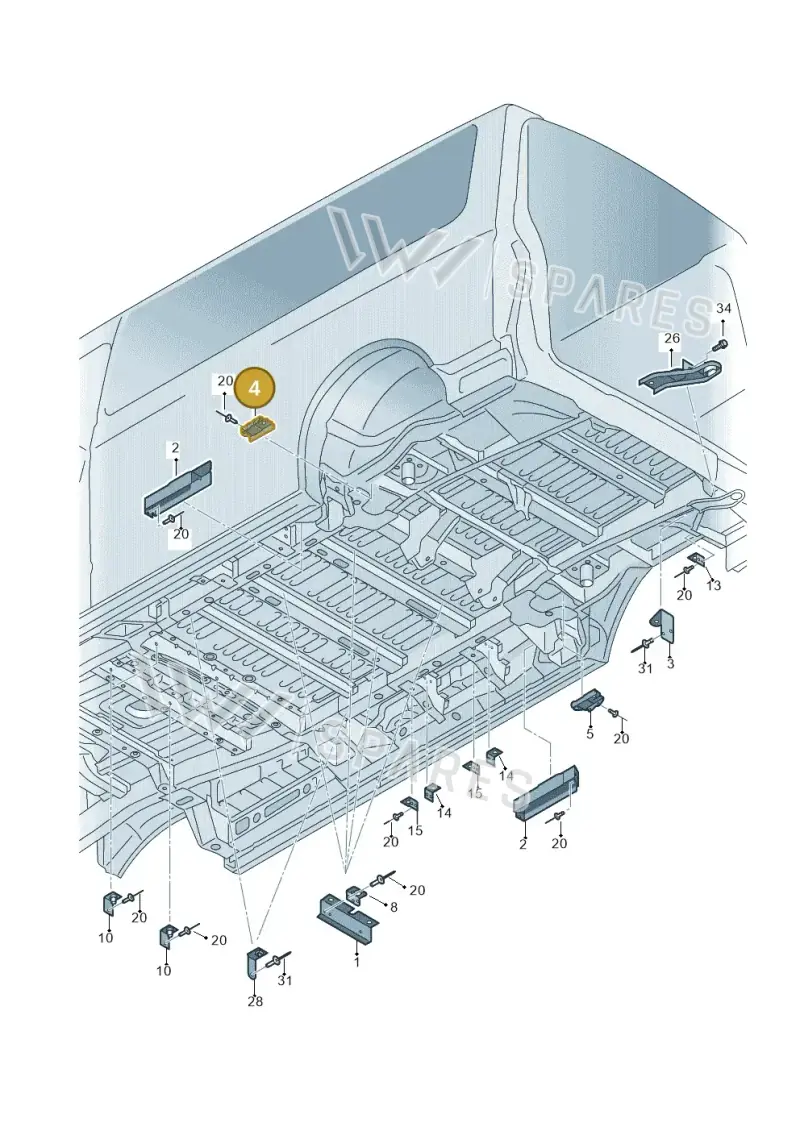

Parts diagram & fitment
10 vehiclesBracket For Seat Mounting — locate 7H0803333 Volkswagen Seat Mounting Bracket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(20)
- 1Part 7H0802763A
- 2BracketRight7H3803244
- 2BracketLeft7H3803243B
- 3Bracket 7H0803271
- 5Bracket 7H0803334
- 6Bracket 7H0803333A
- 7Bracket 7H0803334A
- 8Bracket 7H0802369
- 8Bracket 7H0802370
- 10Bracket 7H0803369A
- 13Bracket 7H5803547
- 14Bracket 7H0803547A
- 15Bracket 7H0803548A
- 20Pop Rivet N90478601
- 26Eyelet 7H0803611
- 28Bracket 7H0803782
- 30Reinforce 7H0804760
- 30Reinforce 7H0804759
- 33Bolt N90701102
- 34Bolt N90942802
Compatible / alternative parts(6)
Diagrams & fitment data powered by oemdiagrams.com
7H0803333 Volkswagen Seat Mounting Bracket | Genuine OEM is fitted on: caravelle 2019-2024; TRANSPORTER 2003-2005; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; transp. caravelle 2008-2009; transp. caravelle 2009-2011; transp. caravelle 2011-2015; caravelle 2015-2019; California Camper 2015-2019.
