United States
7H0820744N Refrigerant Pipe
- 7H0820744MNot stocked
Aug 2003 - 7H0820744NThis pageNot stocked
Jul 2006 - 7H0820744RNot stocked
Jul 2007 - 7H0820744ADCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

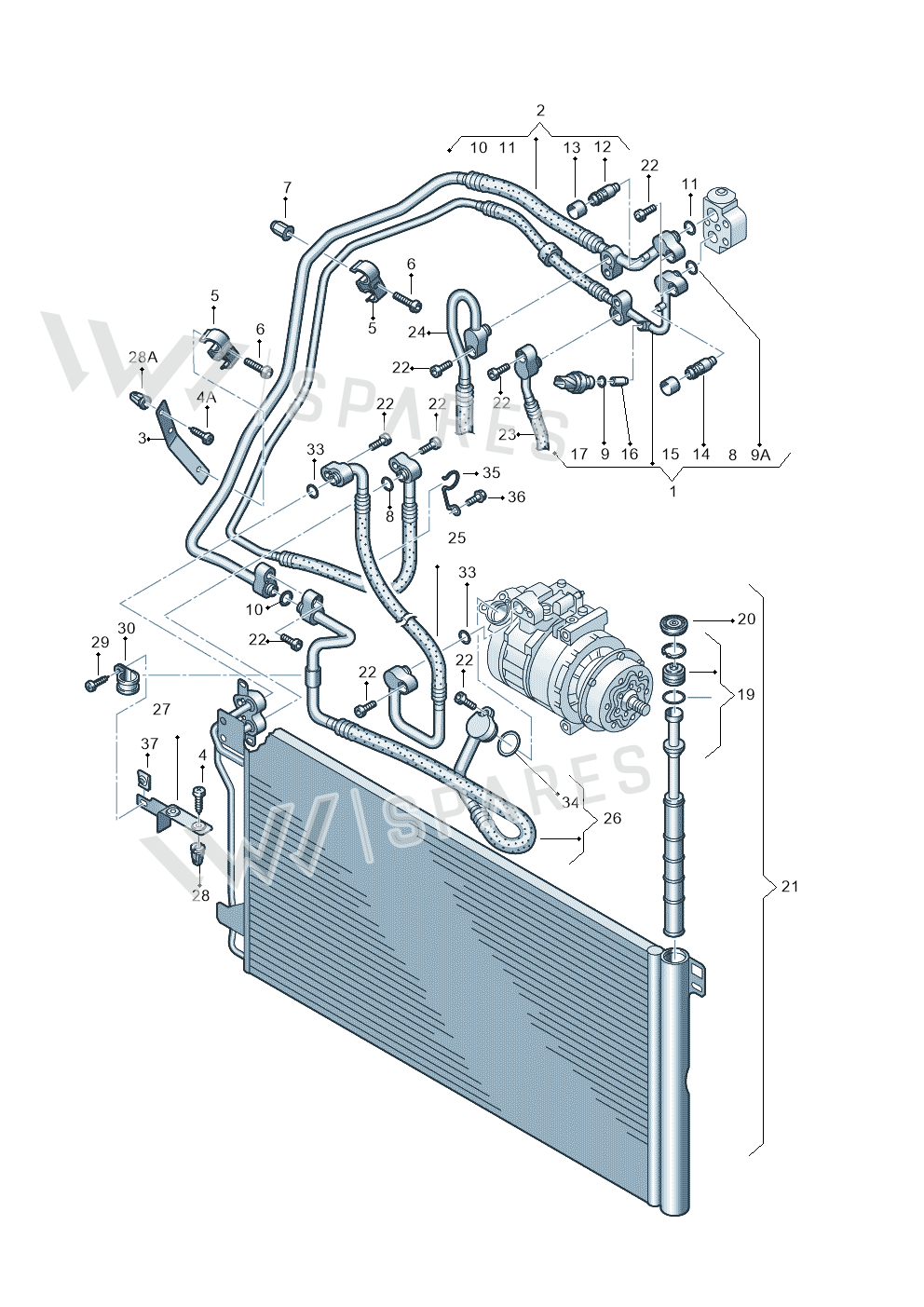

7 vehiclesRefrigerant Pipe — locate Refrigerant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly36
- 1Pipe 7H1820741R
- 1Pipe 7H1820741S
- 2Hose 7H1820743P
- 2Part 7H1820743Q
- 3Bracket 7H0820791B
- 4Pop Rivet N90437401
- 5Clip 7H0820775A
- 6Screw N10431001
- 7Part N90252104
- 8Seal Ring 3D0260749C
- 9Seal Ring 8E0260749
- 10Seal Ring 4E0260749B
- 11Seal Ring 7H0820898
- 12Valve 8E0820855
- 12Valve 357820795H
- 13Part 3C0820231
- 13Part 357820809B
- 14Valve 357820795J
- 15Part 3C0820581
- 15Part 357820809C
- 16Part 7D0820855
- 17Sensor 1K0959126A
- 19Drier 7L0898191A
- 20Part 7L0820231A
- 21Condenser 7H0820411E
- 22Screw N10414402
- 25Hose 7H0820721AE
- 26Pipe 7H0820744AD
- 27Bracket 7H0820770B
- 29Screw N0139771
- 30Clamp N0206474
- 33Seal Ring 4E0260749A
- 34Seal Ring 8E0260749C
- 35Bracket 7H0422925G
- 36Bolt N10009104
- 37Part N90755701
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| CAMPMOBIL-T5 08 | 2007- | 26 | 1 | L0L,T85,T86,9AH,9AJ,TM7,TN7 |
| CAMPMOBIL (T5) 07 | 2006-2007 | 26 | 1 | L0L,T85,T86,9AH,9AJ,TM7,TN7 |
| TRANSPORTER/4MOTION 06 | 2005-2006 | 26 | 1 | L0L,T85,T86,9AB,9AG,9AH,9AJ,9AV,TM7,TN7 |
| TRANSPORTER 06 | 2005-2006 | 26 | 1 | L0L,T85,T86,9AB,9AJ |
| CAMPMOBILE(T5) | 2004-2006 | 26 | 1 | L0L,T85,T86,9AH,9AJ,TM7,TN7 |
| TRANSPORTER | 2003-2005 | 26 | 1 | L0L,T85,T86,9AB,9AG,9AH,9AJ,9AV |
| TRANSPORTER | 2003-2005 | 26 | 1 | L0L,T85,T86,9AB,9AJ |
Diagrams & fitment data powered by oemdiagrams.com
Refrigerant Pipe is fitted on: CAMPMOBIL-T5 08 2007-; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; CAMPMOBILE(T5) 2004-2006; TRANSPORTER 2003-2005.
