7H0877233A Water Drainage Hose
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

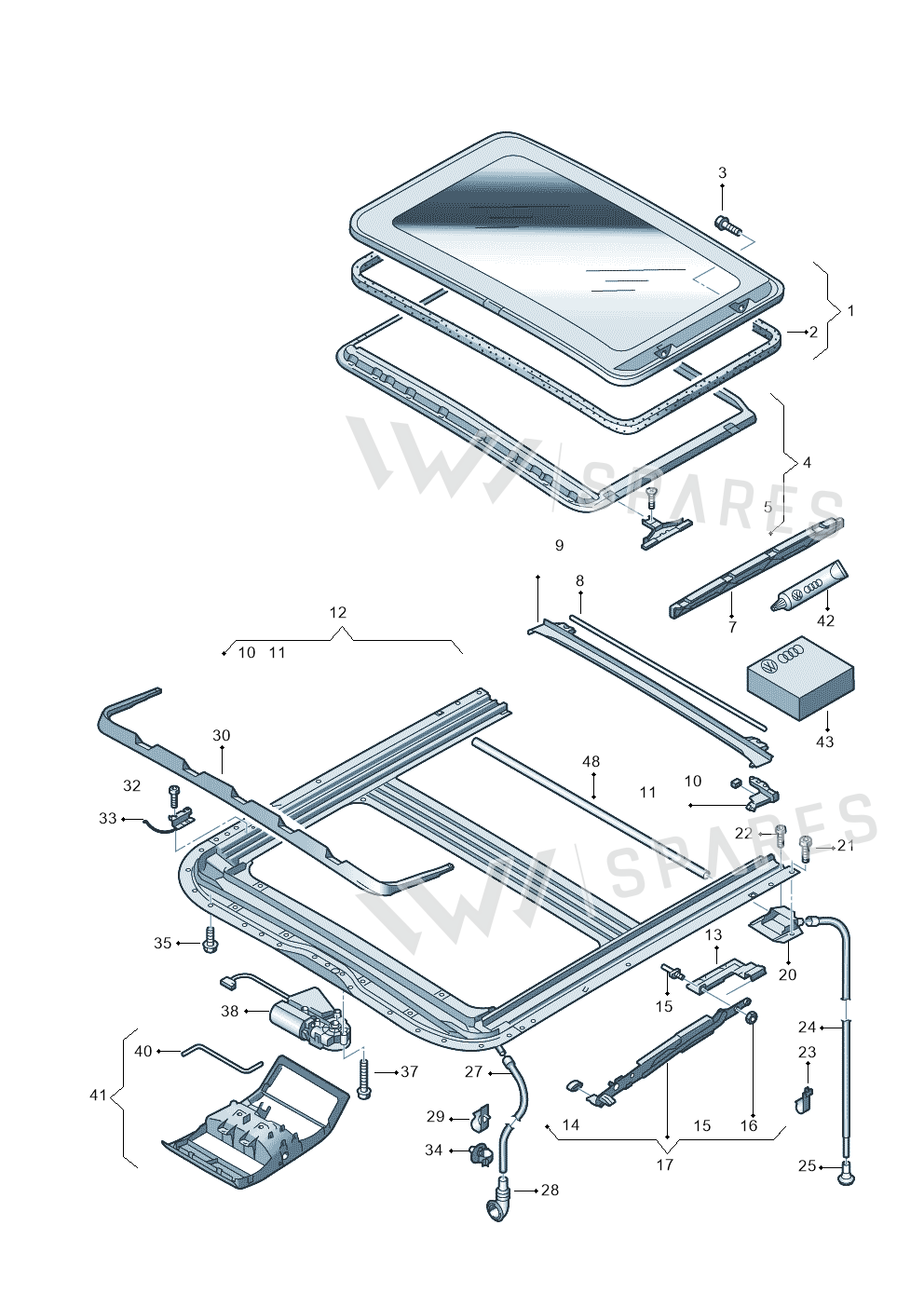

8 vehiclesWater Drainage Hose — locate Water Drainage Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Cover 7H0877051
- 2Seal 6X0877209
- 3Bolt 8D0877721B
- 4Frame 6X0877255A
- 4Frame 7H0877255
- 5Guide Piec 7H0877565
- 7PanelRight6X0877790
- 7PanelLeft6X0877789
- 11Repair Kit 7H0898481
- 12Frame 7H0877351B
- 13Guide 6X0898015
- 15Part WHT000162
- 17Coulisse G 6X0898153
- 20End Piece 7H0898200
- 23Clip 7H0877697
- 24Hose 7H3877233
- 24Hose 7H1877233
- 25Drain Tube 7H0877241
- 27Hose 7H0877221A
- 27Hose 7H0877221
- 28Drain Tube 6X0877236A
- 29Clip 6Q0877244B
- 30Deflector 6X0877651
- 33Repair Kit 6X0898658
- 34Cable Tie 3D0971838N
- 35Bolt N90820401
- 40Crank 7L6875699
Vehicle fitment table8
Europe (8)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| caravelle | 2015-2019 | 48 | 1 |
| transp. caravelle | 2011-2015 | 48 | 1 |
| transp. caravelle | 2009-2011 | 48 | 1 |
| transp. caravelle | 2008-2009 | 48 | 1 |
| TRANSPORTER GESCHL. 08 | 2007- | 48 | 1 |
| TRANSPORTER/4MOTION 07 | 2006-2007 | 48 | 1 |
| TRANSPORTER/4MOTION 06 | 2005-2006 | 48 | 1 |
| TRANSPORTER | 2003-2005 | 48 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Water Drainage Hose is fitted on: caravelle 2015-2019; transp. caravelle 2011-2015; transp. caravelle 2009-2011; transp. caravelle 2008-2009; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 2003-2005.
