7H1820741K Refrigerant Pipe
- 7H1820741FNot stocked
Aug 2004 - 7H1820741HNot stocked
Aug 2006 - 7H1820741KThis pageDiscontinued
Aug 2022
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

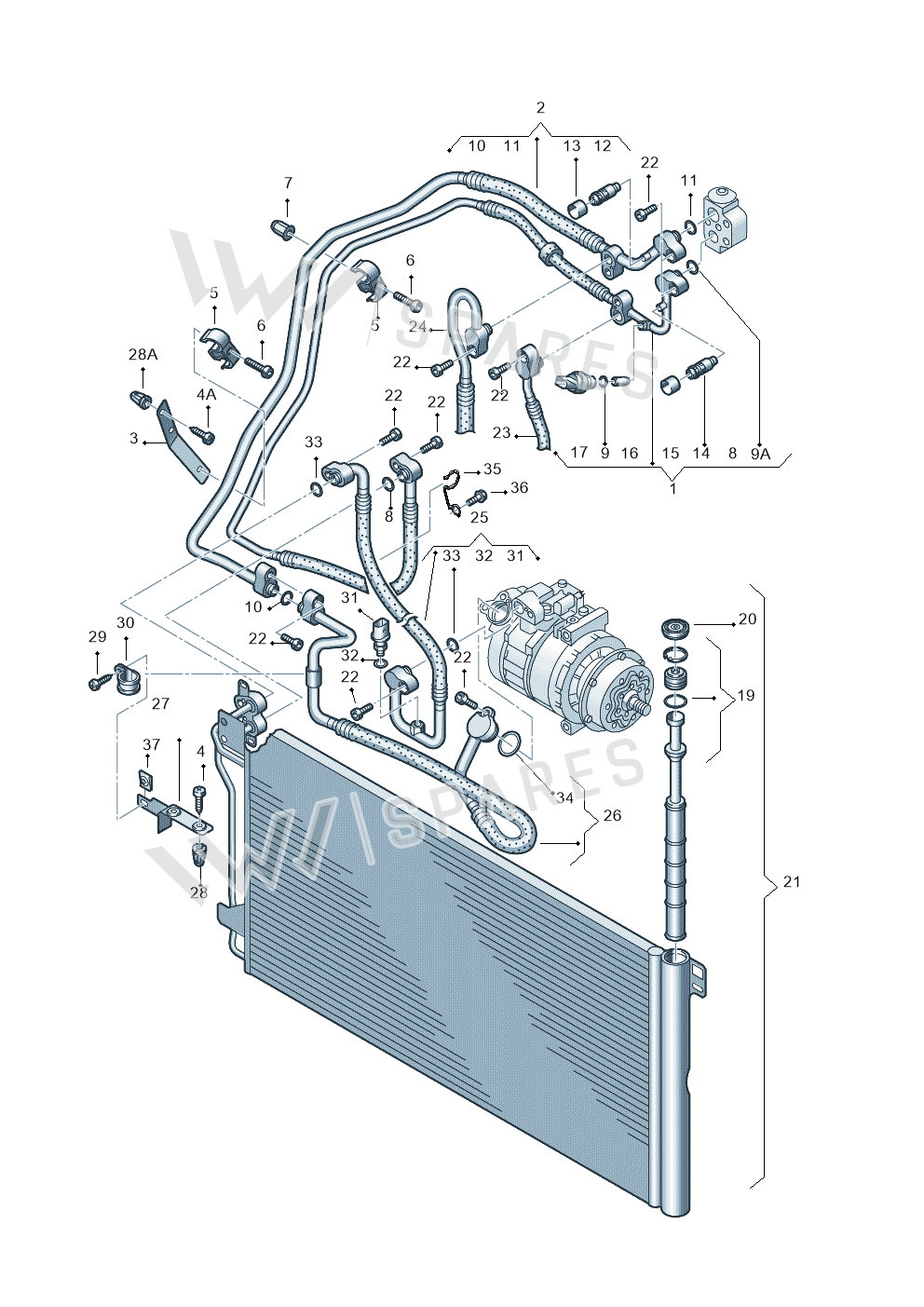

5 vehiclesRefrigerant Pipe — locate Refrigerant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly39
- 1Pipe 7H1820741L
- 2Hose 7H1820743H
- 2Part 7H1820743Q
- 3Bracket 7H0820791B
- 4Screw N01396921
- 4APop Rivet N90437401
- 5Clip 7H0820775A
- 6Screw N10431001
- 7Part N90252104
- 8Seal Ring 3D0260749C
- 9Seal Ring 8E0260749
- 10Seal Ring 4E0260749B
- 11Seal Ring 7H0820898
- 12Valve 8E0820855
- 12Valve 357820795H
- 13Part 3C0820231
- 13Part 357820809B
- 14Valve 357820795J
- 15Part 3C0820581
- 15Part 357820809C
- 16Part 7D0820855
- 17Sensor 1K0959126A
- 19Drier 7L0898191A
- 20Part 7L0820231A
- 21Condenser 7H0820411E
- 22Screw N10414402
- 25Part 7H0820721AE
- 26Pipe 7H0820744AD
- 27Bracket 7H0820770B
- 28Part 811807577C
- 29Screw N0139771
- 30Clamp N0206474
- 31Temperature Sensor 7L6907543A
- 32Seal Ring 7H0820896
- 33Seal Ring 4E0260749A
- 34Seal Ring 8E0260749C
- 35Bracket 7H0422925G
- 36Bolt N10009104
- 37Part N90755701
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| TRANSPORTER/4MOTION 06 | 2005-2006 | 1 | 1 | |
| TRANSPORTER 06 | 2005-2006 | 1 | 1 | |
| CAMPMOBILE(T5) | 2004-2006 | 1 | 1 | L0L,T21,9AJ,T23 |
| TRANSPORTER | 2003-2005 | 1 | 1 | L0L,T21,T55,T9N,9AB,9AJ,9AV |
| TRANSPORTER | 2003-2005 | 1 | 1 | L0L,T21,T55,T9N,9AB,9AJ |
Diagrams & fitment data powered by oemdiagrams.com
Refrigerant Pipe is fitted on: TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; CAMPMOBILE(T5) 2004-2006; TRANSPORTER 2003-2005.
