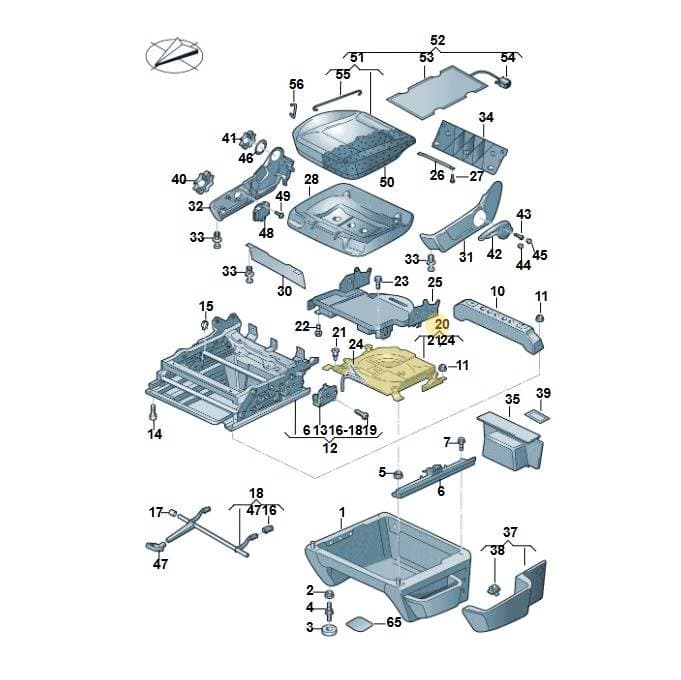

Number 20 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Seat Attachment, part number 7LA88231001A. This part forms the structural frame for the seat assembly. It is located in the seat assembly. The part weighs 5.571 kg and has dimensions of 0.456m x 0.419m x 0.114m. Genuine OEM seat frames provide the precise structural integrity and mounting points required for safe and durable seating.
Catalogue entry: BLACK; FRAME.
Technical details
- Category
- Seats
- Customs (HS) code
- 94019990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 45.6 × 41.9 × 11.4 cm
- Shipping weight
- 5.57 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 3SD
- 3SQ
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

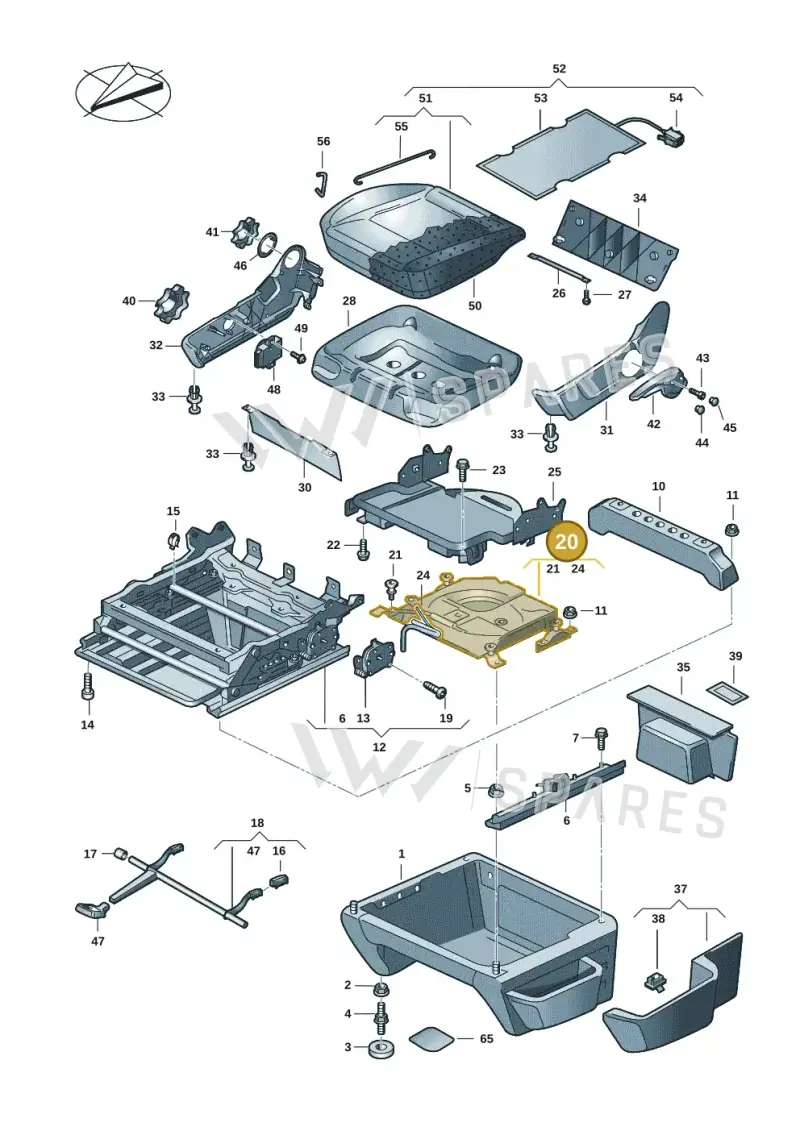

3 vehiclesFrame (Black) — locate 7LA88231001A Volkswagen Seat Attachment | Genuine OEM in the official exploded view and explore the surrounding assembly.
You are ordering the Black version — 7LA88231001A. The diagram shows its base part number 7LA882310.
Parts in this assembly48
- 1Seat FrameLeft7E1881678D
- 1Seat FrameLeft7L1881678
- 1Seat FrameRight7L2881678A
- 1Seat FrameRight7L2881678B
- 2Collar Nut N10261310
- 3Sleeve 7H0881493
- 4Bolt 7E0881700
- 5Collar Nut N02300313
- 6ChannelLeft7E7881201A
- 6ChannelLeft7E7881201B
- 6ChannelRight7E7881202A
- 6ChannelRight7E7881202B
- 7Bolt N10005207
- 10Connector Piece 7H0881588B
- 12Part 7E0881618B
- 12Part 7E0881618F
- 13Adjuster 6Q0881053B
- 14Bolt N10572405
- 15Part 7E0881767
- 16Part 7H0881181
- 17Bush 7H0881529
- 18Lever 7E0881092A
- 19Screw 3Q0881955
- 20Frame 7E0882310
- 20Frame 7LA882310
- 21Part 7H7881712
- 22Bolt N10306504
- 23Bolt N10156305
- 24Spring 7H7881985A
- 25Adapter 7E7881033B
- 26Spacer Pl 7E7881291B
- 28Seat Well 7H0881303G
- 30Trim 7E7881319
- 31Trim 7E0881317B
- 31Trim 7E0881317E
- 31Trim 7E5881317E
- 31Trim 7E7881317A
- 31Trim 7H0881317E
- 31Trim 7H5881317G
- 31Trim 7H5881317K
- 32Trim 7E7881318A
- 32Trim 7H0881318E
- 32Trim 7H5881318J
- 32Trim 7H5881318L
- 33Spring Rivet 7L6868307
- 34Trim 7E7881320
- 34Trim 7E7881320A
- 34Trim 7H0881320A
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | PR |
|---|---|---|---|
| transport. multivan | 2019-2024 | 20 | 3SQ |
| caravelle | 2019-2024 | 20 | 3SD |
| Single-cab transp. | 2019-2024 | 20 | 3SD |
The manufacturer’s catalogue lists this part number as fitted until August 2024; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
7LA88231001A Volkswagen Seat Attachment | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024.
