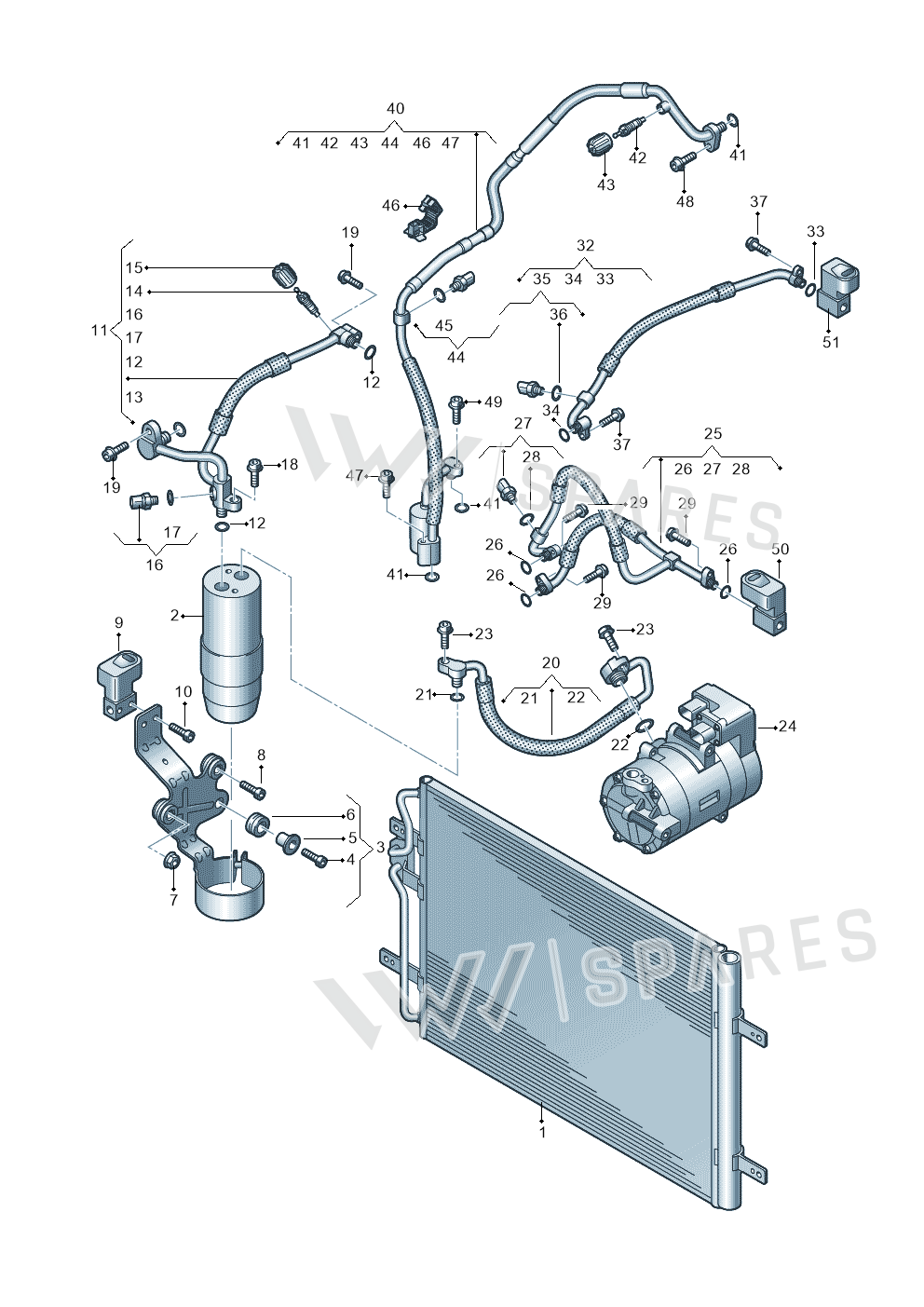

Refrigerant Line exploded parts diagram — E-Crafter 35 · 2018-2024, position 25
Exploded view
E-Crafter 35 · 2018-2024 · position 25Full diagram ↓
7LE816741

7LE816741 Refrigerant Line

£275.92
£228.03 excl. VAT
Supersession roadoldest to newest
  1. 7LE816741This pageNot stocked
    Jul 2021
  2. 7LE816741ACurrent number
Current part number7LE816741AWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

1 vehicle

Refrigerant Line — locate Refrigerant Line in the official exploded view and explore the surrounding assembly.

Parts in this assembly32
Vehicle fitment table1

Europe (1)

VehicleYearsPos.Qty
E-Crafter 352018-2024251

Diagrams & fitment data powered by oemdiagrams.com

Refrigerant Line is fitted on: E-Crafter 35 2018-2024.
