7N0820727B Refrigerant Pipe
- 7N0820727Not stocked
Jul 2012 - 7N0820727ANot stocked
Jan 2015 - 7N0820727BThis pageNot stocked
Aug 2017 - 7N0816727Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

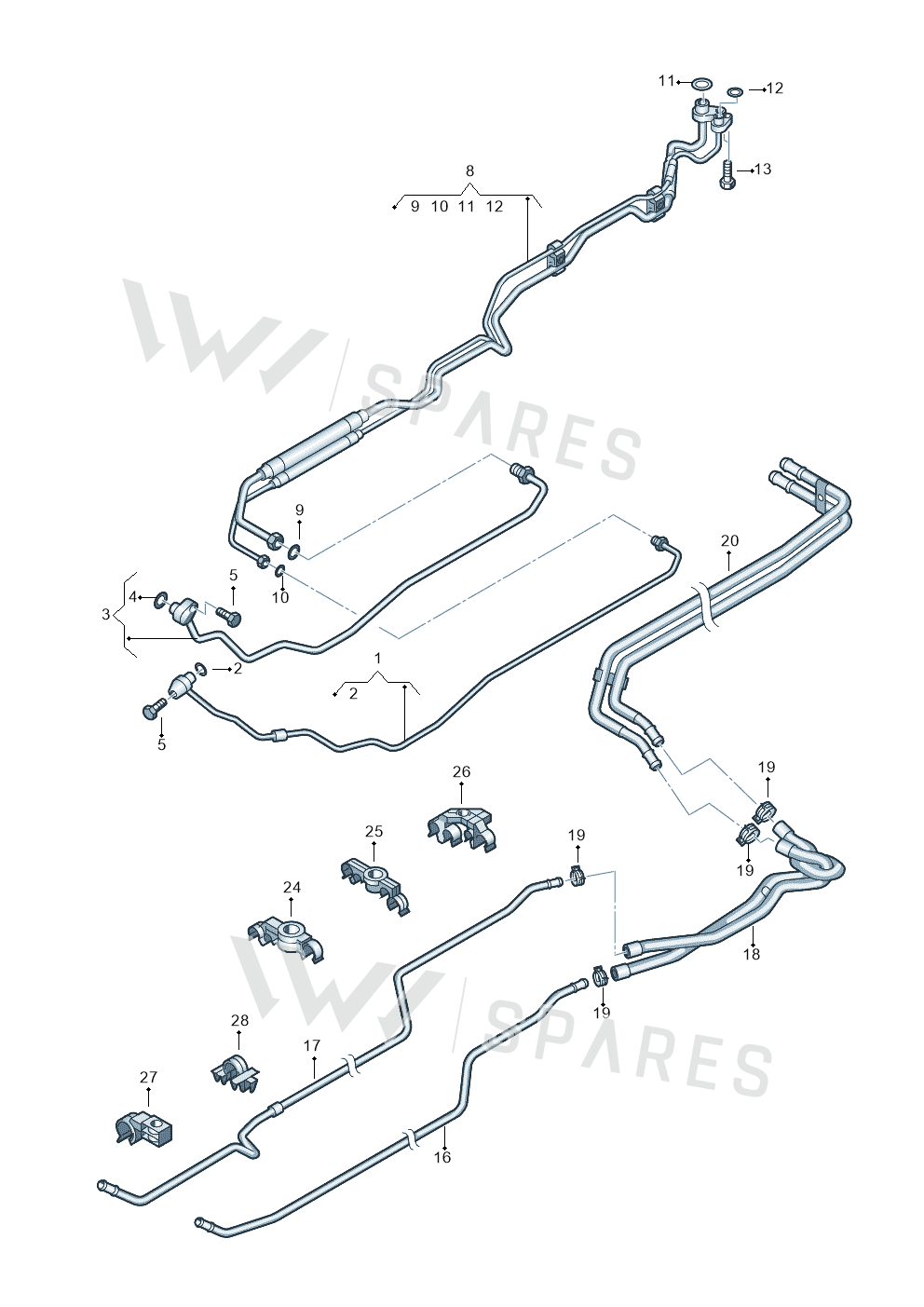

3 vehiclesRefrigerant Pipe — locate Refrigerant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly22
- 1Line 7N0816722A
- 1Line 7N0820722C
- 2Seal Ring 3D0260749C
- 3Line 7N0816720A
- 3Line 7N0820720A
- 3Line 7N0820720B
- 4Seal Ring 4E0260749A
- 5Screw N10414402
- 8Pipe 7N0816727
- 9Seal Ring 8E0260749D
- 10Seal Ring 7H0820896
- 11Seal Ring 4E0260749B
- 16Water Pipe 7N0819885B
- 17Water Pipe 7N0819928B
- 18Hose 7N0815369
- 19Clamp N90686902
- 20Water Pipe 7N0815097A
- 24Bracket 7N0819379
- 25Bracket 7N0819453
- 26Bracket 7N0819549
- 27Bracket 7N0819147
- 28Bracket 7N0819259
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Sharan BlueMotion | 2015-2022 | 8 | 1 | |
| Sharan Blue Motion | 2010-2015 | 8 | 1 | |
| Alhambra Stylance | 2010-2013 | 8 | 1 | PR:9AH,9AU |
Diagrams & fitment data powered by oemdiagrams.com
Refrigerant Pipe is fitted on: Sharan BlueMotion 2015-2022; Sharan Blue Motion 2010-2015; Alhambra Stylance 2010-2013.
