7N1823509A Bonnet Lock-Lower Part
- 7N1823509Not stocked
May 2013 - 7N1823509AThis pageNot stocked
Feb 2019 - 7N1823509BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

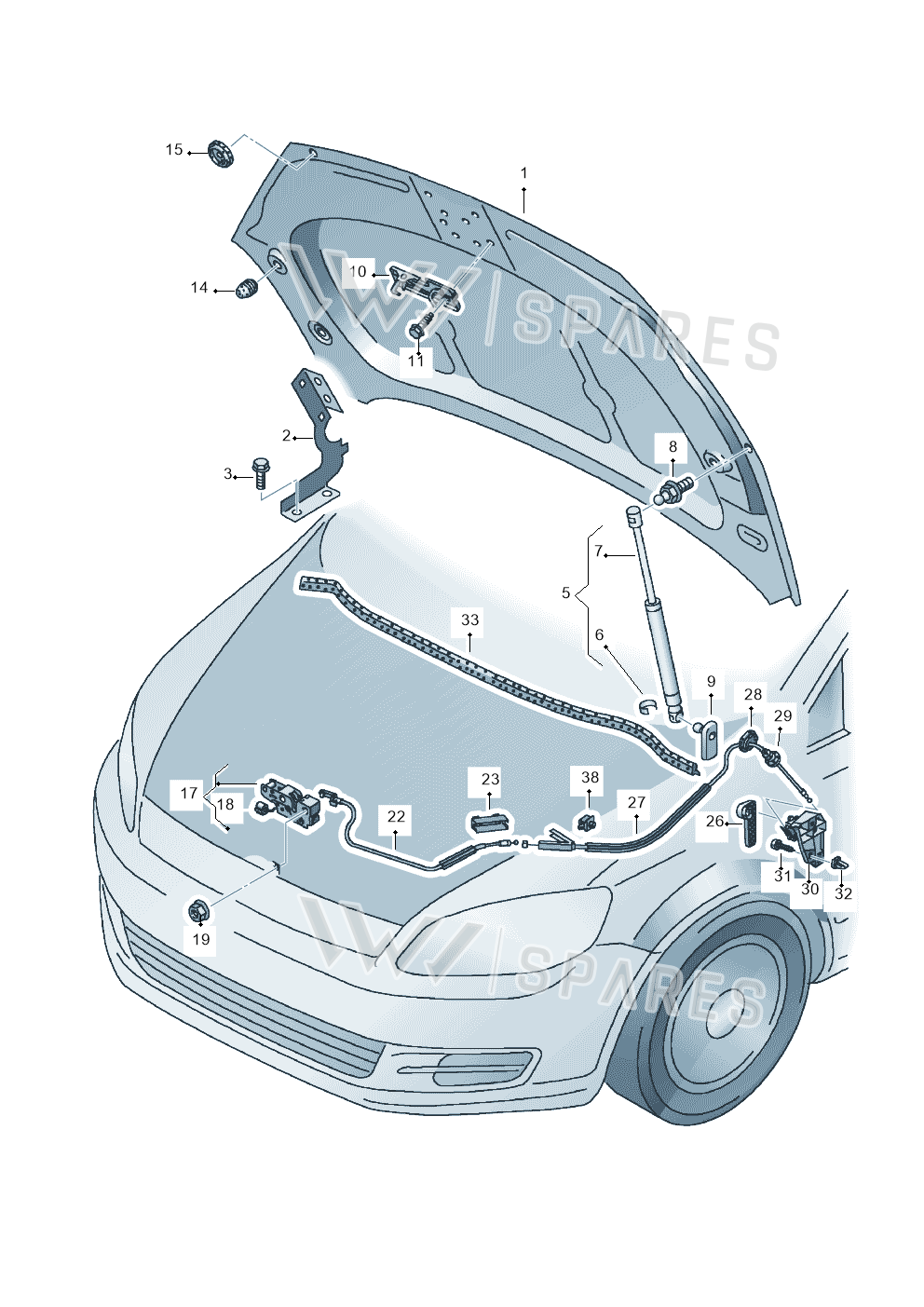

3 vehiclesBonnet Lock-lower Part — locate Bonnet Lock-Lower Part in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 1Bonnet 7N5823031A
- 2HingeLeft7N0823301B
- 2HingeRight7N0823302B
- 3Bolt N0195307
- 5G Fill Str 7N0823359
- 6Clip 443823397
- 7Clip 1H5827905
- 8Stud WHT006579
- 10Catch Hook 1Q0823480
- 11Bolt N90820401
- 14Buffer 867827500A
- 15Buffer 8E0823429A
- 18Switch 7N0953236A
- 19Ut Hexagon Flange Nut Self-locking Hexagon N90887703
- 22Lid Cable 7N2823531
- 22Lid Cable 7N1823531
- 23Bracket 5N0823411A
- 26Handle 3C2823533
- 26Handle 6R1823533
- 27Lid Cable 7N0823535A
- 27Lid Cable 7N0823535
- 28Cover N90508801
- 28Grommet 5M0823544
- 29Grommet 1K0823591B
- 30Bracket 3C2823633A
- 30Bracket 6R1823633
- 31Bolt N90974701
- 32Part N90833801
- 33Seal 7N0823723
- 38Clip 1T0823567
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Alhambra Stylance | 2015-2022 | 17 | |
| Sharan BlueMotion | 2015-2022 | 17 | 1 |
| Alhambra Stylance | 2010-2013 | 17 |
Diagrams & fitment data powered by oemdiagrams.com
Bonnet Lock-Lower Part is fitted on: Alhambra Stylance 2015-2022; Sharan BlueMotion 2015-2022; Alhambra Stylance 2010-2013.
