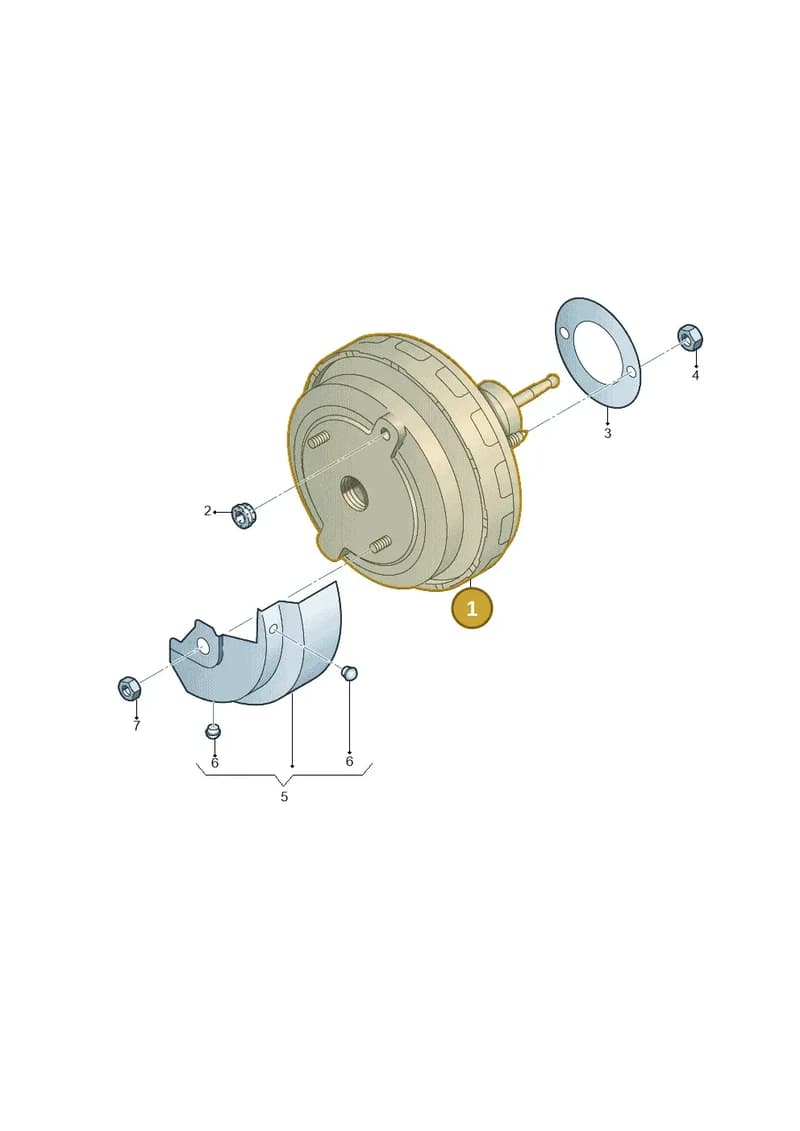

Number 1 marks the part’s position in this exploded view (Volkswagen Sharan (2015-2022)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Volkswagen Brake Servo, part number 7N2614106. Fits SEAT Alhambra (2015-2022), Volkswagen Sharan (2015-2022). Shown as position 1 in the wheels and brakes diagram 689612100.
Catalogue entry: BRAKE SERV.
Fitted with: 7N2614106B BRAKE SERV, 7N2614106BREP Repair set, 7N2612161 SEAL, N02300311 hexagon nut, self-locking, N90074404 hexagon nut, self-locking.
Technical details
- Category
- Brakes
- Diagram sheet
- Volkswagen 689612100, position 1
- ETKA group
- 6 / 12 (612)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
5 vehiclesBrake Servo — locate 7N2614106 Volkswagen Brake Servo in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly5
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Sharan BlueMotion | 2015-2022 | 1 | 1 | ||
| Alhambra Stylance | 2015-2022 | 1 | 1 | L0R | |
| Audi Q3 quattro | 2011-2015 | 1 | 1 | PR:TL1 | L0R |
| Sharan Blue Motion | 2010-2015 | 1 | 1 | ||
| Alhambra Stylance | 2010-2013 | 1 | 1 | L0R |
The manufacturer’s catalogue lists this part number as fitted until 29 June 2015; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
7N2614106 Volkswagen Brake Servo is fitted on: Sharan BlueMotion 2015-2022; Alhambra Stylance 2015-2022; Audi Q3 quattro 2011-2015; Sharan Blue Motion 2010-2015; Alhambra Stylance 2010-2013.
