7P0901152D Traction Motor For Elec Drive
- 7P0901152CXNot stocked
May 2010 - 7P0901152DXNot stocked
Aug 2010 - 7P0901152DThis pageNot stocked
May 2012 - 7P0901152FNot stocked
Nov 2016 - 7P0901153DCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

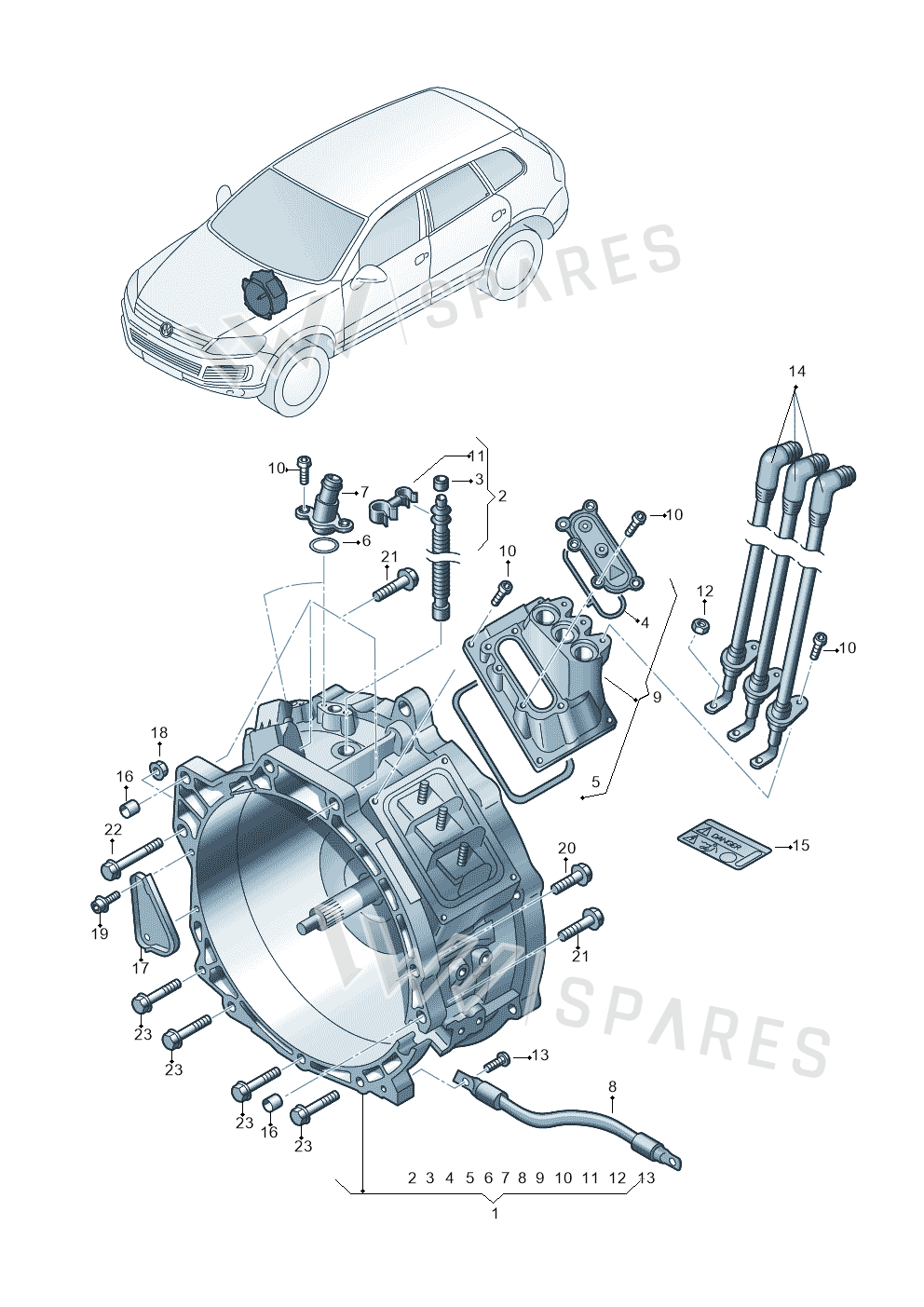

1 vehicleTraction Motor For Elec Drive — locate Traction Motor For Elec Drive in the official exploded view and explore the surrounding assembly.
Parts in this assembly23
- 1Traction M 7P0901153D
- 2Line 7P0301047
- 3Ap Cap For Venting The Gearbox Cap For Venting 014301485
- 4Seal 7P0901111
- 5Seal 7P0901112
- 6Seal Ring 7P0907447
- 7Connection 7P0901623
- 8Line 7P0971235D
- 9Repair Kit 7P0998152
- 10Bolt N10124306
- 11Bracket N10563801
- 12Collar Nut N10609201
- 13Bolt N91189601
- 14Part 7P0971013B
- 15Sign 12E010001B
- 16Sleeve 022103139B
- 17Cover 06E103648
- 18Ut Hexagon Flange Nut Self-locking Hexagon WHT002005
- 19Screw N10347003
- 20Screw N10565102
- 21Bolt N91030102
- 22Bolt N91105601
- 23Screw N91150701
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| touareg | 2010-2012 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Traction Motor For Elec Drive is fitted on: touareg 2010-2012.
